7.4 RECIPES
Recipes are used to avoid lengthy adjustment work when changing powder or work piece.
All parameters relevant for coating a work piece are combined and stored under a recipe
number instead.
If required, these can then be called up using the recipe buttons.
With the EPG-SPRINT X, a recipe comprises the following parameters:
Total air volume (feed and dosing air volume) [m³/h]
Powder quantity [%]
Atomizing air/Tribo air [m³/h]
High-voltage [kV]
Current limitation [µA]
U/I characteristic curve [Standard, medium, soft]

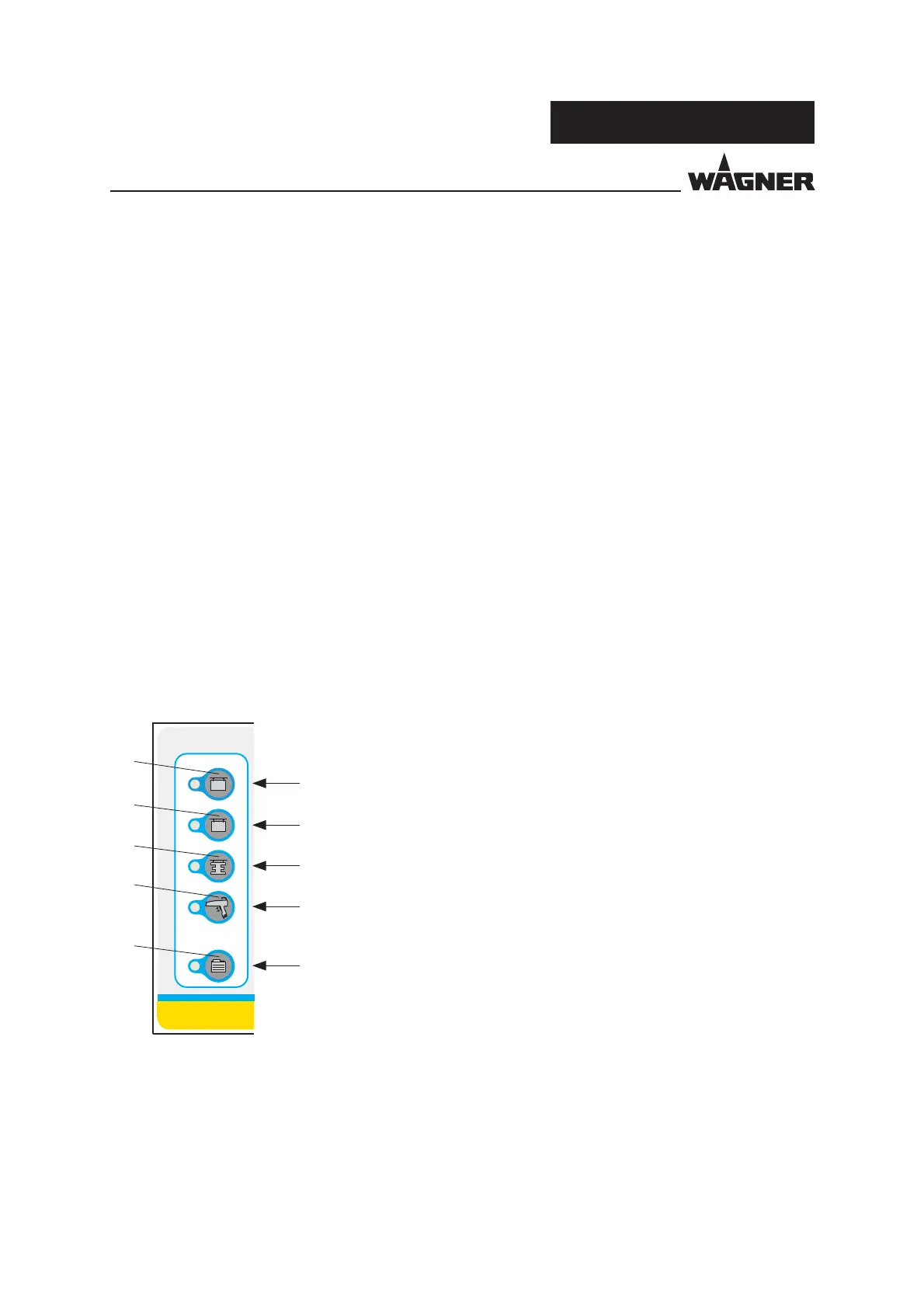

The EPG-SPRINT X control unit has 50 pre-de ned recipes. 4 of these can be selected
directly using buttons 5-8 and the remaining 46 by pressing the "Additional Recipes"
button 25 above the rotary controller 24. All recipes can be adapted and stored by the user
to suit individual requirements.
Recipe 1 for "Surface Parts": High powder quantity, high
powder charging
Recipe 2 for "Second Coating": Small powder quantity, low
powder charging
Recipe 3 for pro le parts: Medium powder quantity, low
powder charging
Recipe 4 for "Double Click Function": Individual setting,
activated by a double click on the manual gun or once this
button has been pressed
Recipe no. 5 to 50: Can be selected with the rotary controller24
after pressing the button
