OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371
A1 SETTING EXAMPLE: PARAMETER C11
This parameter is used to set the gun type (Tribo or Corona). The control unit is factory-set
to Corona.
Procedure:

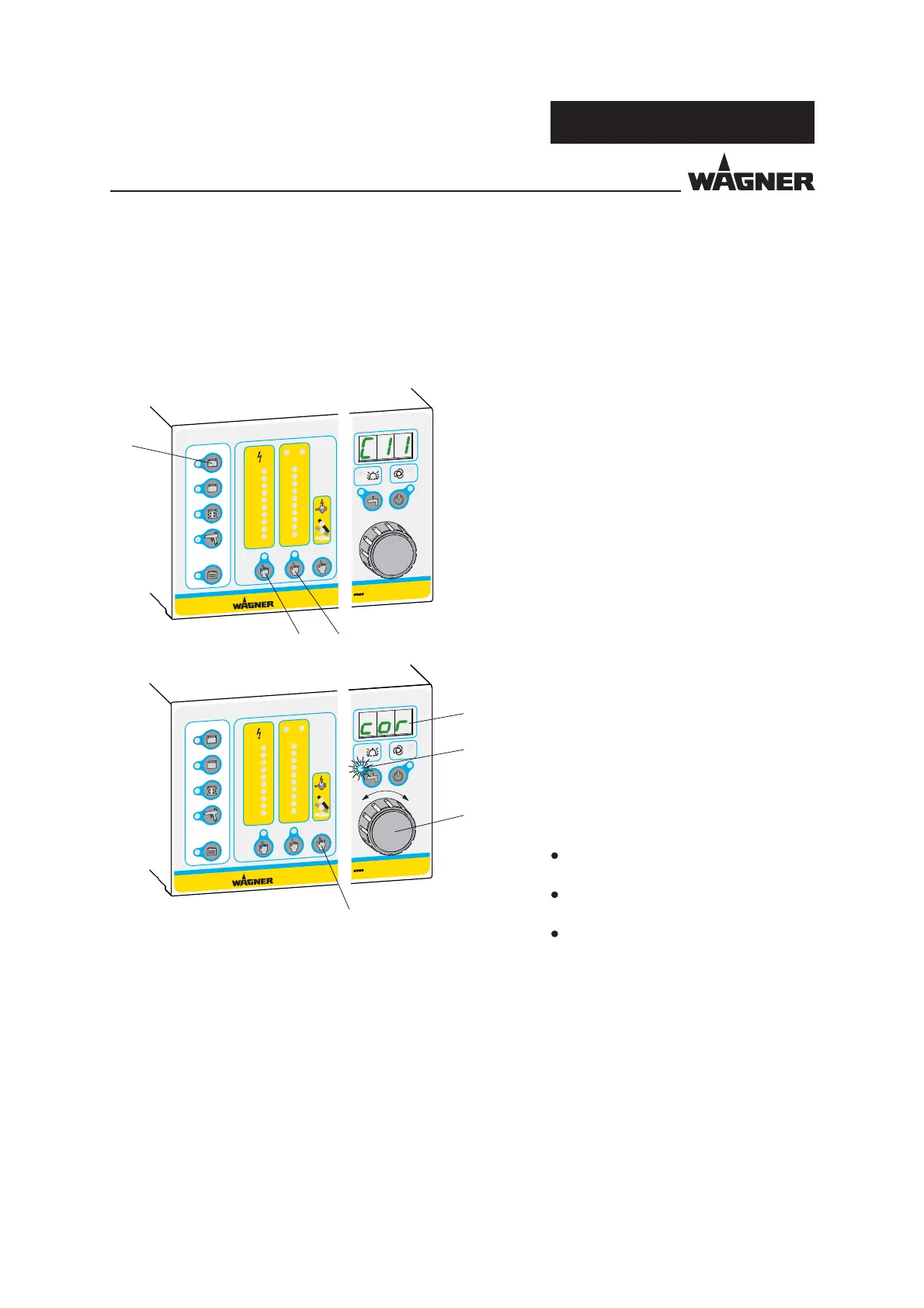

1. If parameter C11 is not set on the
control unit, select parameter group
1 by pressing recipe button 5 and use
the "High-voltage" button 27 or the
"Current Limitation" button 29 to set the
parameter to C11.
2. The parameter value is now shown
by pressing the "Characteristic Slope"
button 31.
3. The LED display 19 shows "cor". At the
same time, the blue "Purge" LED 18 will
 ash.
4. All setting options can then be viewed
in turn by turning the universal rotary
controller 24.
The display shows:
"cor" for Corona manual and
automatic guns
"tri" for Tribo manual and automatic
guns
"aut" for automatic switching from
Tribo to Corona, if the user frequently
switches between Tribo and Corona.
Limitation: A Corona spray gun is always
shown when the control unit is switched
on. A Tribo gun is only recognized when
the high-voltage and powder feed are
activated.
This setting is retained until the control
unit is switched o .
