OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371

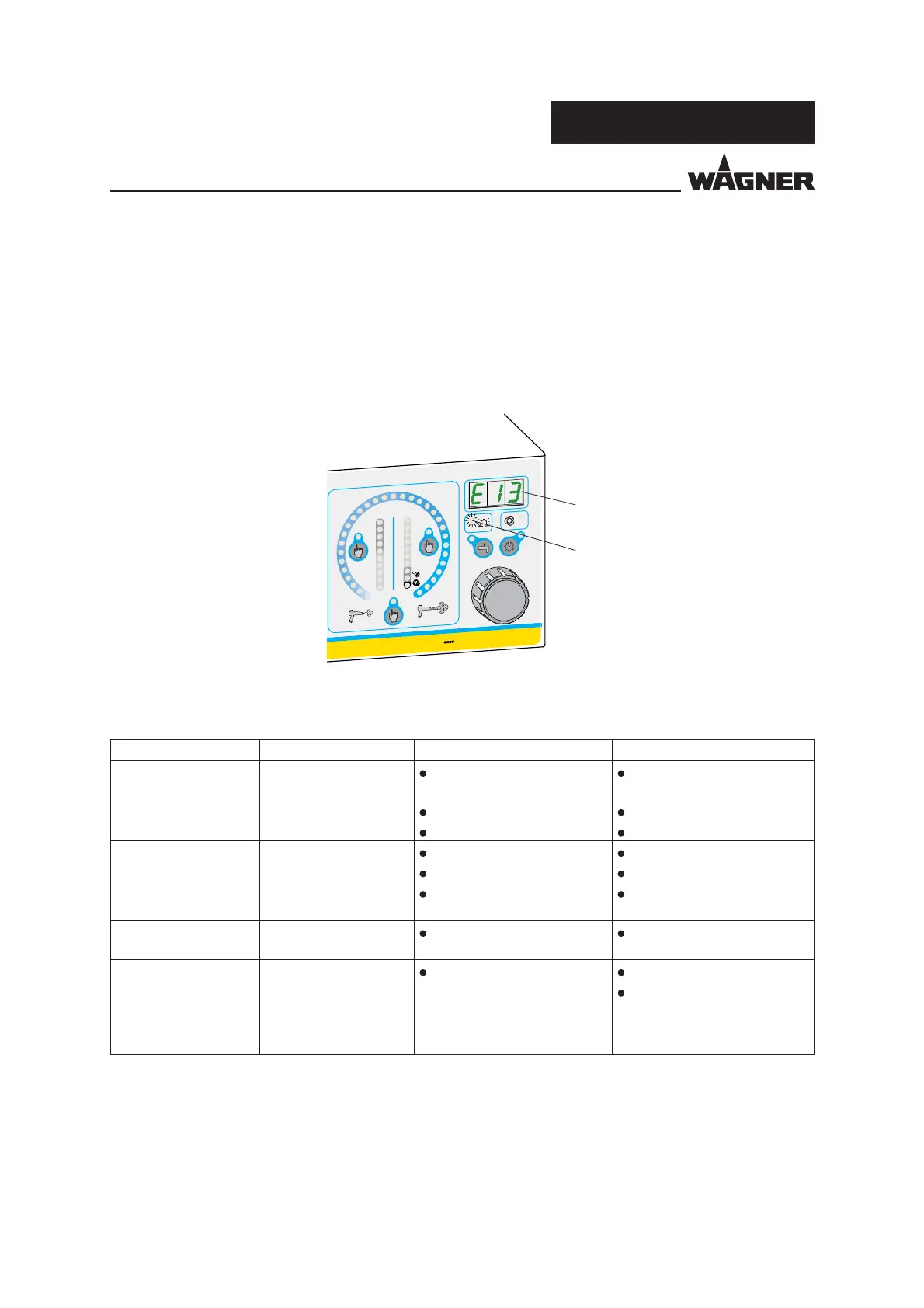

11.2 FAULTS
Faults are indicated by fault LED 13 lighting up. In addition, the error number "Exx" (xx
stands for the fault number) is shown in the LED display 19 (7-segment LED). If a fault
occurs, high-voltage, air, etc. is immediately switched o . Work can be continued only after
removing the fault and pressing any button.
Fault number Fault Cause Remedy
E11 Ground monitoring
Grounding cable is
interrupted
Check/replace gun cable
Check/replace gun
Gun is not connected Connect gun
E12 No coil current/
cascade interrupt
Gun is not connected Connect gun
Gun cable is interrupted Check/replace gun cable
Cascade in gun is
interrupted --> defective
Check/replace gun
E13 Coil current too big
Cascade of the connected
gun is defective
Check/replace gun
E14 Tribo current too high The Tribo current has
exceeded the upper limit
value of 12µA
ATEX guidelines do not
permit higher values.
Reduce Tribo air
Reduce powder quantity
