WAGNER EPG-Sprint X - Setting the U;I Characteristics

52
EPG-SPRINT X
P_01768
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
μA
P_01758
32
31
OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371

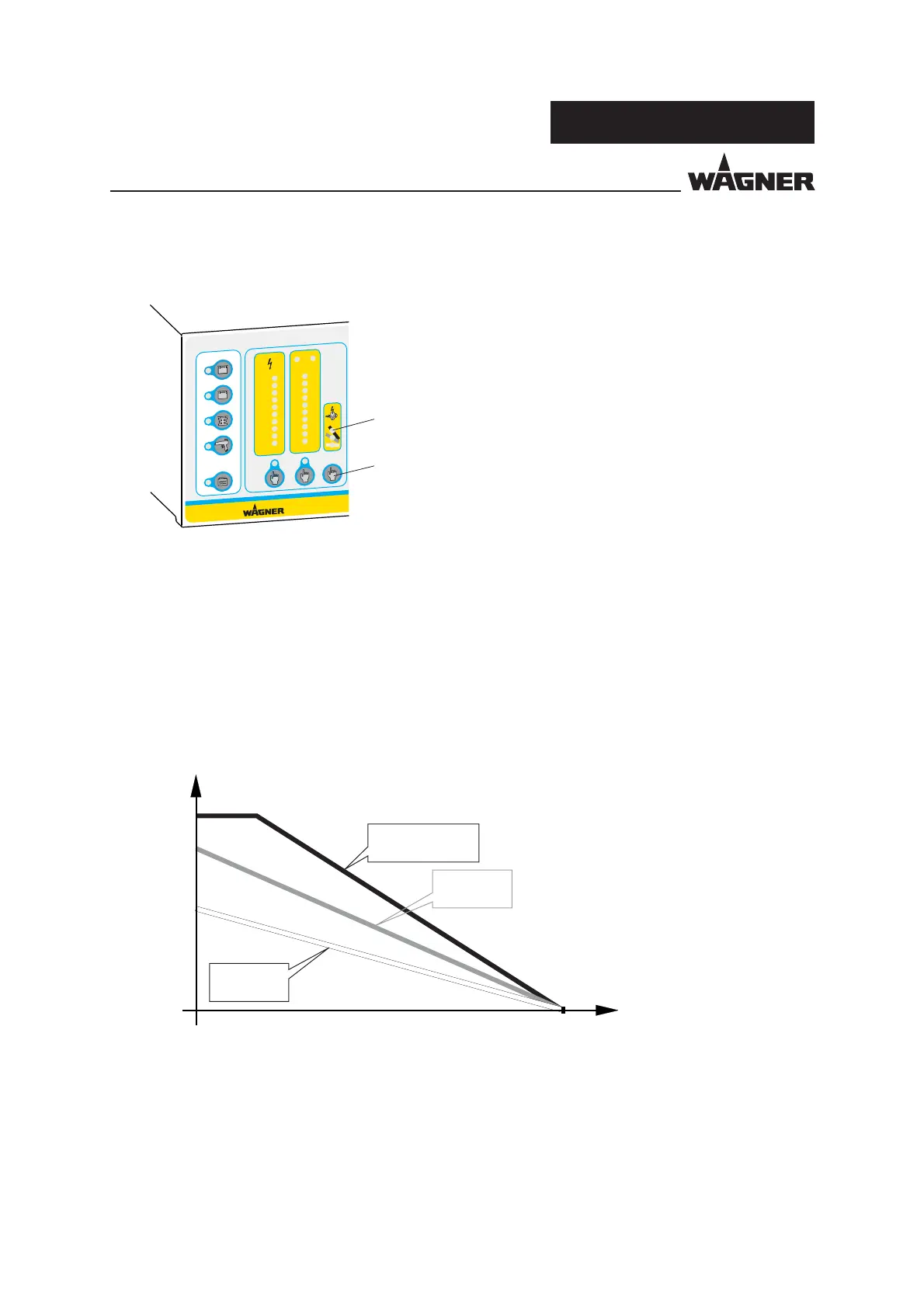

7.7.8 SETTING THE U/I CHARACTERISTICS
Procedure:
To change the characteristic slope, press the
"Characteristic Slope" button 31 once or twice until the
desired characteristic curve is shown in the "Characteristic
Slope" LED display 32.
U/I characteristics for EPG-SPRINT X
The user can choose from three characteristic curves to achieve optimum coating results.
These enable optimum electrostatic charging of the powder despite di erent powder
characteristics.
Standard
Medium
Soft
High-voltage [kV] 100 kV
Spray current [µA]
120 [µA]
The properties of the various characteristic curves and their use are described on the
following page.
