OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371
7.7.3 SETTING THE ADDITIONAL AIR ATOMIZING/IONIZING/TRIBO AIR VOLUME
The "Additional Air" bar graph display 35 can be found to the left of the "Additional Air"
button 21. When the control unit is in the ready position, this light strip shows the set point
as a dot and when powder feeding is switched on it shows the actual value as a bar.
Di erent amounts of air are required depending on the type or gun and/or nozzle. For the
correct settings, please refer to the operating manual for the relevant powder spray gun.
The additional air volume can be set to 0.05 - 4 m³/h as described above.
The additional air cannot be fully deactivated, therefore the spray gun always receives
minimal additional air.
Procedure:

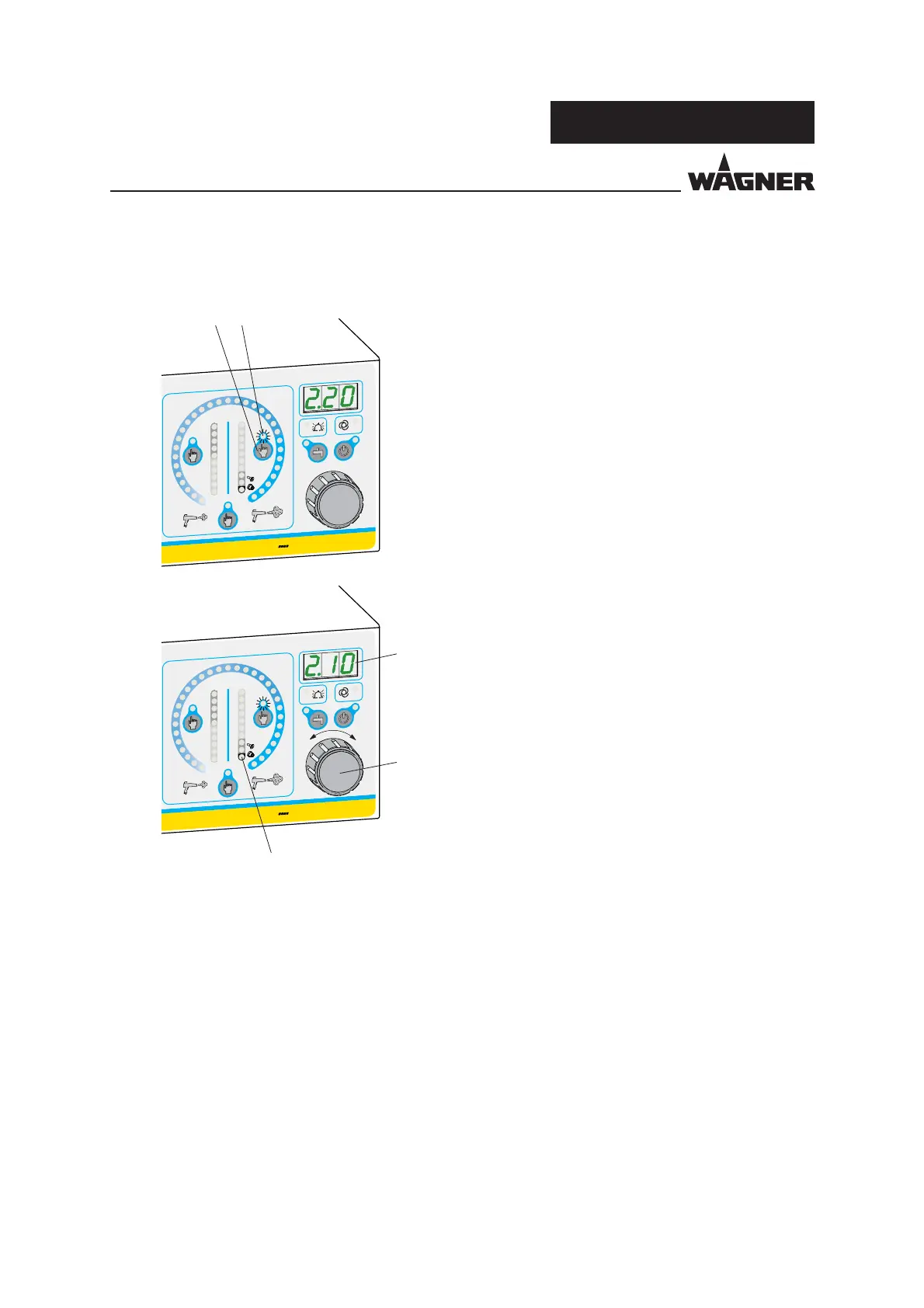

1. Press "Additional Air" button 21 to set the
additional air volume. Yellow LED23 indicates that
the additional air is selected.
2. The additional air volume can now be adjusted
using the universal rotary controller 24 between
0.05-4.0 m³/h with a resolution of 0.05 m³/h.
The value is shown in the LED display 19.
