OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371
BRIEF DESCRIPTION

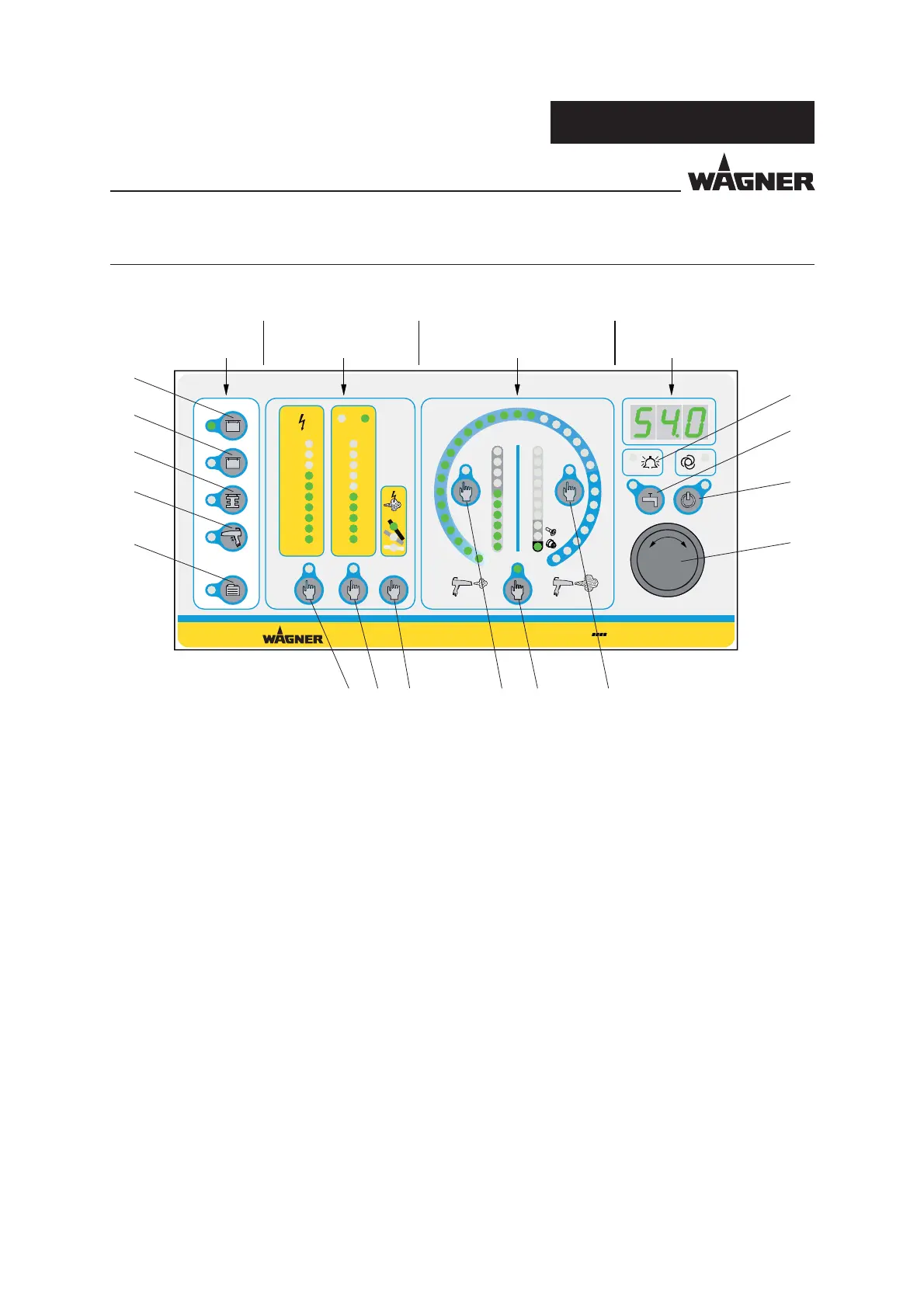

Operating elements
1 Button: "Standby" (for switching to standby mode)
2 Rotary controller (for selecting recipes and parameters)
3 Selection button: "Atomizing/Tribo Air" [m³/h]
4 Selection button: "Powder Quantity" [%]
5 Selection button: "Total Air Volume" [m³/h]
6 Selection button: "Characteristic Slope"
7 Selection button: "Current Limitation" [µA]
8 Selection button: "High-voltage" [kV]
9 Recipe button: "Surface Parts" (coating surface parts)
10 Recipe button: "Second Coating"
11 Recipe button: "Pro le Parts" (coating pro le parts)
12 Recipe button: "Double Click" (for rapid recipe changes without interrupting the coating
process, by simply double-clicking on the gun trigger)
13 Recipe button: "Additional Recipes 5-50"
14 Display LED: "Fault"
15 Button: "Purge" (for quick and easy cleaning of components carrying powder)
Recipes Electrostatic
parameters
Air parameters Selection/display
elements
