WAGNER EPG-Sprint X Operating Manual

50
EPG-SPRINT X
EPG
SPRINT X
0
%
100
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
μA
EPG
SPRINT X
0
%
100
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
μA
P_01756
2
19
24
29
30
OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371

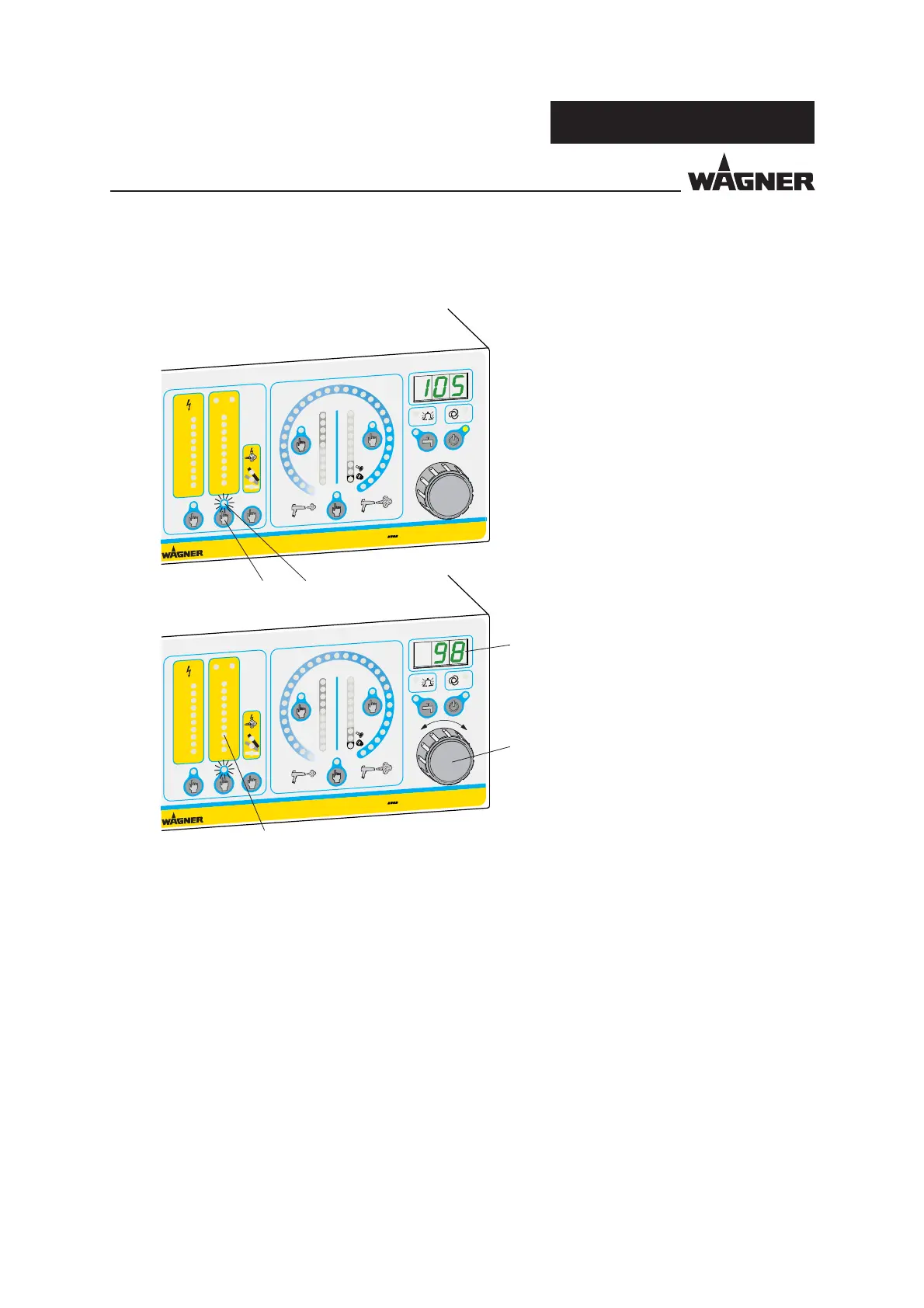

7.7.6 SETTING THE CURRENT LIMITATION
Above the "Current Limitation" button 29 is the "Current Limitation" bar graph display 2.
When the control unit is in the ready position, this display shows the set point as a dot and,
when high-voltage is switched on, it shows the actual value as a bar.
The current limitation is an adjustable threshold. If this threshold is exceeded, the
high-voltage is adjusted downwards until the threshold is no longer exceeded.
Procedure:
1. Press the "Current Limitation"
button 29 to adjust the limitation of
the spray current. The yellow LED30
indicates that current limitation is
selected.
2. The current limitation can now be
adjusted using the universal rotary
controller 24 between 5-120 µA
with a resolution of 1 µA. The value
is shown in the LED display 19.
