OPERATING MANUAL
VERSION 06/2014 ORDER NUMBER DOC2329371

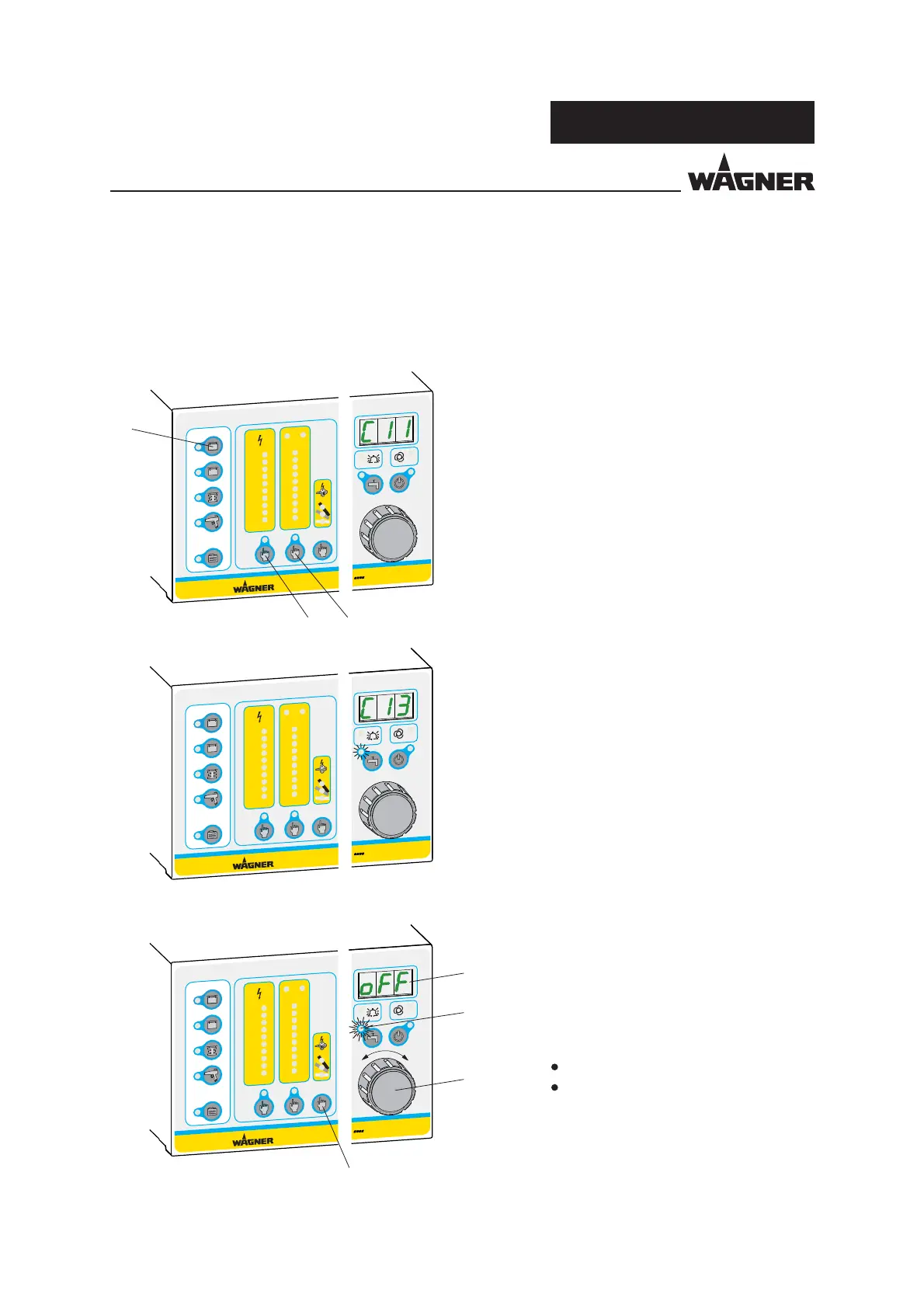

A2 SETTING EXAMPLE: PARAMETER C13
The lock is activated and deactivated with this parameter. The control unit is factory-set to
"OFF" (lock deactivated).
Procedure:
1. If parameter C13 is not set on the
control unit, select parameter group 1
by pressing recipe button 5 and use
the "High-voltage" button 27 or the
"Current Limitation" button 29 to set the
parameter to C13.
2. The parameter value is now shown
by pressing the "Characteristic Slope"
button 31.
3. The LED display 19 shows "o ". At the
same time, the blue "Purge" LED 18 will
 ash.
4. All setting options can then be viewed
in turn by turning the universal rotary
controller 24.
The display shows:
OFF with lock deactivated.
ON with lock activated.
No program values can be adjusted
when the lock is activated.
