WAGNER PEA-C4XL-S - Description of the Spray Gun

17
PEA-C4XL-S
B
C
A
F
G
H
X
X
P_02331
G
K
I
L
D
E
A
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334
5 DESCRIPTION

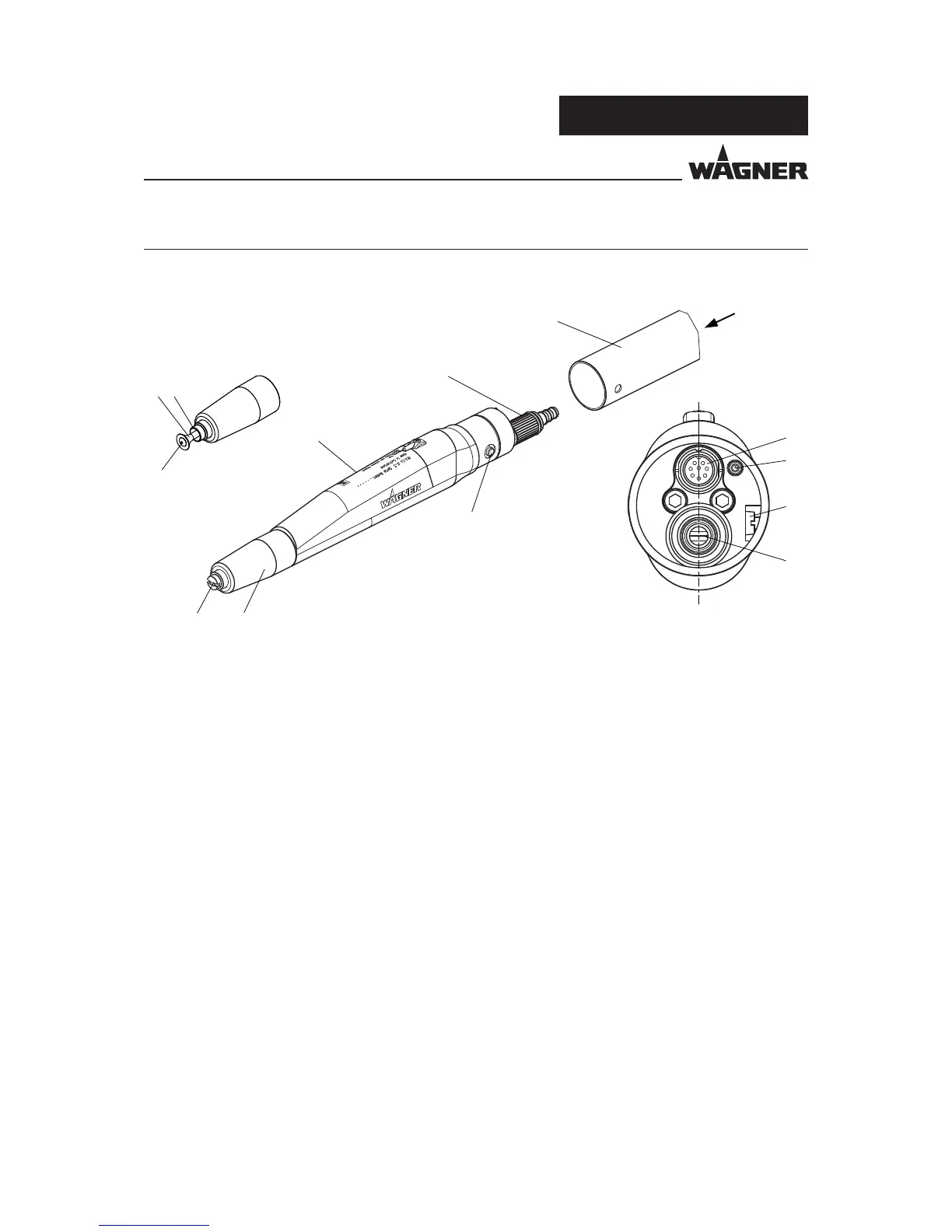

5.1 SPRAY GUN DESIGN
Designation
A Fan spray nozzle or round spray nozzle
BDe ector cone for round spray nozzle
C Round spray nozzle electrode
D Union nut
E Interlocking
F Spray gun body
G Powder hose connection
H Supporting tube
I Electrical connection
K Atomizing air connection
L Grounding screw
5.2 FUNCTIONING OF THE SPRAY GUN
The spray gun is switched on and o via the superordinated control unit.
At the same time the air supply and high-voltage are activated.
The distance of the installed spray guns to each other must be at least 300 mm; 11.81
inches for functional reasons.
The gun control cabinet must be switched o in order to lock the spray gun!
If changing from the  at spray nozzle to the round spray nozzle with de ector cone, the
depth control must be adjusted!
