WAGNER PEA-C4XL-S User Manual

48
PEA-C4XL-S
6
5
P_01616
4
2
1
4
56
4
6
5
7
3
2
1
P_01617
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

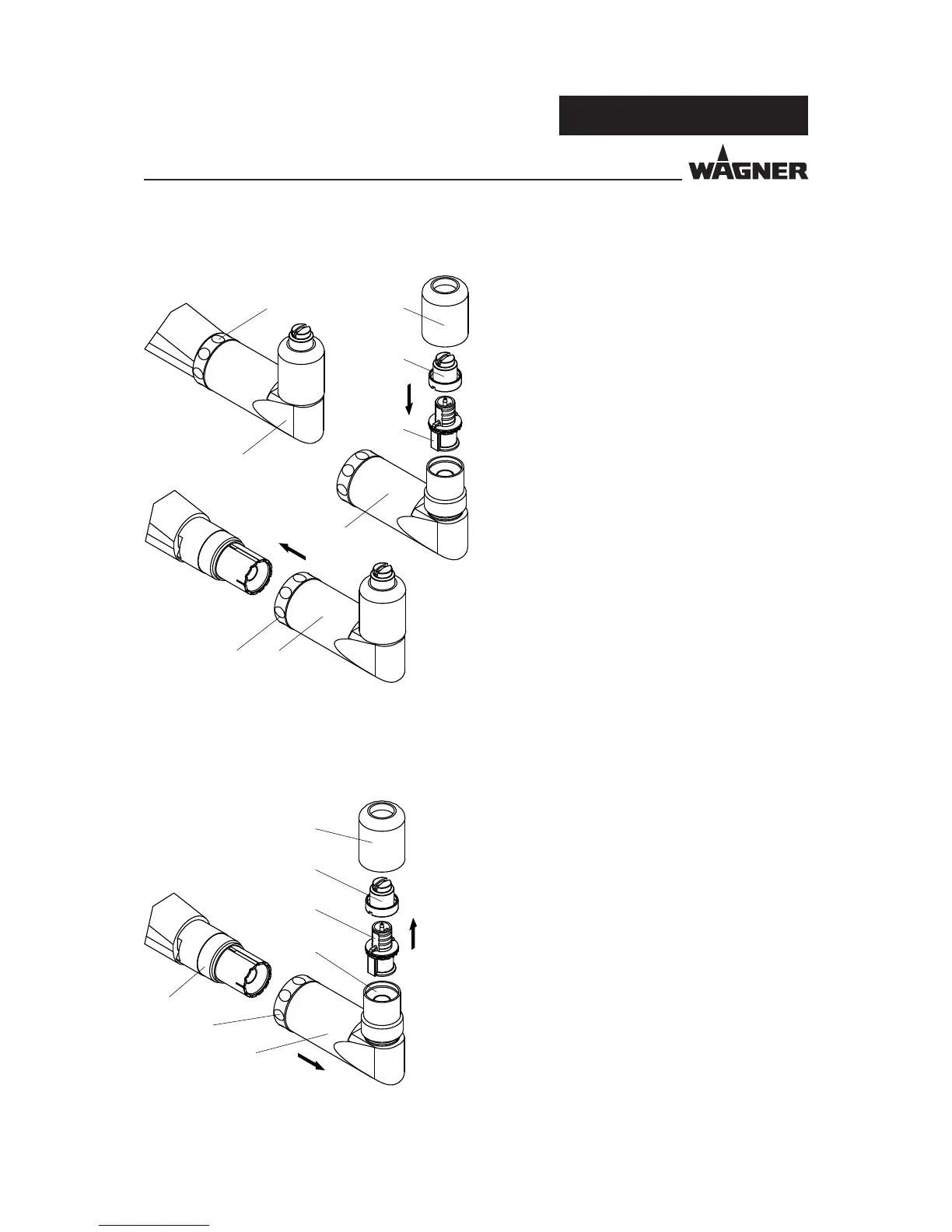

8.6.2 FITTING THE ANGLE ADAPTER
Procedure:
1. Install electrode holder 1 together with nozzle 2
in nozzle insert 3 and tighten union nut 4.
2. Push angle adapter 5 onto the gun body and
gently screw threaded sleeve 6.
3. Swivel angle adapter 5 into the desired position
and then tighten threaded sleeve 6 well.
8.6.3 REPLACEMENT OF THE WEARING PARTS
Procedure:
1. Loosen threaded sleeve 1 and separate angle
adapter 2 from gun body 3.
2. Loosen union nut 4.
3. Pull out electrode holder 5, together with
nozzle 6, from nozzle insert 7.
Note:
Do not damage the electrode holder, when pulling it
out and inserting it.
