OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

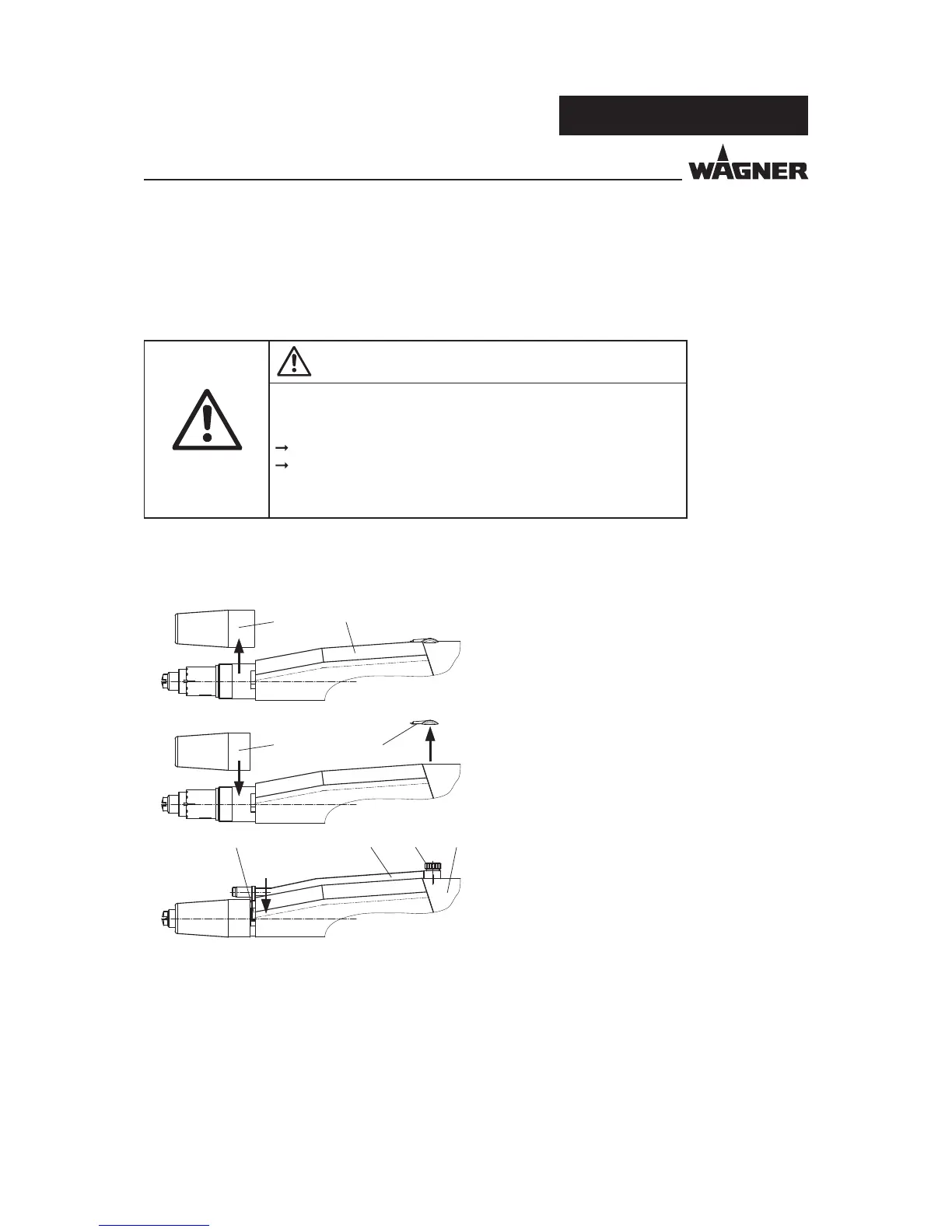

8.7 ASSEMBLING THE CORONASTAR
The Corona-Star is a retro t set for the spray gun, which helps to achieve a better surface
quality (reduction of "orange peel").
Procedure:
1. Switch o the high-voltage and the powder
feed and secure them against being
inadvertently switched on.
2. Unscrew the standard nut A from the spray
gun housing B.
3. Screw the new nut C for the Corona-Star D
onto the spray gun housing and tighten well.
4. Dismount the Corona-Star H from spray gun
housing B.
5. Fasten the cable guide onto the cover plate F
using screw E.
6. Slide the Corona-Star G onto the spray gun
housing B.
Note:
Check whether the grounding is assured.
7. The spray gun is ready for use again.
Danger from electric current!
Risk of injury and damage to the device.
Only trained personnel may modify the Corona-Star.
Prior to assembling the Corona-Star, the high-voltage and the
powder feed must be switched o and secured against being
inadvertently switched on.
WARNING
