OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

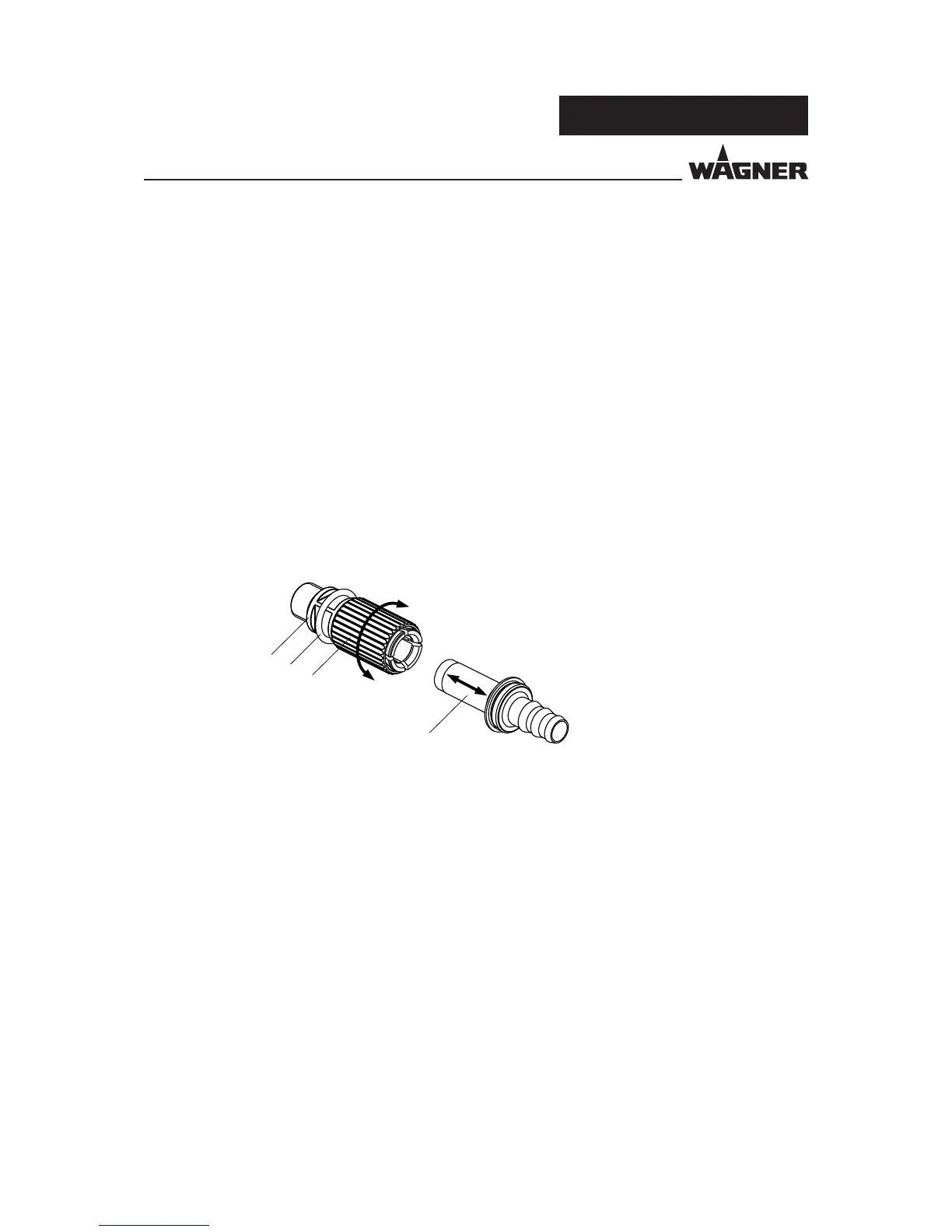

6.5 HANDLING OF THE HOSE COUPLING
Loosening the hose coupling:
1. Lift the O-ring 1 out of the groove and slide it towards spray gun.
2. Turning the locking nut 2 in a clockwise direction up to the stop and pull the hose
coupling 3 out of the coupling piece 4.
Connecting the hose coupling:
3. Insert the hose coupling 3 into the coupling piece 4 and turning the locking nut 2
counterclockwise up to the stop.
4. Press the O-ring 1 into the groove again (securing function).
Note:
Slide the powder hose as much as possible up to the stop onto the hose coupling!
