WAGNER PEA-C4XL-S User Manual

66
PEA-C4XL-S
2
13
3
P_02336
4
5
1
9
6
7
10
11
12
8
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

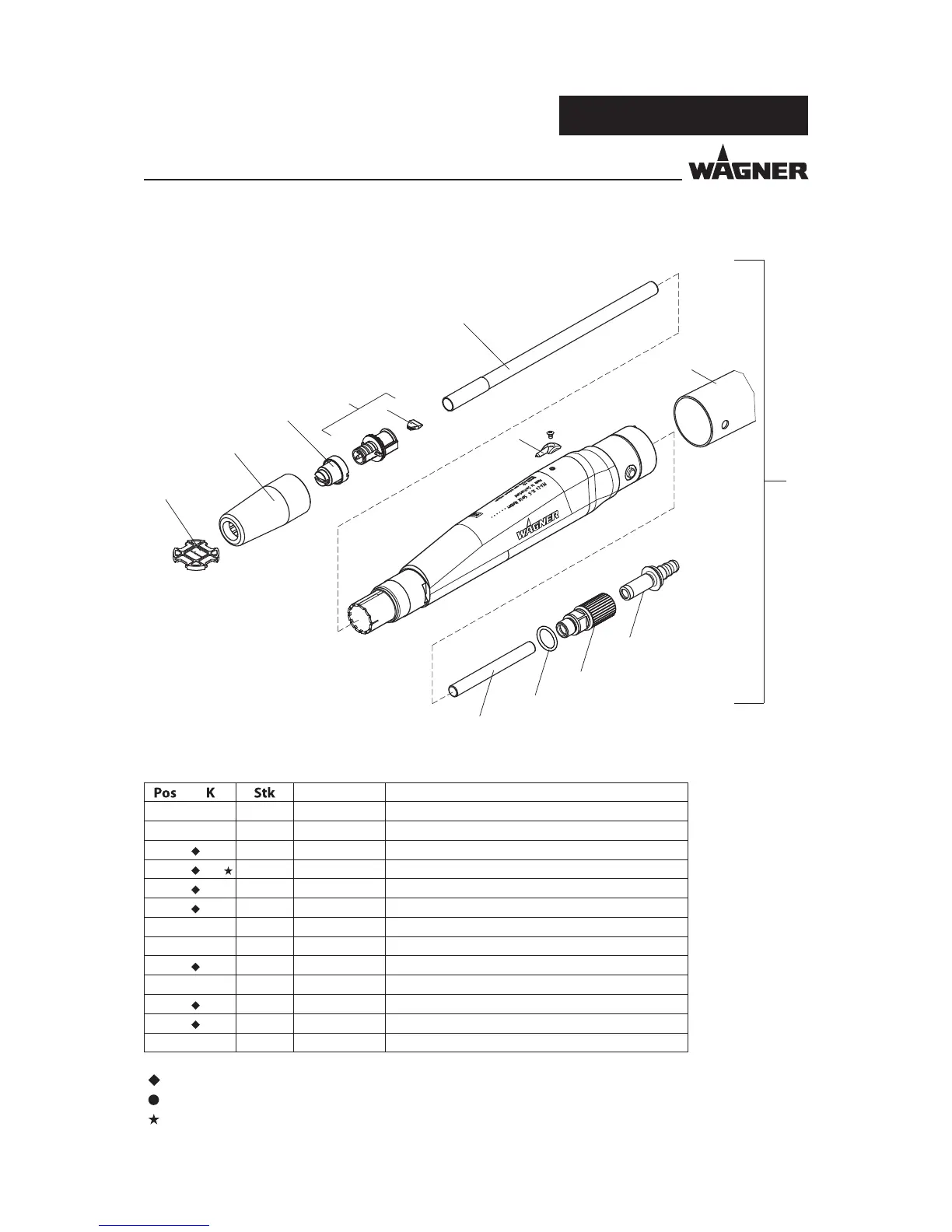

13.2 PEAC4XLS CORONA AUTOMATIC GUN
PEA-C4XL-S automatic gun
Order No. Designation
1 1 2344249 PEA-C4XL-S Corona automatic gun
2 1 390311 Union nut
3
1 390324 Flat spray nozzle F1
4
1 390915 Electrode holder
5 1 390310 Wedge
6 1 390911 Powder tube, C4 ET
7 1 390957 Mini Corona-Star
8 1 2345327 XL-S ET supporting tube
9
1 2344114 Rear powder tube
10 1 9971131 O-ring, 22x3
11
1 390954 Coupling piece
12
1 390955 Hose take-up, D10-D12
13 1 390342 Adjustment tool for  at spray nozzles
Wearing parts
Not part of the standard equipment but available as a special accessory
Only available as a set
