22
PEA-C4XL-S
P_00694
P_00694
P_00694
P_00694
P_00935
P_00694
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

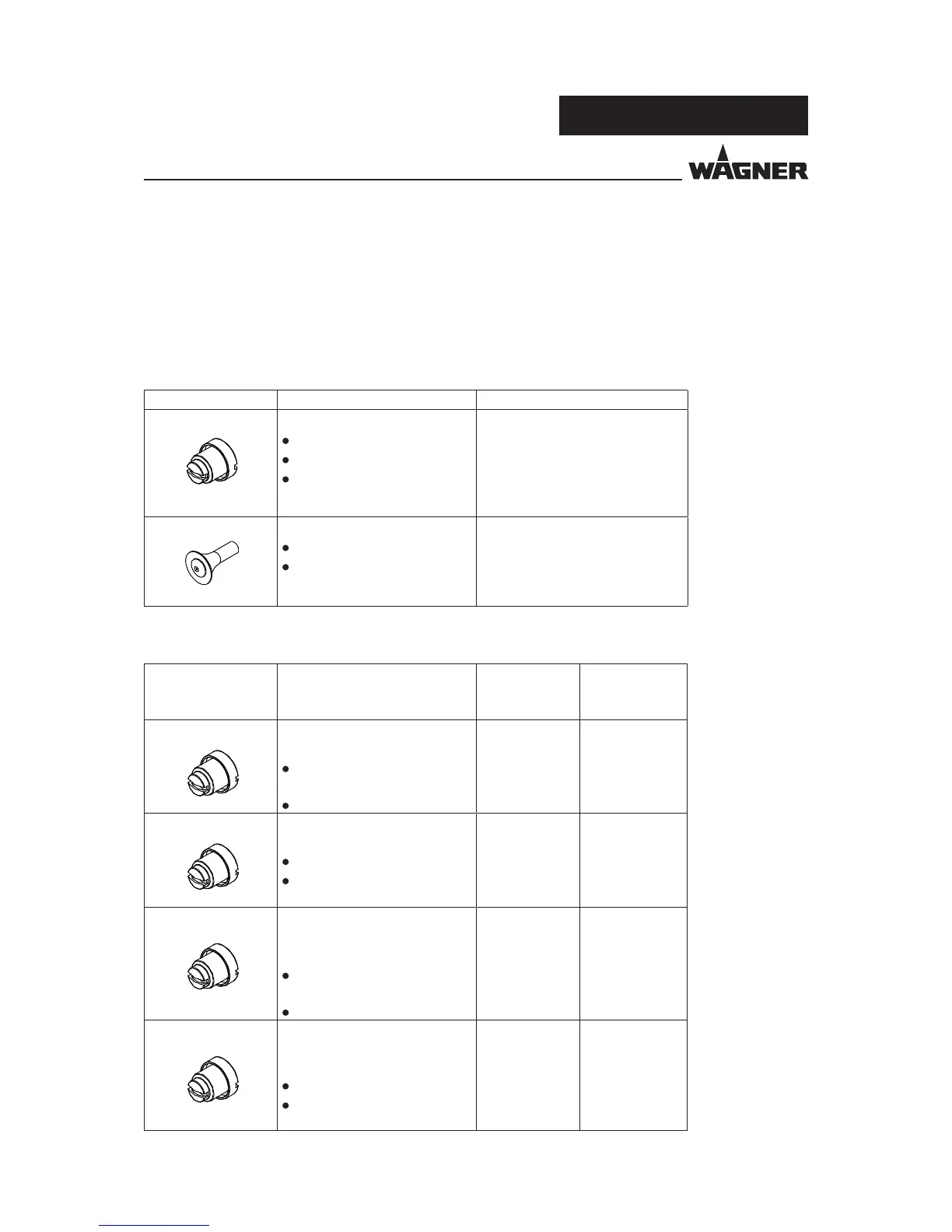

6.4 PREPARING THE SPRAY GUN
6.4.1 SELECTION OF THE SUITABLE NOZZLE SYSTEM
Nozzle Application Distance to
work piece
Powder
discharge
(mm) (g/min)
F1¹ Universal application (slow
powder cloud)
120 … 300 50 … 250
deep and complex part
geometries
extensive work pieces
F2¹ Targeted application (dense
powder cloud)
120 … 400 30 … 200
high penetration
Wide coating range
F3¹ for small total air volume and
small jet width
120 … 300 ≤ 180
(fastest powder cloud)
high penetration capability
for pro le parts
high stability
F4¹ Wide  at spray nozzle for high
powder application (slow
powder cloud)
> 200
(Total air >
4.5 Nm³/h)
150 … 400
good atomization
specially for extensive work
pieces
The process of changing from the fan spray nozzle to a round spray nozzle with a de ector
cone is described in Chapter 8.5 "Fitting a Round Spray Nozzle".
You will  nd the article numbers of the di erent nozzles in Chapter 12 "Accessories".
Nozzle Application overview Powder cloud
Flat jet nozzle Di cult work pieces
Widely spread  at powder cloud
Undercuts
Pro les
Flat work pieces (reduced
picture frame)
De ector cone
Oval powder cloud:
Size of the powder cloud is
dependent on the de ector plate
diameter
Wire goods
Grid designs
