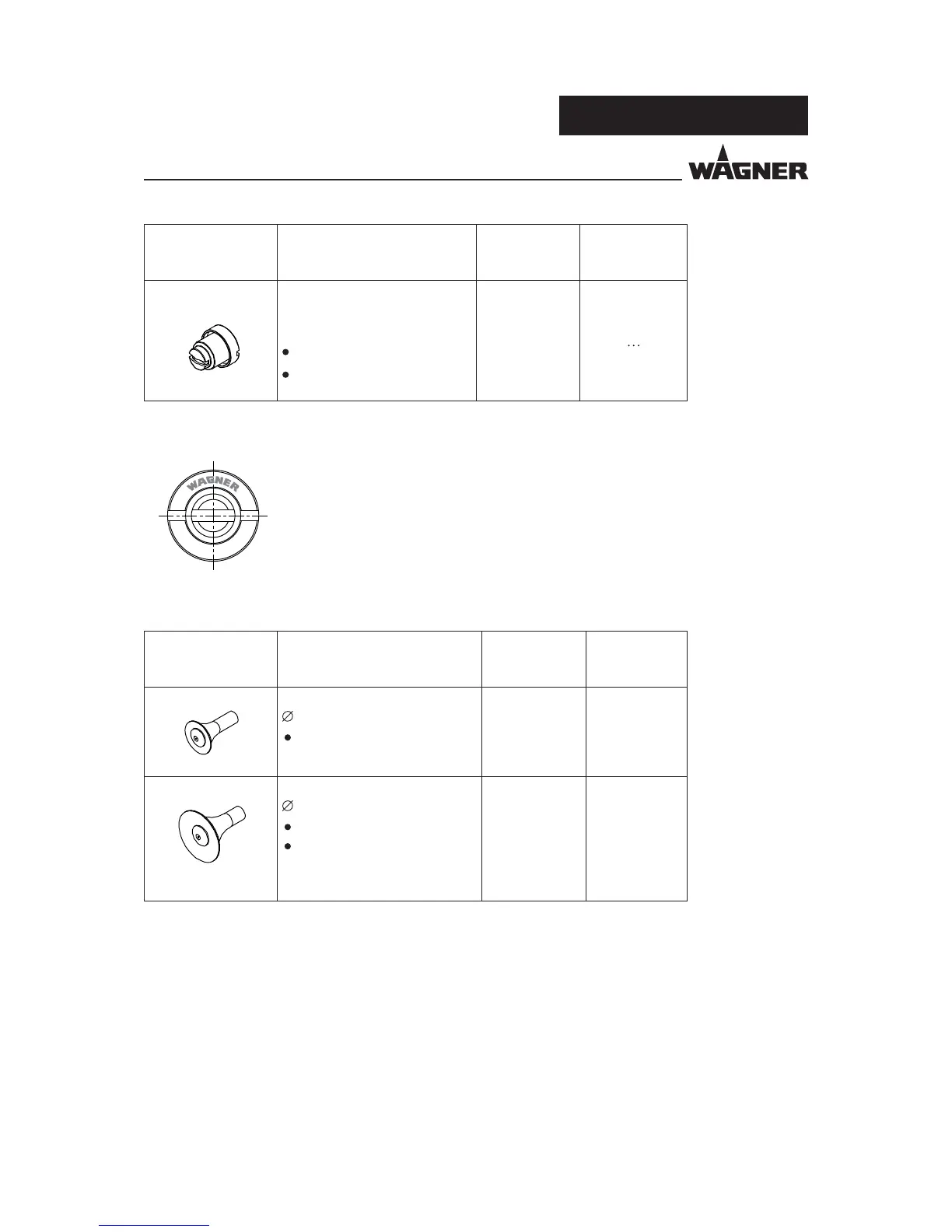

OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334
Nozzle Application Distance to
work piece
Powder
discharge
(mm) (g/min)
HPO-1¹ Wide  at spray nozzle for high
powder application (slow
powder cloud)
> 200
(Total air >
4.5 Nm³/h)
150
400
good atomization
specially for extensive work
pieces
1.) Nozzles are labeled on the back.
De ector cone Application Distance to
work piece
Powder
discharge
(mm) (g/min)
R20
100 … 300 30 … 250
20 mm
Smaller  at parts
R28
100 … 300 50 … 250
28 mm
Medium sized  at parts
Lateral application with
Z-axis
