WAGNER PEA-C4XL-S User Manual

43
PEA-C4XL-S
2
3
1
P_00594
3
2
1
P_00595
3
1
2
P_00596
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

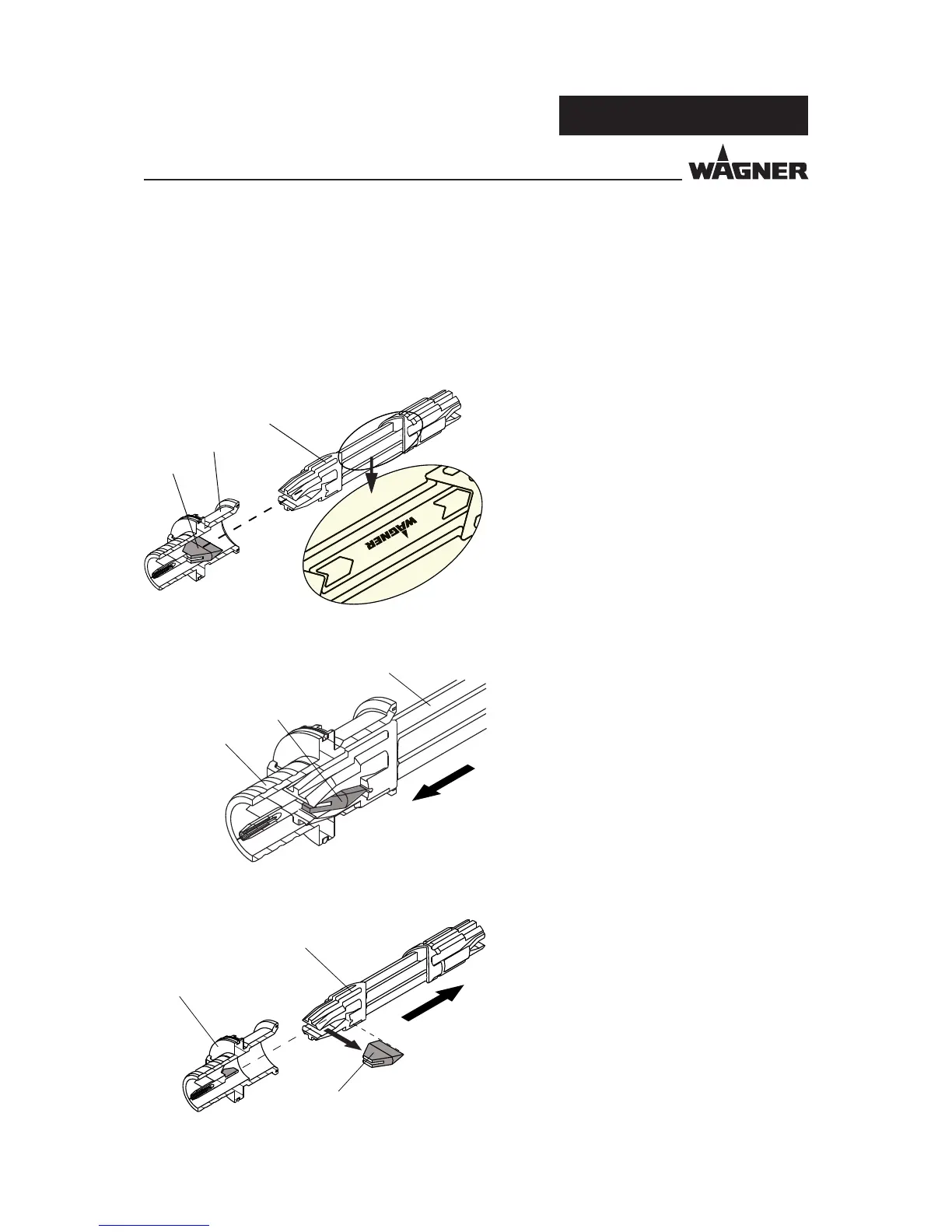

8.4 REPLACING THE PROTECTIVE WEDGE
1 Wedge tool
2 Protective wedge (when positioned)
3 Electrode holder (shown with a cut-
away view to improve comprehension)
Procedure:
1. Guide wedge tool 1 into electrode
holder 3 up to stop.
2. Pull the protective wedge 2 out of the
electrode holder 3 using the wedge
tool 1.
3. Press the protective wedge 2 sideways
out of wedge tool 1 manually (without
tool).
Note:
A wedge tool is available to prevent the protective wedge from being damaged when
dismantling and inserting.
You will  nd the necessary wearing parts and spare parts in Chapter 13 "Spare Parts" of this
operating manual.
