WAGNER PEA-C4XL-S User Manual

51
PEA-C4XL-S
P_02334
1
2
3
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

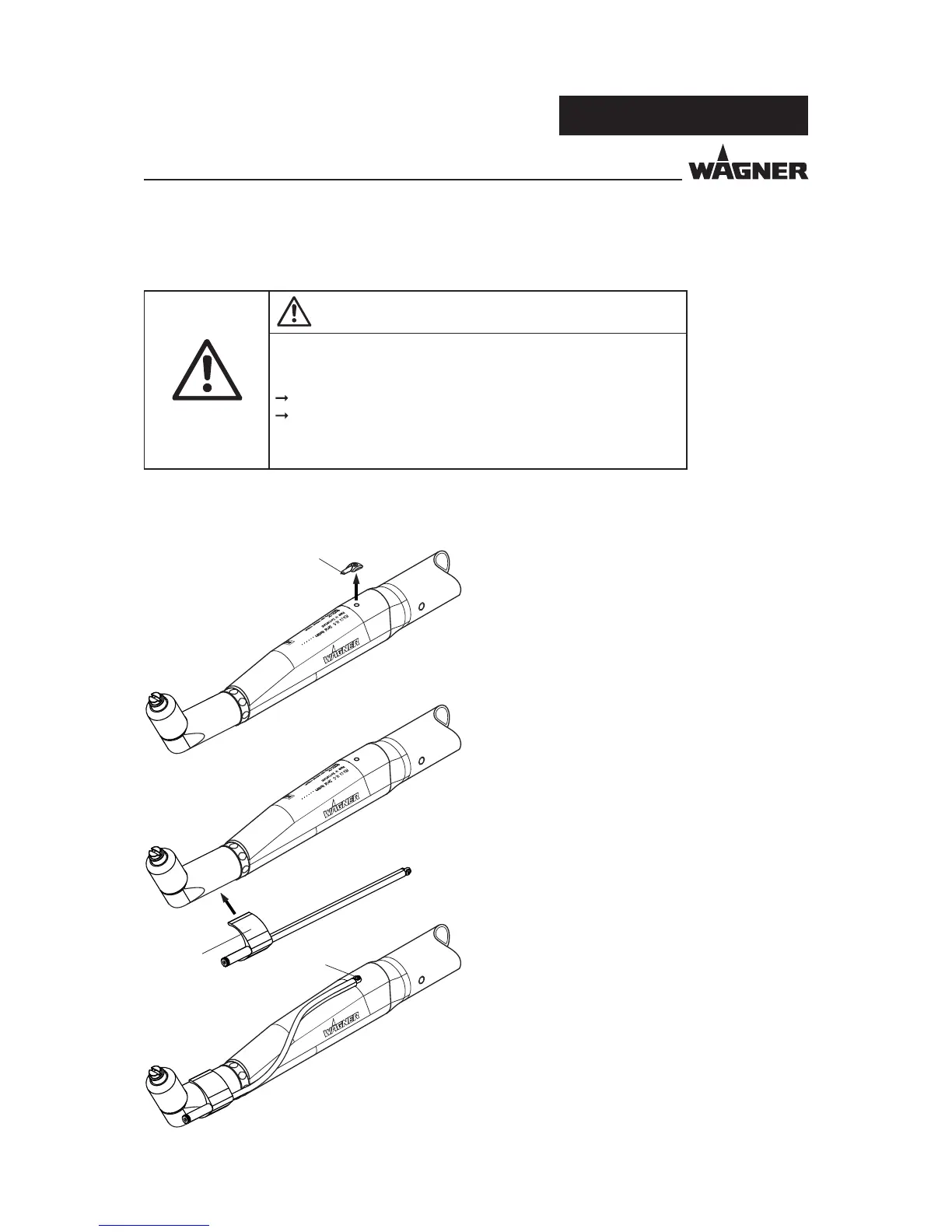

8.8 CORONASTAR FOR ANGLE ADAPTER
8.8.1 ASSEMBLING THE CORONASTAR
Procedure:
1. Switch o the high-voltage and the powder
feed and secure them against being
inadvertently switched on.
2. Detach the Corona-Star 1 from spray gun
housing.
3. Fit Corona Star for angle adapter 2 on angle
adapter (direction of  tting shown is only an
example).
4. Fasten the connection cable 3 on the spray
gun housing.
Note:
Check whether the grounding is assured.
5. The spray gun is ready for use again.
Note:
When converting the gun in the normal version,  t
again without a Mini Corona-Star 1 angle adapter.
Danger from electric current!
Risk of injury and damage to the device.
Only trained personnel may modify the Corona-Star.
Prior to assembling the Corona-Star, the high-voltage and the
powder feed must be switched o and secured against being
inadvertently switched on.
WARNING
