35
PEA-C4XL-S
30°
15°
X
X
P_01095
P_01096
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

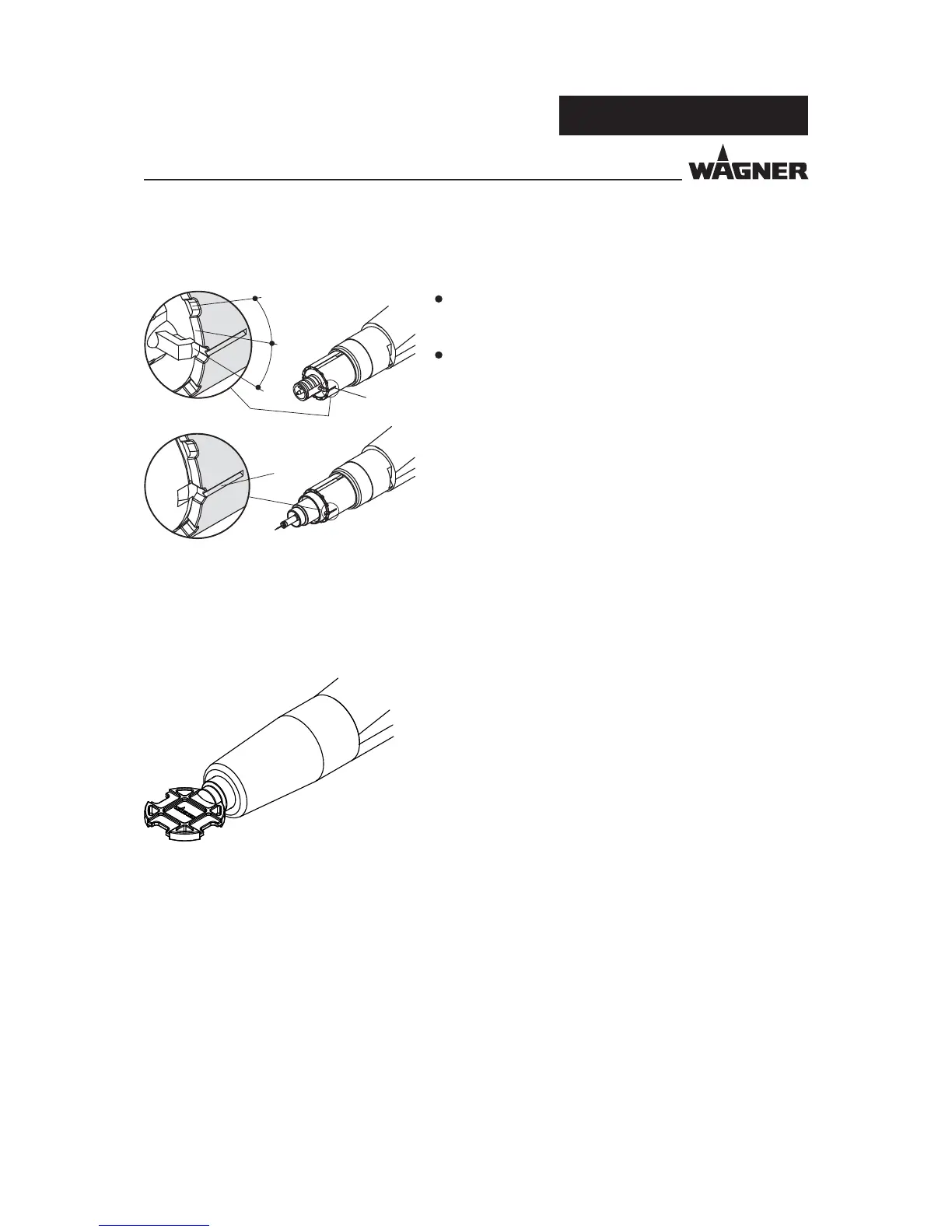

7.8 REPRODUCIBLE SETTING OF THE NOZZLE POSITION
For a horizontal powder cloud, the
at spray nozzle is set where the
protective wedge is in the 0° position.
When attaching a round spray nozzle,
we recommend turning the protective
wedge to the 90° position to achieve
smoother coating (the protective
wedge is now in the vertical position).
It is possible to change this position as
needed for special applications.
On the nozzle body and electrode holders
there are X markings. The position can be
changed as required in 15° increments and
later reproduced.
The union nut has to be removed for exact
positioning.
An adjustment tool is provided for the  at
spray nozzle.
It permits turning the  at spray nozzle
without damaging the electrodes and
without removing the union nut.
The union nut only has to be slackened.
