42
PEA-C4XL-S
1
2
3
5
P_00591
P_00592
P_00593
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

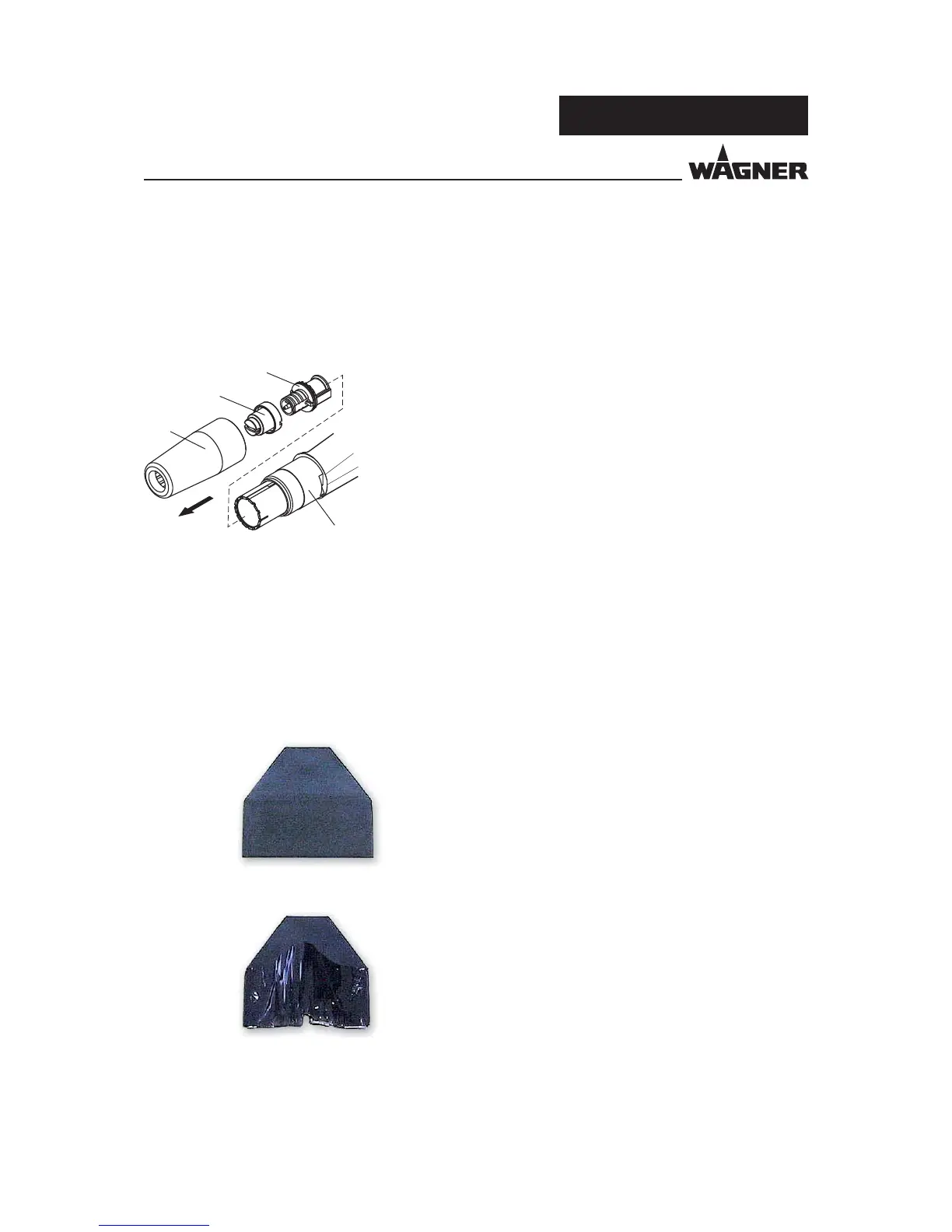

8.3 CLEANING THE GUN AND DISMANTLING THE FLAT SPRAY NOZZLE
Procedure:
1. Unscrew union nut 1 from gun housing 5.
2. Pull at spray nozzle 2 o electrode holder 3.
3. Carefully remove electrode holder 3 from gun housing 5.
Note:
Do not damage the electrode holder, when pulling it out and
inserting it.
4. Remove powder residues from the parts removed and from
the spray gun.
Note:
Never place the spray gun or parts of the spray gun in cleaning
agent.
As a rule the protective wedge needs to be checked for wear and
replaced if necessary.
New protective wedge
Worn protective wedge
It is recommended to replace the protective wedge.
In the next section it is described how the protective wedge is to be dismantled and
inserted.
