44
PEA-C4XL-S
3
2
1
P_00597
3
1
2
Y
X
P_00598
Y
X
P_00599
OPERATING MANUAL
VERSION 03/2014 ORDER NUMBER DOC2345334

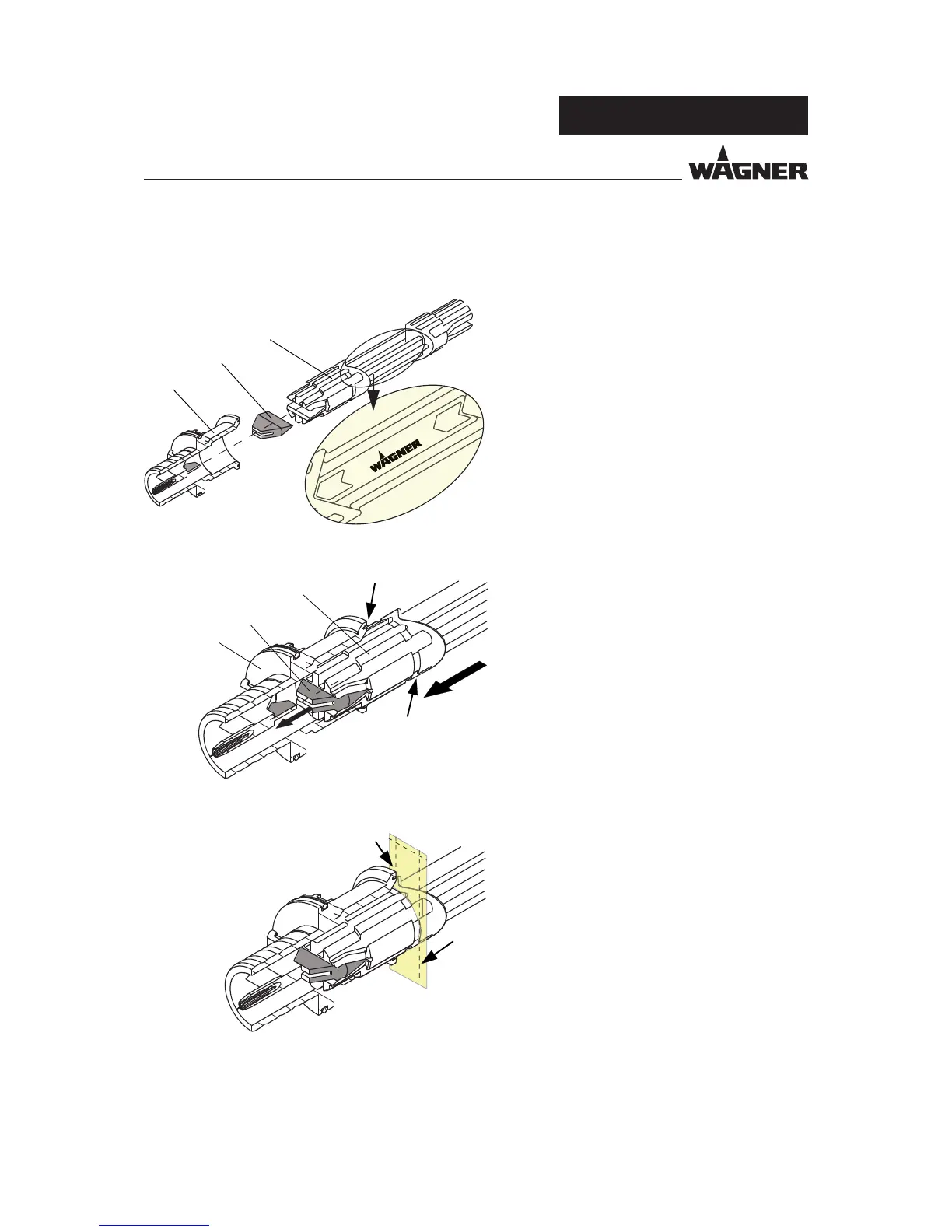

Procedure:
1. Guide protective wedge 2 into wedge
tool 1.
2. Insert both parts into opening on
electrode holder up to stop.
3. If it is not possible to push the wedge
tool in as far as the X mark, rotate
the wedge tool a little until it can be
pushed up to the mark.
The mark X must be  ush with the Y
end of the electrode holder.
4. The protective wedge is now correctly
assembled and the wedge tool can be
pulled out of the electrode holder.
The protective wedge remains inserted
in the electrode holder.
Note:
The same wedge tool is used to insert the protective wedge.
1 Wedge tool
2 Protective wedge (when positioned)
3 Electrode holder (shown with a cut-
away view to improve comprehension)
