Wascomat Clarus Control SU620 - Error Codes

160

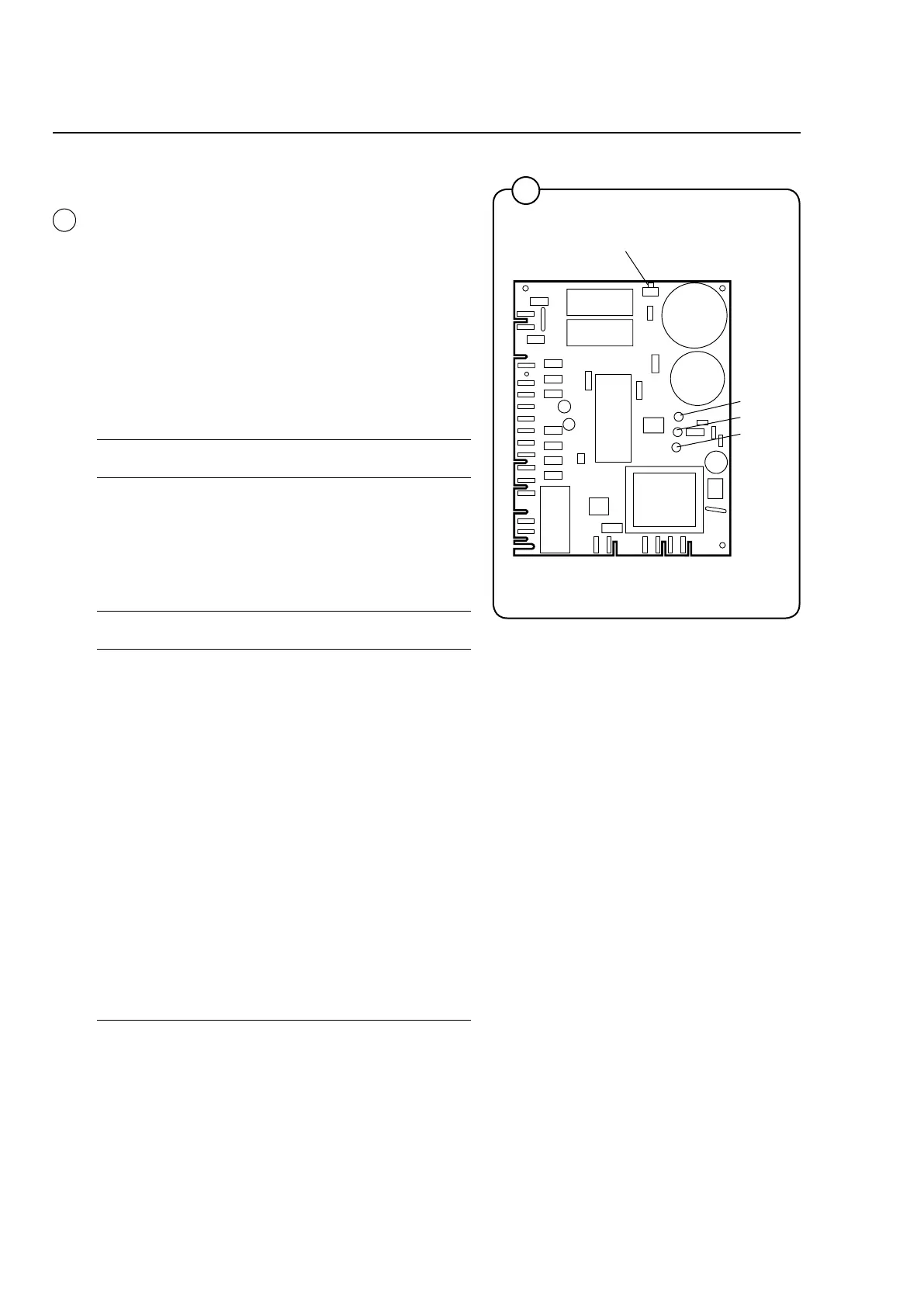

Door and door lock
5928
5
5
LEDs
A
B
C
Reset button
Error codes
The door lock control has three LEDs that show
whether the door lock operates normally or
whether an error has been detected. During
normal operation, the LEDs blink when the drum
is not turning and are off when the drum rotates.
In case of an error, the three LEDs will show the
error condition according to the table below. Any
error codes are automatically cleared 5 minutes
after the error has been remedied. In case the
error occurred at the end of the programme, the
door also unlocks after 5 minutes.
LEDs Normal operation
A B C
l l l No error. The drum is not turning
(no water in drum) (– – –)
l l l Level switch B2 indicates water in
drum
whendrumisstand-still(– – – – – –)
m m m No error. The drum is rotating
LEDs Error state
A B C
l l m Level guard B2 indicates water in
drum when the door lock is open
(input X93 open).
m l l Motor control indicates that motor
is operating when door lock is open
(input X94 closed).
l m m No signal from rotation sensor B3
(frequencyinputX95<3Hz)inspite
of the motor control indicating motor
operation.
m l m No signal from motor control (input
X94 open) in spite of rotation sensor
B3 indicating motor operation
(frequencyinputX95>3Hz).
l m l Error in drive circuits for door lock
(output X96) or error in door lock/cable
harness for the door lock.
m m l Internal error in the door lock control.
m=nolit,l=lit
