Wascomat Clarus Control SU620 - Troubleshooting the Keypad in the Display Unit

73
Key Outputs that should close
1 2 + 7
2 2 + 6
3 2 + 5
4 3 + 7
5 3 + 6
6 3 + 5
7 4 + 7
8 4 + 6
9 4 + 5
0 5 + 8
A 6 + 8
B 1 + 2
C 1 + 3
D 7 + 8

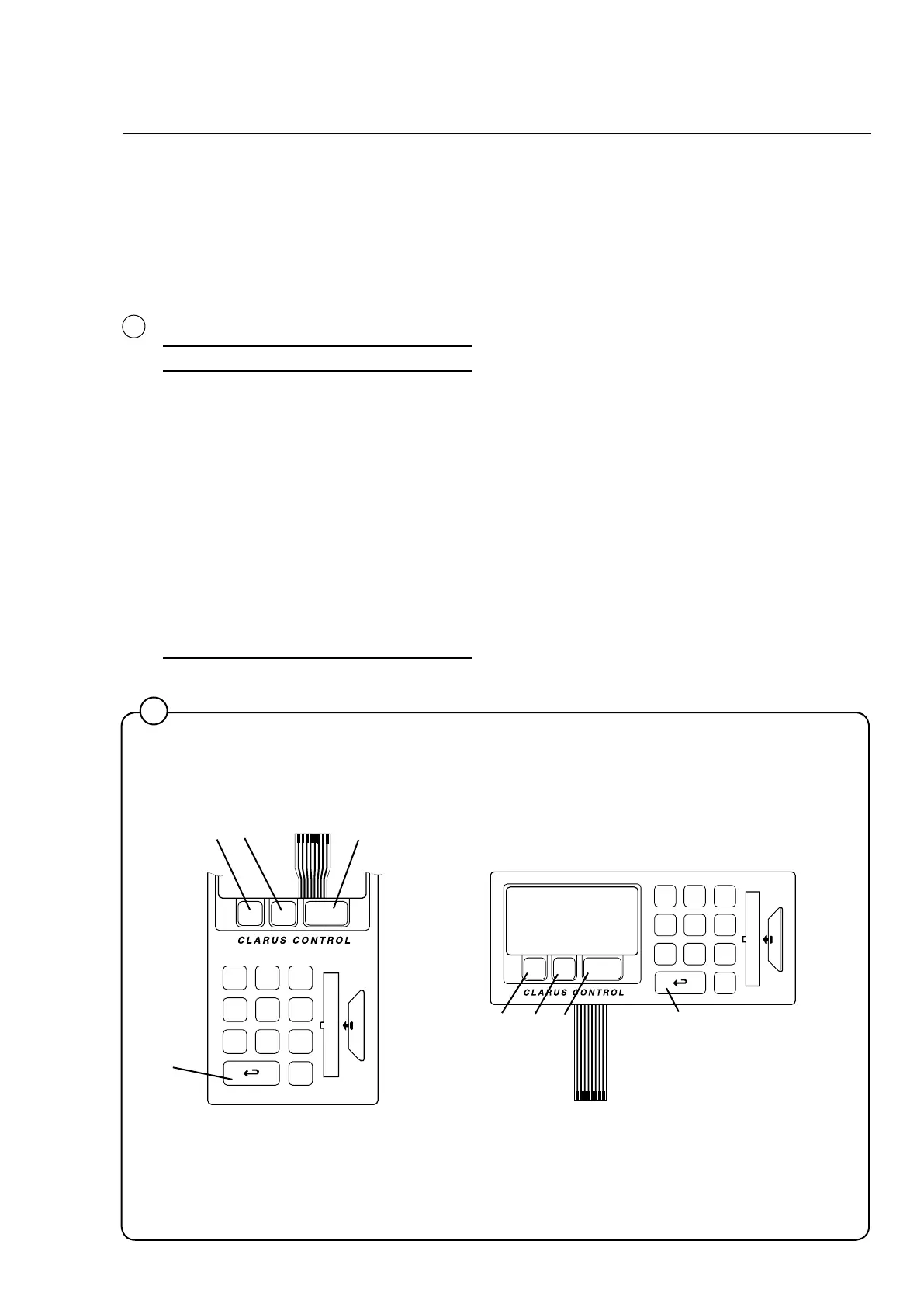

Troubleshooting the keypad in the display unit
When a key is pressed on the keypad of the programme unit, two of the
outputsonthekeypadclose.Bydisconnectedtheatcablefromthe
display card, pressing a key and the measuring the resistance between the
outputs that should close, it is possible to determine correct operation of
any one key.
The table below shows the outputs that need to be closed for each key:
A
B C D
A
B C D
4231
4232
47
47
Troubleshooting
