Wascomat Clarus Control SU620 - Detergent Compartment; Description

183

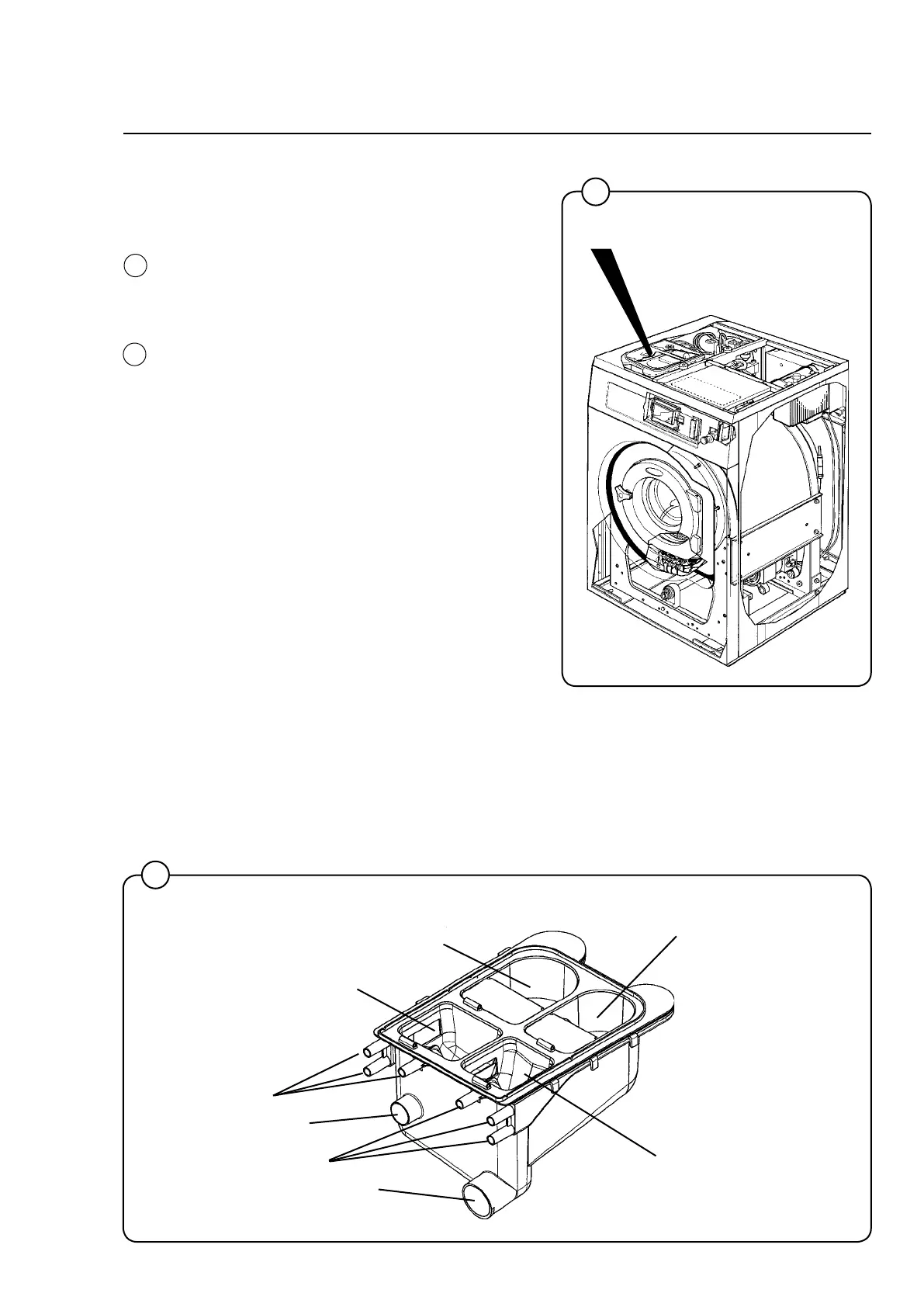

Detergent compartment
Detergent compartment
Description
The detergent compartment of the machine is
designed for use with powder and liquid deter-
gent.Thecompartmentisdividedintofoursub-
compartments as follows:
• Compartment1-Forprewashwithpowder
or liquid detergent.
• Compartment2-Formainwashwithdeter-
gent powder.
• Compartment3-Rinse.
• Compartment4-Mainwashwithliquidde-
tergentor,bleaching-agent.
The connections for incoming water are situated
on the rear side of the compartment. Compart-
ments 3 and 4 each have one connector, while
compartments 1 and 2 each have two con-
nectors, one for cold water, the other for warm
water.
The detergent is routed from the bottom of the
compartment to the outer drum through the
combo module immediately behind the compart-
ment.
To safeguard against overfilling, e.g., due to a
blocked hose on its way to the drum, the combo
modulefeaturesanoverowdraindirectlycon-
nected to the drain of the machine.
5468
Compartment 2: Main wash, powder detergent
Compartment1:Pre-wash
with powder or liquid de-
tergent
Compartment 3; Rinse
Compartment 4: Main wash,
liquiddetergentorbleaching-
agent
Overowdrain
To washing drum
Water connections
5209
Water connections
1
1
2
2
Detergent compartment
