Motor control
Ul
Supply
voltage
M1
Programme unit
A1
5189
I/O card 1
A11
Communication card A21
Motor
Motor control

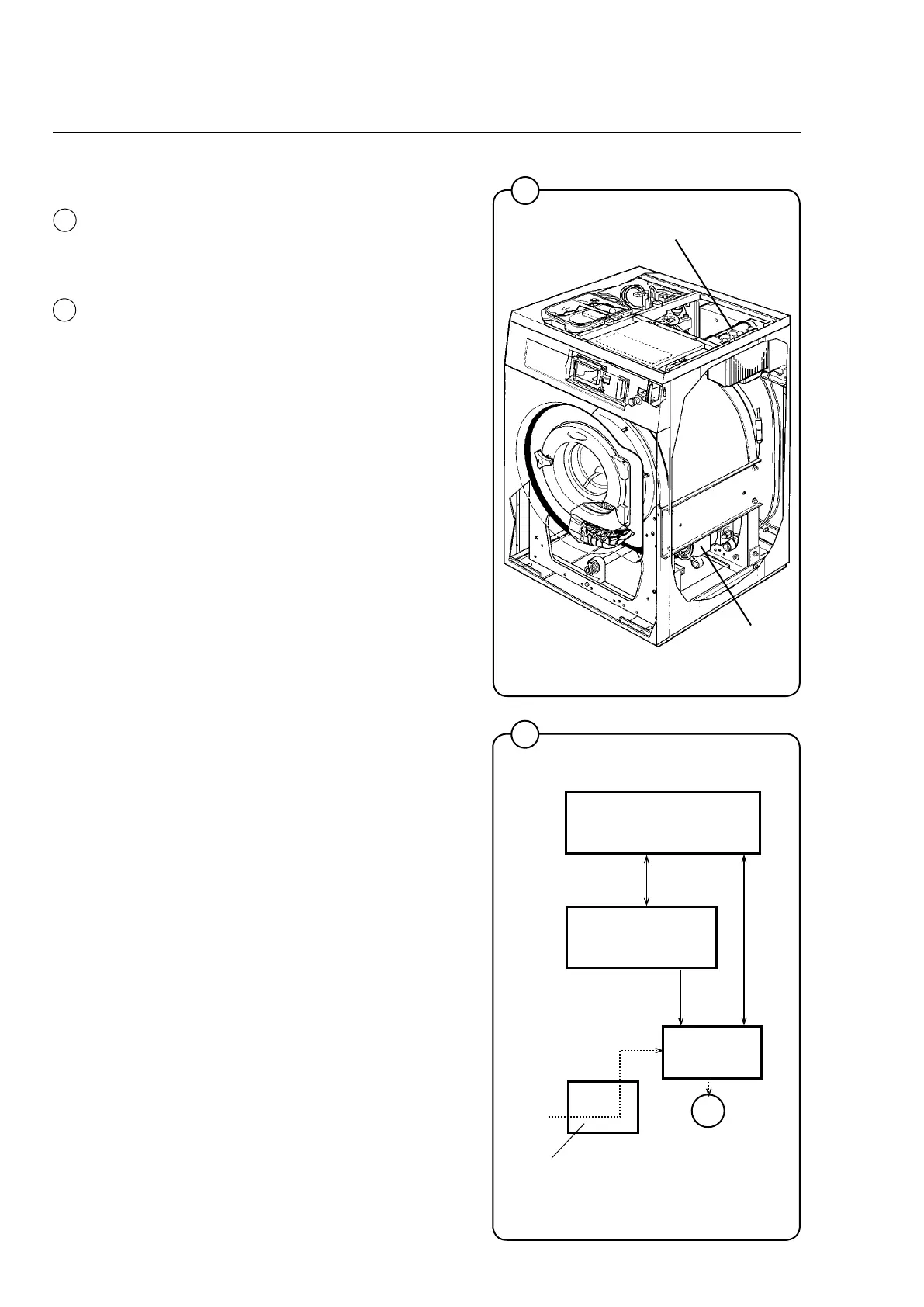

Machine presentation
Motor and motor control
Afrequency-regulatedmotorusingadrivebelt
drives the drum. The motor is situated on a mo-
tor shelf, under the outer drum with a tensioner
device for the drive belt.
The motor control relies on microcomputer con-
trol and controls acceleration, rpm and retarda-
tion of the drum with high precision. Further, the
motor control can supply simultaneous values
that can be used as warnings for unbalanced
loads and to calculate the weight of the load.
The motor control communicates with the pro-
gramme unit through a serial interface.
Themotorcontrolisvoltage-fedoveracable
which includes two fuses.
The motor and motor control is described in de-
tail in section Motor and motor control.
