Exploring injection principles 1-11
4. The sample loop fills quantitatively by transporting a multiple of loop
volumes through the loop, as follows:
3 × loop volume for loops ≤ 100 µL
2 × loop volume for loops 100 to 500 µL
1.5 × loop volume for loops > 500 µL
5. The injection valve switches to the Inject position, and the sample loop
becomes part of the flow path for the high performance liquid

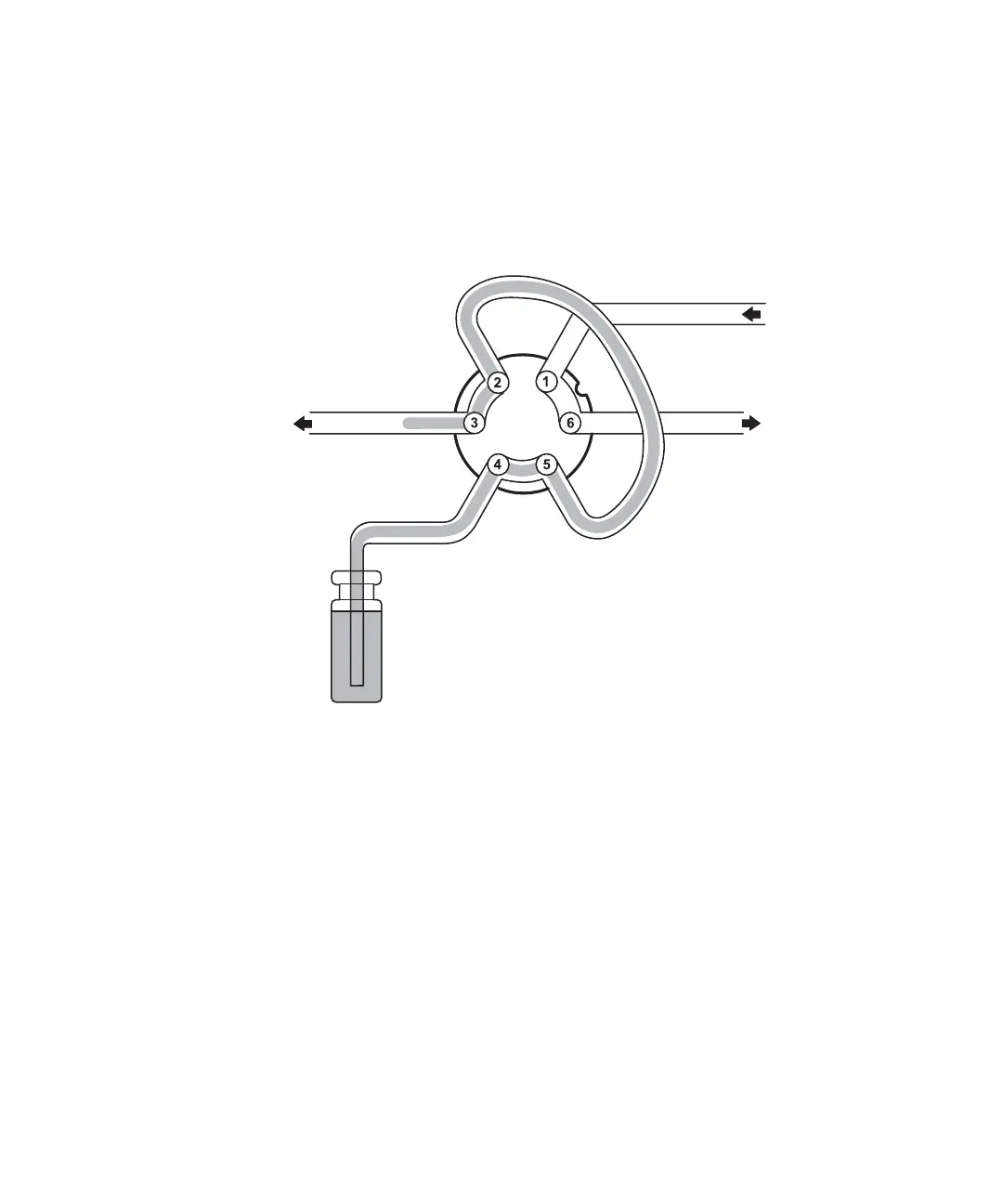

TP03048
Sample
Buffer tubing
Syringe
Needle
Sample loop
LOAD
Column
Pump
