PTM30008-B
MARCH 2009

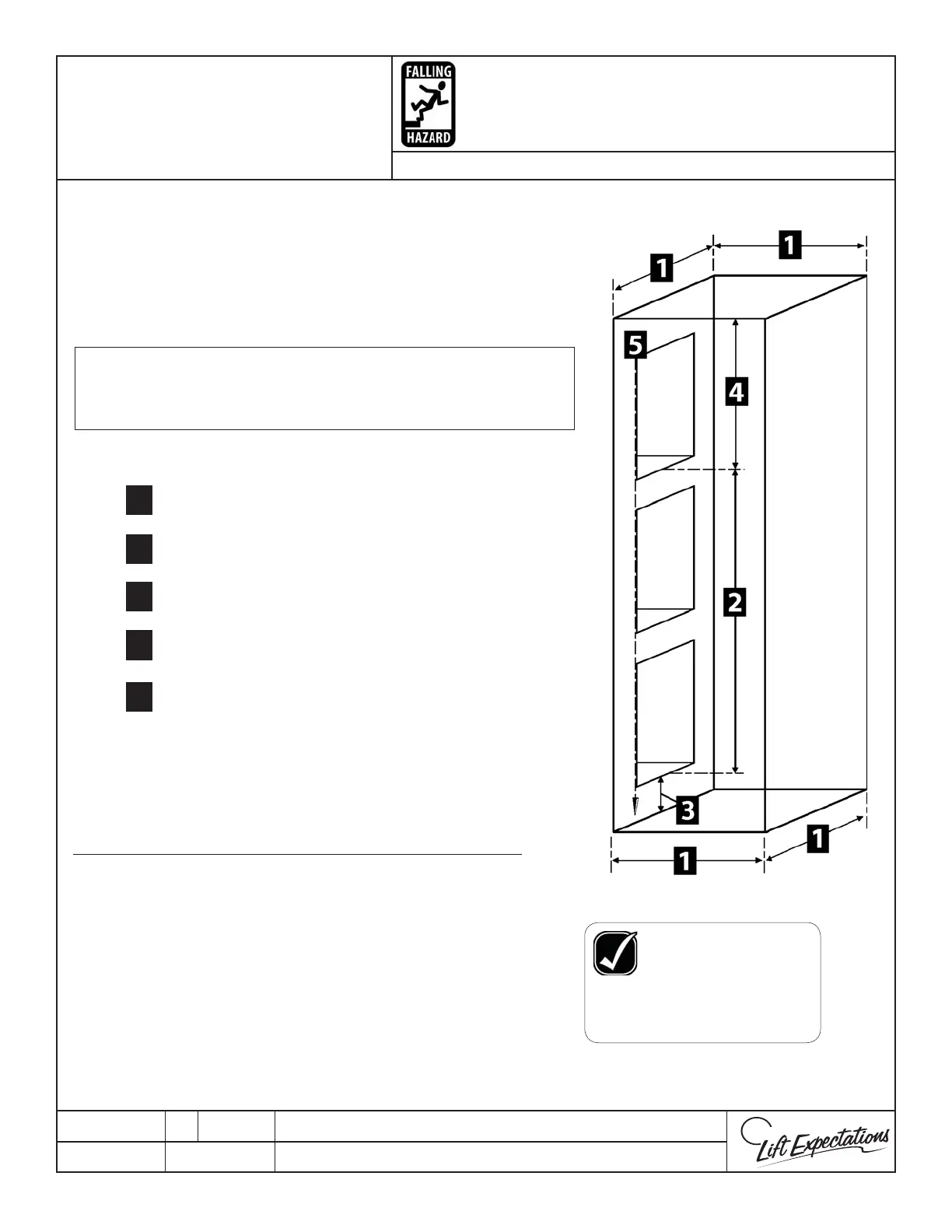

Hoistway Dimensions
Hoistway must be plumb, square and have no
dimension greater than 1” or less than 1/2” as
compared to the hoistway layout drawings.
Verify the following with your eld drawings:
Hoistway dimensions
Total travel
Pit depth
Clear overhead
Doorways are In-Line
Rail Backing
Chain hoist attachment point
(Strongly Recommended)
Hoistway Dimensions
FAILURE TO VERIFY
these dimensions with
the drawings on site, may
drastically INCREASE the
amount of TIME spent on
the job!
Other Hoistway Veri cations
Verify these other hoistway dimensions
and specifications before proceeding with
installation of elevator.
1
2
3
4
5
A - Machine room location &
dimensions (if applicable)
B - Clear access to hoistway
6
7
Note: The use of a laser level is recommended for verifying
the hoistway dimensions and for locating and
marking the center line during rail bracket installation.
SERIES: ALL
