Waupaca Paca-Ryde - Pendant Control

1726 North Ballard Road - Appleton, WI 54911 - 920.991.9082
Technical Support 855.804.5774 - TechSupport@WaupacaElevator.com
PTE10142-C
24 APR 2015
CRUSH
HAZARD
CUTTING
HAZARD
CRUSH
HAZARD
CRUSH
HAZARD
ELECTRIC
HAZARD
FALLING
HAZARD
CRUSH
HAZARD
PINCH
HAZARD
ANTI-
STATIC
ALERT

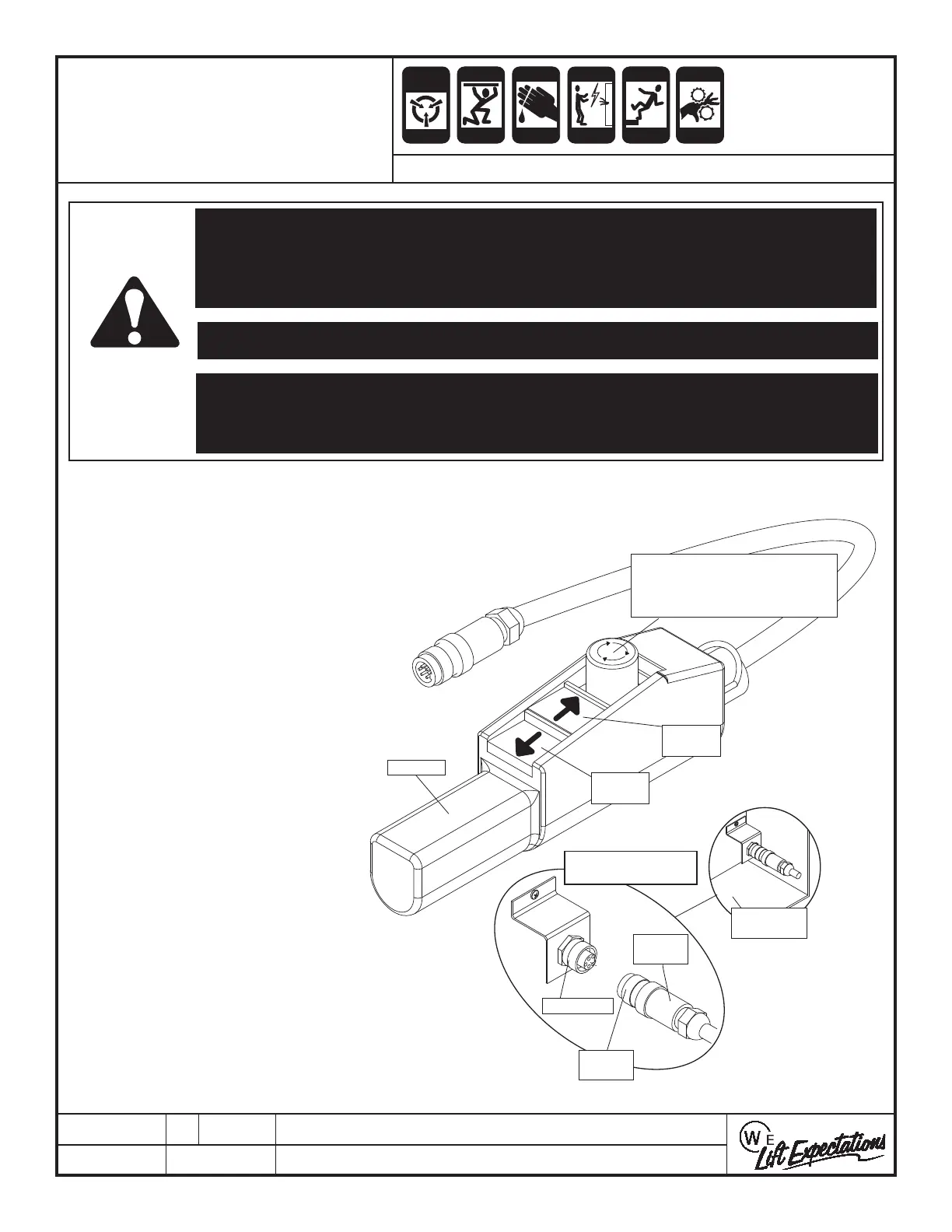

PENDANT
LOWERS
ELEVATOR
RAISES
ELEVATOR
EMERGENCY STOP BUTTON
- PRESS TO ENGAGE
- TURN CLOCKWISE TO RELEASE
PENDANT
PLUG
RECEPTACLE
CONTROLLER
BOX
INSERT PENDANT PLUG
INTO RECEPTACLE.
PENDANT
NUT
SEPARATELY
Step 1 Verify top and bottom  nals and pit switch
are installed.
Step 2 Plug in UPS (battery).
Step 3 Insert pendant plug into receptacle.
Step 4 Rotate pendant nut clockwise to fasten
onto receptacle.
Step 5 Turn UPS “ON”
Step 6 Turn PLC toggle switch to the “ON”
position.
TO USE:
Step 1 Turn “OFF” all power to the unit at the
controller, disconnect and battery.
Step 2 Turn PLC toggle switch to the “OFF” position.
Step 3 Unplug UPS (battery).
Step 4 Rotate pendant nut counterclockwise and remove
from receptacle.
TO DISCONNECT:
WARNING
VERIFY TOP FINAL AND BOTTOM FINALS ARE INSTALLED AND WORKING BEFORE USING
PENDANT! HYDRAULIC PUMP UNIT SHOULD BE INSTALLED AND WIRED BEFORE USING
PENDANT!
VERIFY THE HOISTWAY IS CLEAR OF ALL PERSON(S) WHENEVER USING PENDANT!
THE PENDANT CONTROL IS A TEMPORARY MEANS OF OPERATING THE UNIT BY A
TRAINED AUTHORIZED ELEVATOR CONTRACTOR. THE PENDANT CONTROL MUST ONLY
BE USED FOR SERVICING, INSTALLATION OR MAINTENANCE WORK!
PENDANT CONTROL
SERIES : 114 - 116
Page 19
