CAR STABLIZER
BOLTS
STABILIZER
BRACKET
1.
2.
3.
1
3
2
SERIES : 116

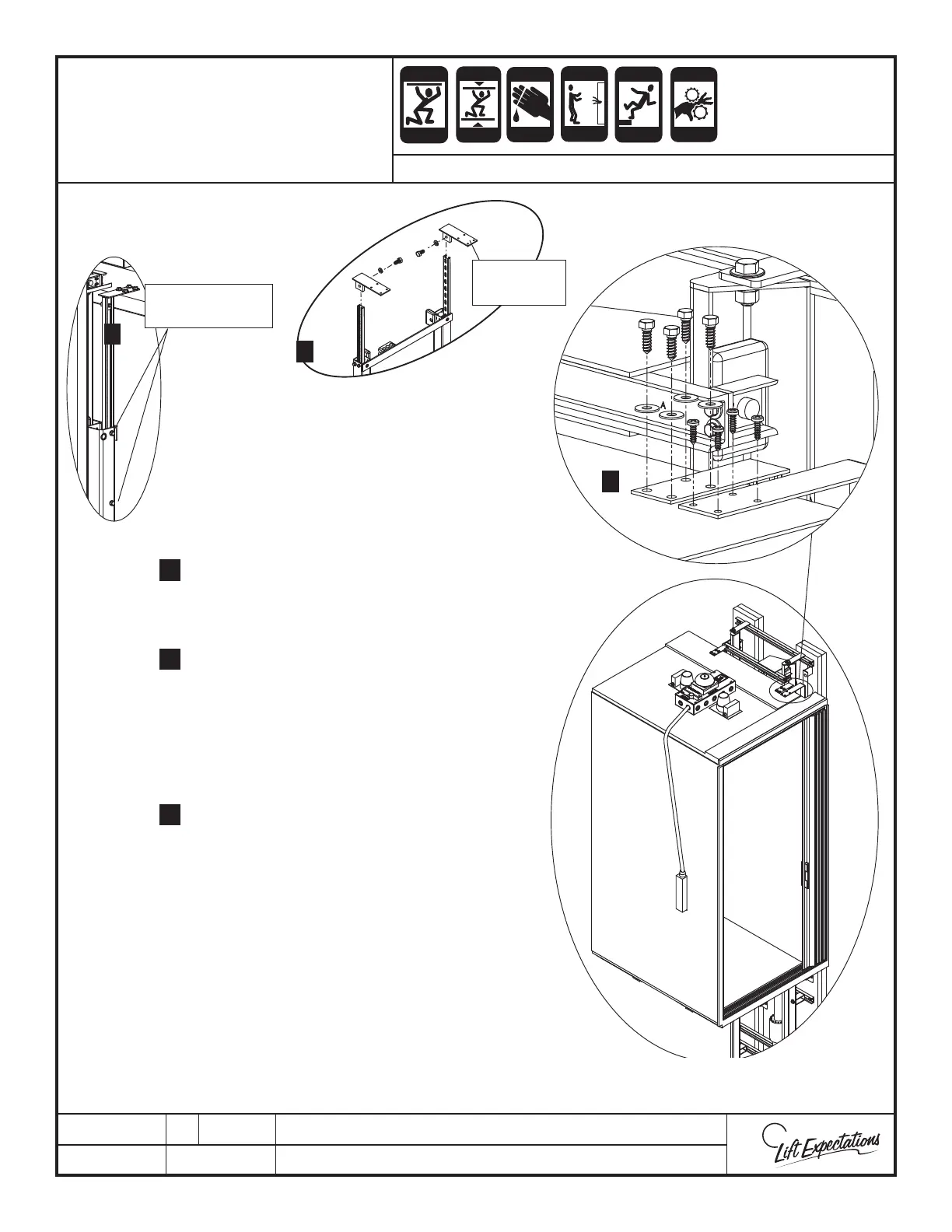

STABILIZER
BRACKET INSTALLATION
Attach stabilizer brackets to
stabilizer arm with provided
hardware and securely fasten.
Loosen hardware securing the
stabilizer arm and adjust bracket.
Move bracket up or down to allow
stabilizer bracket to rest on car.
Tighten previously loosened
hardware.
Drill appropriate sized pilot holes
for the stabilizer brackets. Do not
pierce through the interior car
ceiling. Securely fasten stabilizer
with the following provided
hardware:
(8) - 5/16” x 1” Lag Bolts
(8) - 5/16” Flat Washers
