PTE10059-E
14 DEC 2017
1726 North Ballard Road, Suite 1 - Appleton, WI 54911 - 920.991.9082
Technical Support 855.804.5774 - Parts@waupacaelevator.com
CRUSH
HAZARD
CUTTING
HAZ ARD
CRUSH
HAZARD
CRUSH
HAZARD
ELECTRIC
HAZ ARD
FALLING
HAZ ARD
CRUSH
HAZARD
PINCH
HAZ ARD
STATIC
HAZ ARD
ELECTRICITY

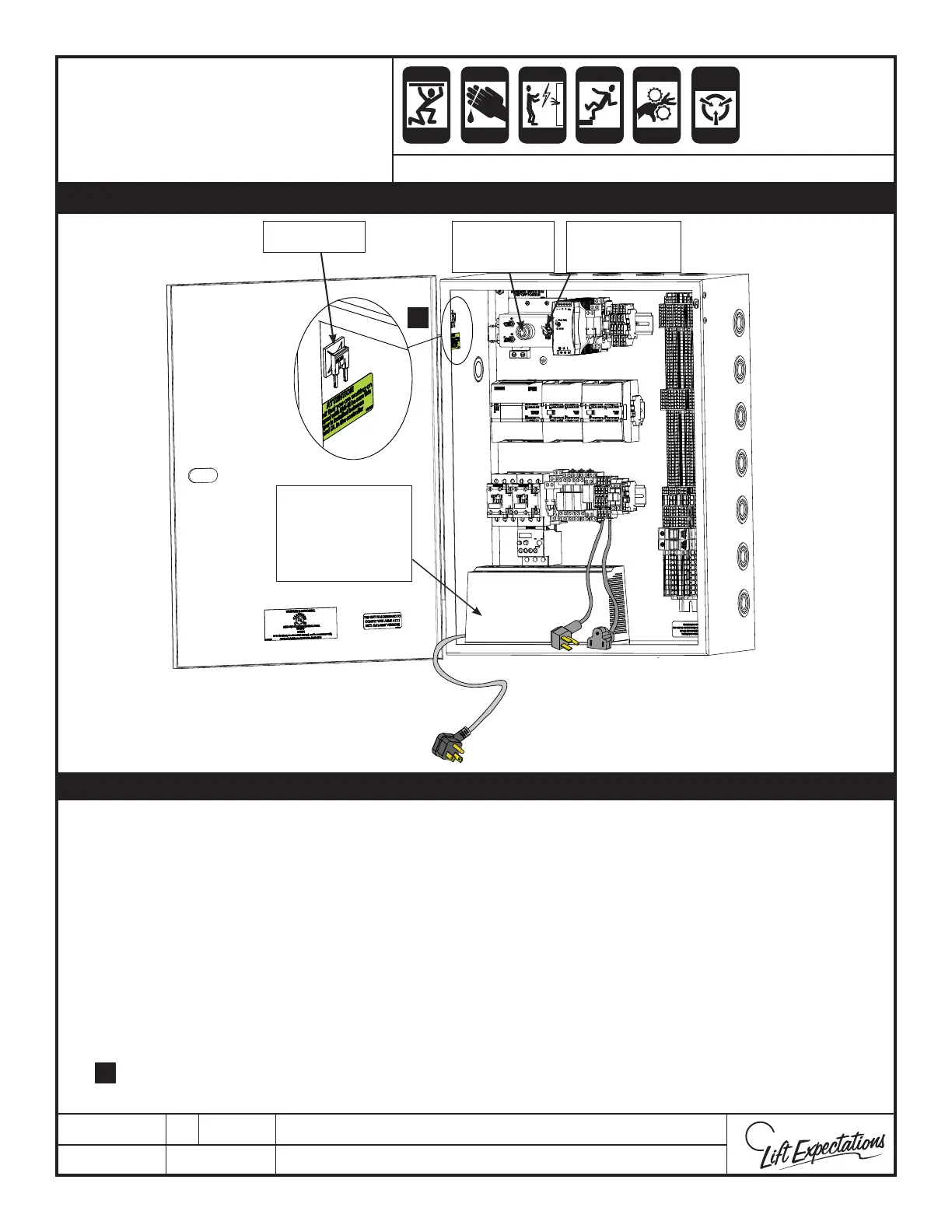

Perform the following steps before switching automatic operation:
1. Remove pendant control.
2. Plug UPS backup into the controller.
A) Insert male controller plug into UPS battery backup/surge protection side.
B) Insert male battery backup plug into controller female plug.
3. Turn toggle switch to the “ON” Position.
4. Turn UPS “ON”.
5. If the unit that you are working on is equipped with EMI-
III’s be sure the jumper
is installed between DC and DL in the controller.
Note: The battery back-up is ONLY used for the emergency decent.
Do not switch to AUTOMATIC OPERATION mode until installation in complete.
5.
5
AUTOMATIC OPERATION
SERIES : 114, 116
On and O
Toggle
Pendant
Receptacle
Uninterruptible
Power
Supply
(UPS)
Jumper
To Next Page
