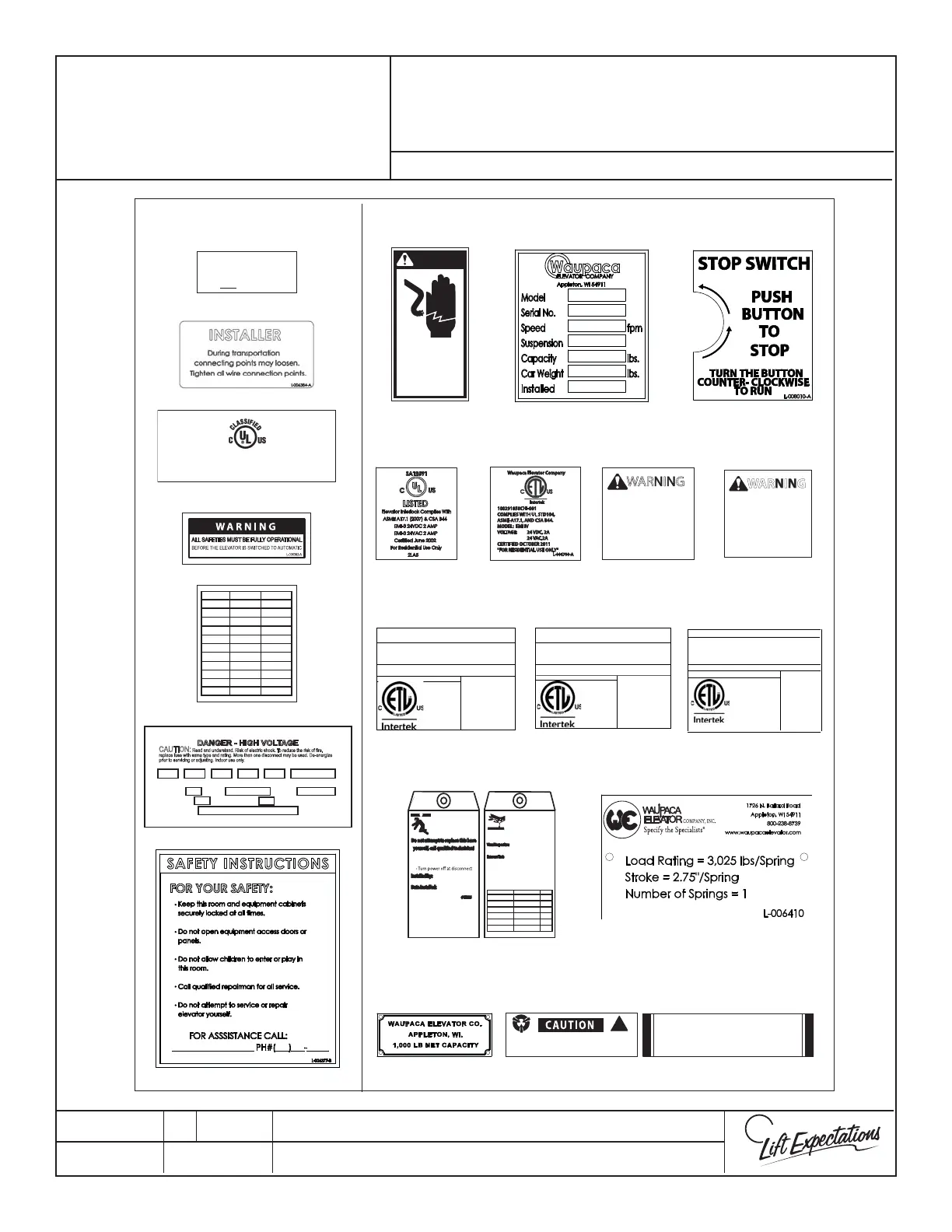

Waupaca Paca-Ryde - Factory Installed Warning & Safety Label Installation

PTS70014-J
29 MAR 2018
W E
SERIES : 114 ,116
1726 North Ballard Road, Suite 1 - Appleton, WI 54911 - 920.991.9082
Technical Support 855.804.5774 - Parts@waupacaelevator.com
WARNING
For Continued Protection Against Risk of Fire,
Replace with same Type and Rating of Fuse.
AMP, Time Delay
L-006383-A
L-006405-A
FUSE VALUE TYPE
IN OR ON CONTROLLER
ALARM BELL &
CONTROLLER
WARNING
L-006392-A
Hazardous voltage
can shock, burn or
cause death.
Do not enter or
service yourself.
Call a qualied repairman.
Electrostatic sensitive devices within.
Observe anti-static precautions.
L-006394-A
ALARM BELL &
TAPE READER
WARNING
GATE SWITCH BYPASS
AND/OR GATE REMOVAL
IS PROHIBITED BY CODE.
SERIOUS INJURY OR
DEATH COULD RESULT.
L-006416-A
GATE
WARNING : MORE THAN ONE LIVE CIRCUIT.
SEE DIAGRAM.
AVERTISSEMENT . CET ÉQUIPEMENT
RENFERME PLUSIEURS CIRCUITS SOUS
TENSION. VOIR LE SCHÉMA.
Overload protection is 150 % of full load current ( Fuse on board)
T
his unit does not incorporate overspeed protection
Screw Drive
Gate Operator
120V, 3A, 60Hz
ASME A17.5
CAN/CSA B44.1
File: 100104201CHI-001
L-006469-A
ASME A17.5
CAN/CSA B44.1
File: 100104201CHI-001
WARNING : MORE THAN ONE LIVE CIRCUIT.
SEE DIAGRAM.
AVERTISSEMENT . CET ÉQUIPEMENT
RENFERME PLUSIEURS CIRCUITS SOUS
TENSION. VOIR LE SCHÉMA.
Overload protection is 150 % of full load current (
Fuse on board)
T
his unit does not incorporate overspeed protection
Belt Drive
Gate Operator
120V, 3A, 60Hz
L-006470-A
CARTOP
SCREW DRIVE
GATE OPERATOR
BELT DRIVE
GATE OPERATOR
EMI III AC & DC
L-006700-A
Waupaca Elevator Company
100291858CHI-001
COMPLIES WITH UL STD104,
ASME-A17.1, AND CSA B44.
MODEL: EMI IV
VOLTAGE: 24 VDC, 2A
24 VAC,2A
CERTIFIED OCTOBER 2011
"FOR RESIDENTIAL USE ONLY"
Intertek
EMI IV AC & DC
Elevator car can come
down and can cause
SEVERE INJURY or DEATH
Before disconnecting hose:
• Secure car and sling
Do not attempt to replace this hose
Installed by:
______________________________
Date Installed:
______________________________
PER ASME A17.1: REPLACE HOSE EVERY 6 YEARS OR
SOONER IF REQUIRED BY LOCAL JURISDICTION
L-006430-B
Minimum Bend Radius: 4.80 in.
Factory Test Pressure: 3700 PSI
Factory Test Date: _______________
Inspection of hose to occur annually, or as
directed by local jurisdiction
Visual Inspection:
Check for weeping, leakage, kinks, twists, crushed
sections, or damage to outer covering
Pressure Test:
Run unit upward until stop ring is engaged and
pressure relief valve activates. Continue to run
pump for 30 seconds while checking for:
• Leakage
• Slippage of Fittings
• Exposure of Inner Reinforcement
• Bulging/Distortions of Hose Body
High pressure hydraulic
lines, keep hands clear
while pressure testing
L-006430-B
COMPANY: TECHNICIAN: DATE:
Voltage (V): Freq. (Hz): Phase (Ø): Wiring Diagram #:HP: Current (A):
Serial #:
Enclosure Type: UL File:
Plant Location:
Short Circuit Current: KA rms symmetrical at V maximum
L-006385-B
DANGER - HIGH VOLTAGE
CAUTION: Read and understand. Risk of electric shock. To reduce the risk of fire,
replace fuse with same type and rating. More than one disconnect may be used. De-energize
prior to servicing or adjusting. Indoor use only.
EMI AC & DC
WARNING
INTERLOCK BYPASS
AND/OR REMOVAL IS
PROHIBITED BY CODE.
SERIOUS INJURY OR
DEATH COULD RESULT.
L-006380-A
POWER UNIT
CARTOP
WAUPACA ELEVATOR INC.
"As to electrical, shock and re hazard, and in accordance with
ASME A17.5-2014 and CAN / CSA B44.1-2014"
E180739
ENCLOSED ELEVATOR CONTROL PANEL
XXXXXX
L-006406-C
WARNING : MORE THAN ONE LIVE CIRCUIT.
SEE DIAGRAM.
AVERTISSEMENT . CET ÉQUIPEMENT
RENFERME PLUSIEURS CIRCUITS SOUS
TENSION. VOIR LE SCHÉMA.
Copper conductors only!
4000929
Waupaca Elevator
Cartop Box
Elevator
120V, 10a, 60Hz
CONFORMS TO ASME STD A17.5
CERTIFIED TO CAN/CSA STD B44.1
File: 102879262CHI-00
1
L-007881
CAUTION
NO LIFT - NO STEP
L-006413-A
CARTOP
CAPACITY TAG
®
HYDRAULIC HOSE
BUFFER SPRING TAGS
(1) PER BUFFER SPRING
MAY VARY
FACTORY INSTALLED
WARNING & SAFETY
LABEL INSTALLATION
Page 6
