Waupaca Paca-Ryde - Car Top Modular Wiring

1726 North Ballard Road, Suite 1 - Appleton, WI 54911 - 920.991.9082
Technical Support 855.804.5774 - Parts@waupacaelevator.com
PTE10020-H
14 DEC 2017
W E
CRUSH
HAZARD
CUTTING
HAZ ARD
CRUSH
HAZARD
CRUSH
HAZARD
ELECTRIC
HAZ ARD
FALLING
HAZ ARD
CRUSH
HAZARD
PINCH
HAZ ARD
STATIC
HAZ ARD
ELECTRICITY
CRUSH
HAZARD
CRUSH
HAZ ARD
Note: Depending on the application not all plugs may be used.

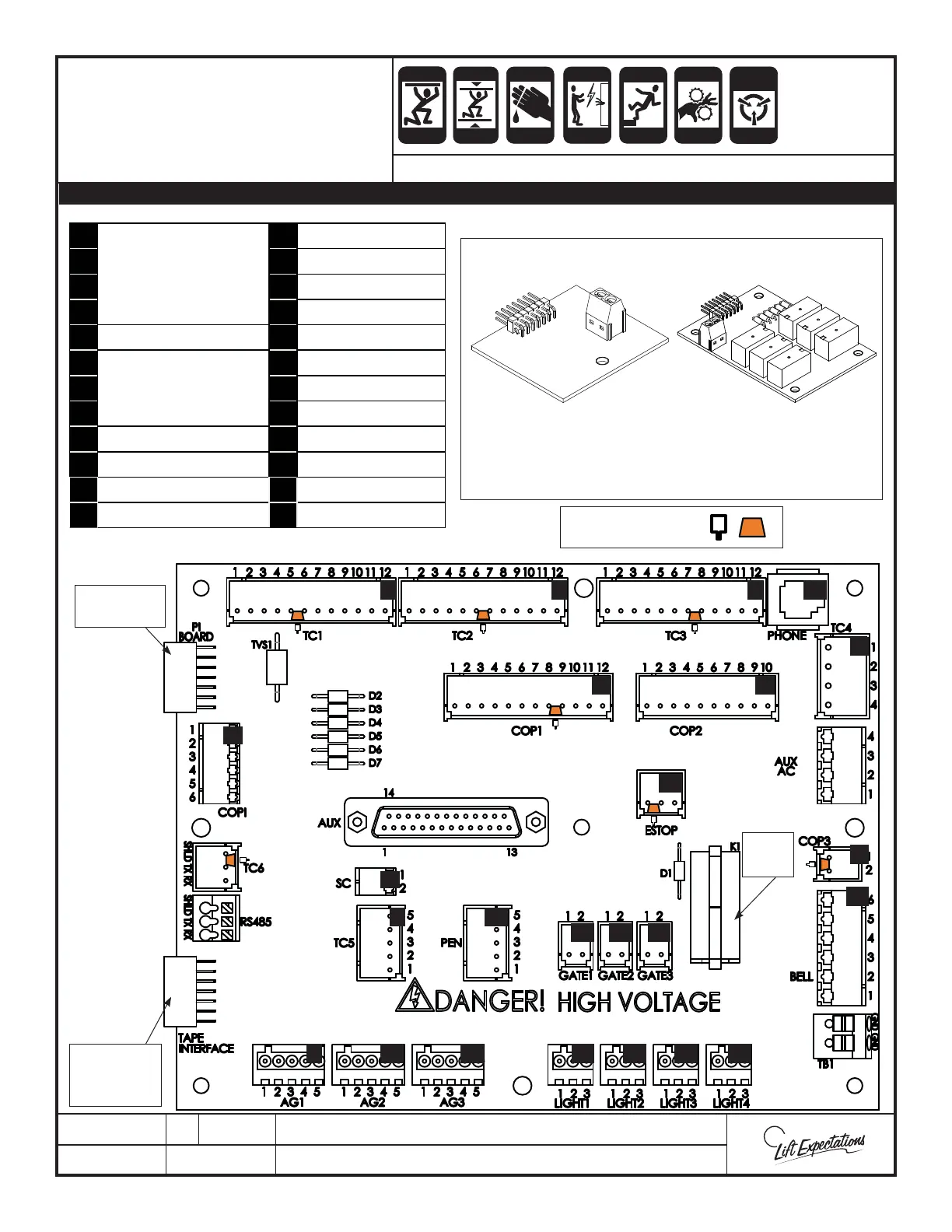

CAR TOP MODULAR
WIRING
SERIES : 008, 114 , 115, 116, 118, 021, 022, 210, 311, 511
1 2 3
4
5
7
8
9 10 11
12 13 14
15 16 17 18
19
20
21
22
23
24
6
Light
Relay
Tape
Interface
Receptacle
Board
Receptacle
1
Travel Cable Plugs
13 Gate Switch 2
214Gate Switch 3
315Light 1
416Light 2
5
N/A
17 Light 3
6
Car OperaƟ ng
Panel Plugs (COP)
18 Light 4
719Bell and E-Light
820Emergency Stop
9 AutomaƟ c Gate 1 21 PosiƟ on Indicator
10 AutomaƟ c Gate 2 22 Slack Cable Switch
11 AutomaƟ c Gate 3 23 Phone Jack
12 Gate Switch 1 24 N/A
Standard Optional
Cartop
Jumper
Circuit Board
Position
Indicator
Circuit Board
Board Receptacle
Symbols: Keys
Page 38
