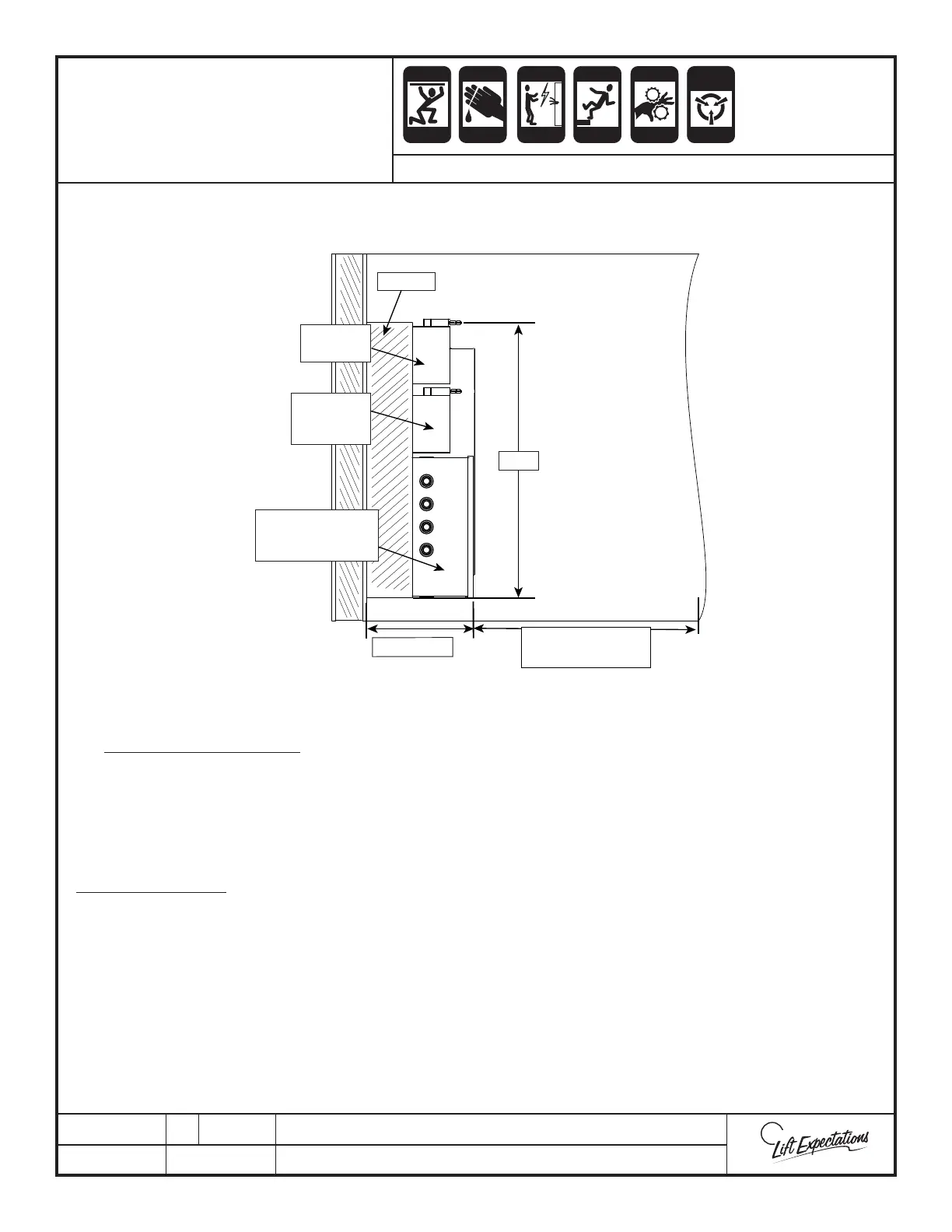

Build out
Disconnect
110V
Controller Size
Standard
24-1/2” x 18-5/8”x 8”
14-1/2 in
Note: The machine room may be placed on any oor of on any
level of the home
Disconnect/
Light Switch
230V
Overhead View
30 in
36 in of the face of
the equipment
CRUSH
HAZARD
CUTTING
HAZ ARD
CRUSH
HAZARD
CRUSH
HAZARD
ELECTRIC
HAZ ARD
FALLING
HAZ ARD
CRUSH
HAZARD
PINCH
HAZ ARD
STATIC
HAZ ARD
ELECTRICITY
CONTROLLER
INSTALLATION AND
WIRING
SERIES : 114, 116
Per NEC Code 110.26 Continued .......
3. Height of Working Space (Headroom). The height of the working space in front of equipment must
not be less than 6½’ measured from the grade, oor, platform, or the equipment height, whichever is
greater.
Other equipment must not extend more than 6” into the controller working space.
Additional Notes
• A lockable service disconnect must be placed within sight of the controller and must be easily
accessible in case of an emergency.
• Machine room must contain a convenience outlet and light with switch.
• The temperatures must be maintained between 60°- 110°F and must not be exposed to the
elements (with a relative humidity not to exceed 95%).
