PTE10025-D
12 JAN 2018
W
E
1726 North Ballard Road, Suite 1 - Appleton, WI 54911 - 920.991.9082
Technical Support 855.804.5774 - Parts@waupacaelevator.com
WHITE BOXES REPRESENT SOUTH MAGNETS
(South magnets have a yellow stripe on them)
BLACK BOXES REPRESENT NORTH MAGNETS
- Place adhesive side toward steel tape
EZ Magnet (4” LONG)
- Powers corresponding EMI
- Resets count to corresponding oor
Floor Leveling Magnet (7” LONG)
- Controls elevator leveling
- Initiates oor count
- Enables PLC to recognize door zone
- Initiates releveling
LEGEND
MAGNETS & THEIR FUNCTIONS
EZ1
MAGNET
EZ6
71 3/4"- 74”
Above oor level is
initial setting
adjust as required.
Note:
Measurements are
based o a 7ft car.
Height may vary.
C
L
C
L
C
L
C
L
C
L
C
L
1/2"
GAP
1-1/2"
Note: For ne adjustments of oor height, move all the magnets at a landing oor for an adjustment.
CRUSH
HAZARD
CUTTING
HAZARD
ELECTRIC
HAZARD
FALLING
HAZARD
PINCH
HAZARD
STATIC
HAZARD
ELECTRICITY

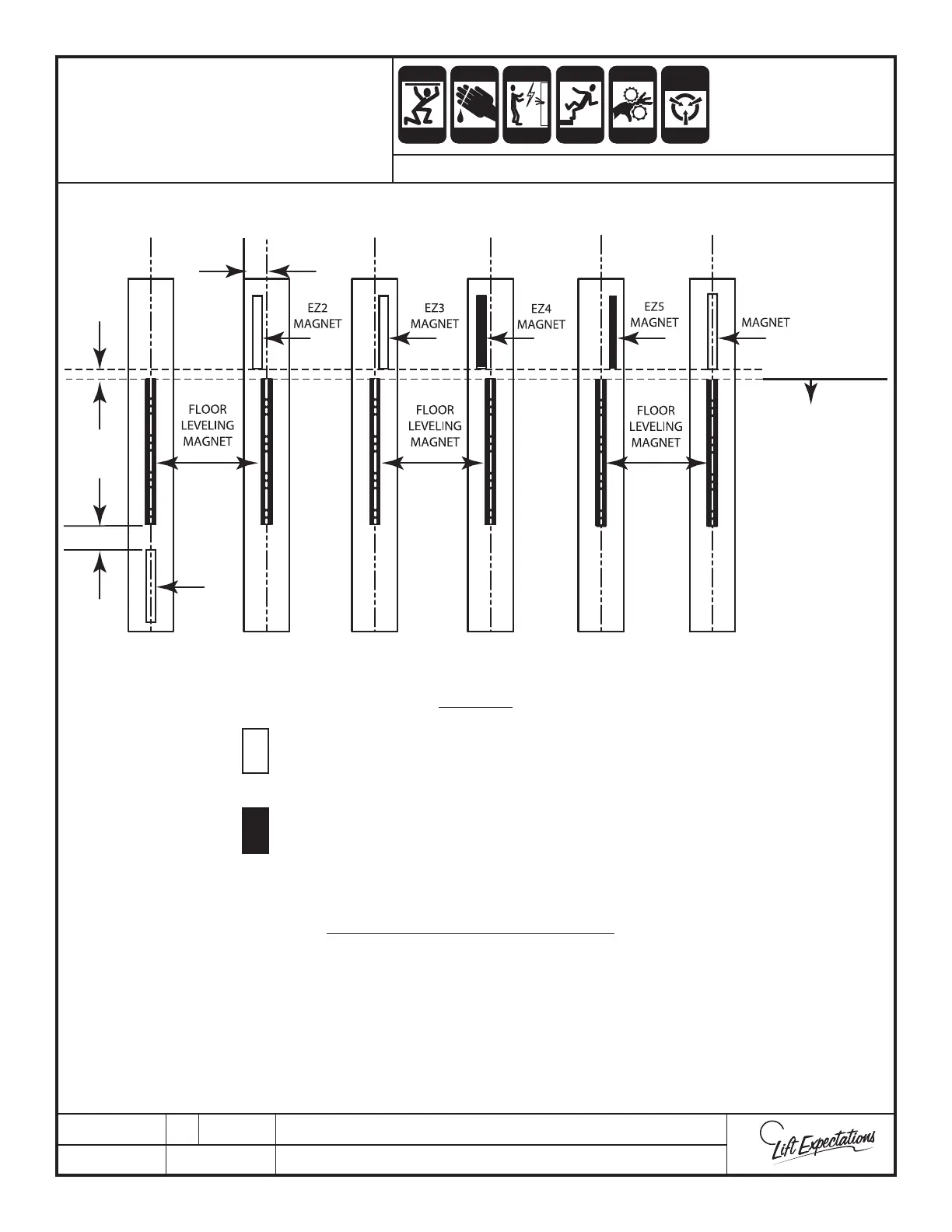

EMI & GAL
MAGNET PLACEMENT
SERIES : 114 , 116
