The cable length for these inputs must not exceed 100m.
To prevent any damage to the concentrator, do not inject current or voltage onto
the digital inputs.
In ON-OFF mode:
The concentrator can detect dry contact openings and closures to report device status or
trigger status change alarms.

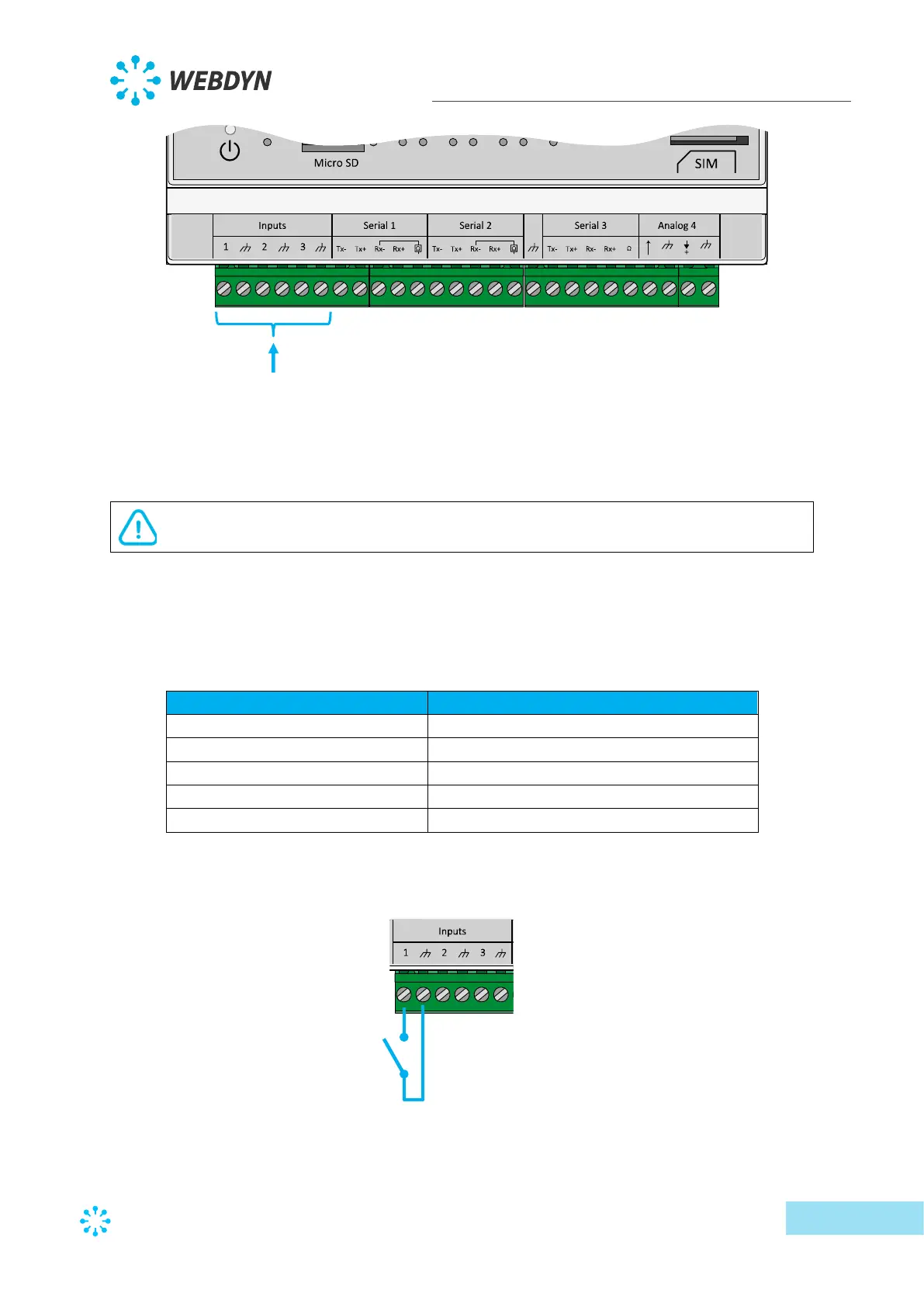

ON-OFF inputs
Digital inputs
Type
Collector open / Drain open / Dry contact
Max voltage / current
4mA @5V
“0” Switching threshold disabled
> 3.5 V
“1” Switching threshold enabled
< 1 V
Pulse counters
> 20 ms
Digital inputs
On-OFF input wiring
