USER MANUAL – WebdynSunPM
Version 2.05
préliminaire
Do not apply a voltage higher than 12V or a current higher than 24mA to the analog
inputs.
The voltage available for the sensors on the terminal block is the same as the power
supply block voltage used to power the concentrator. The maximum power available
for all the sensors must not exceed 7 watts.
2.4.7.2 Digital ON-OFF/S0 (pulsed) inputs
The WebdynSunPM concentrator has 3 inputs that can be configured to ON-OFF mode or S0
pulsed mode (pulse counting).
These inputs are located at the bottom left of the WebdynSunPM concentrator.

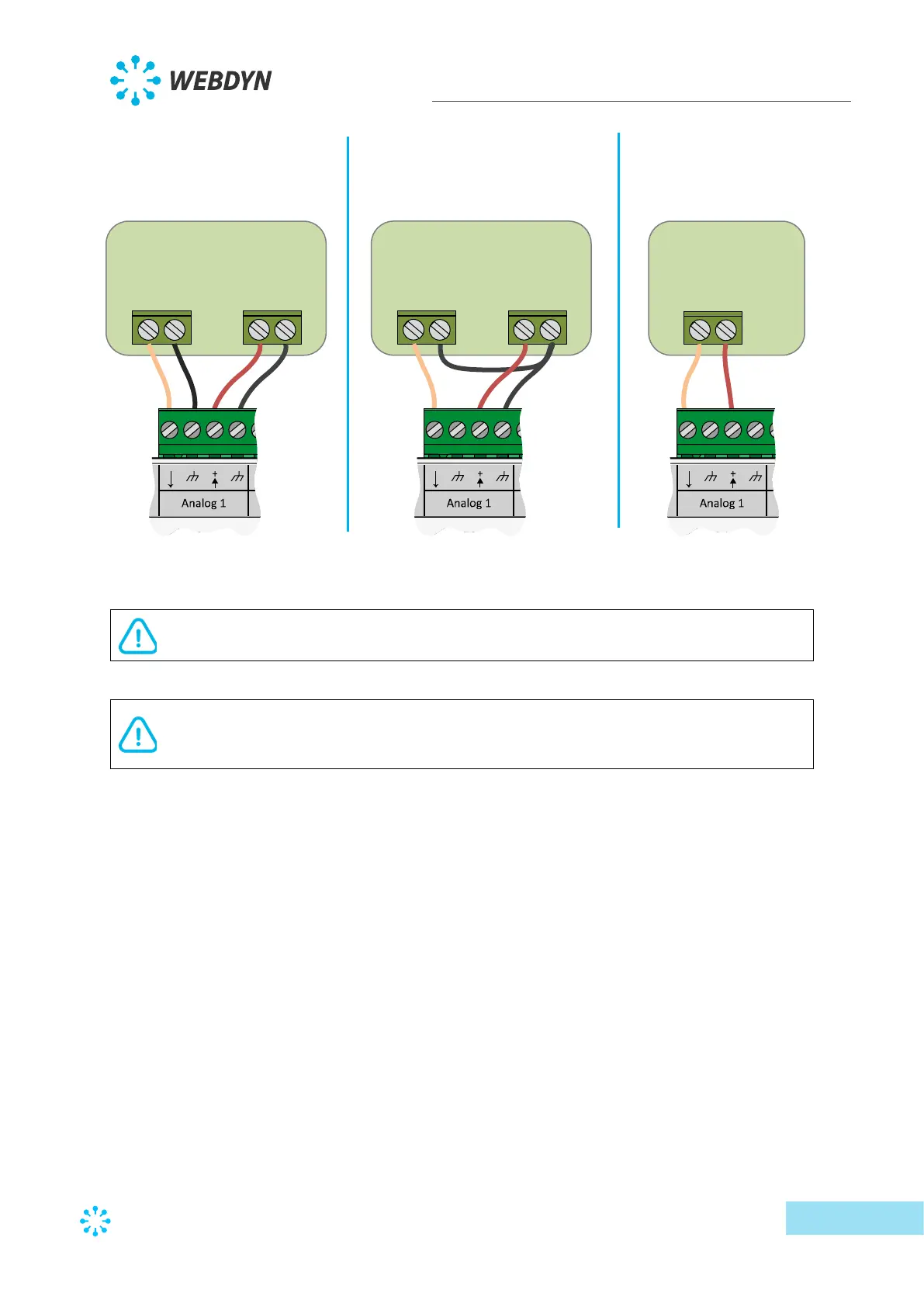

Sensor wiring
0-10V or 4-20mA
using 4-wire wiring
Power supply
terminal block
Output
terminal block
+ -
Out -
Sensor wiring
0-10V or 4-20mA
using 3-wire wiring
Power supply
terminal block
Output
terminal block
+ -
Out -
Sensor wiring
4-20mA
using 2-wire wiring
Out +
