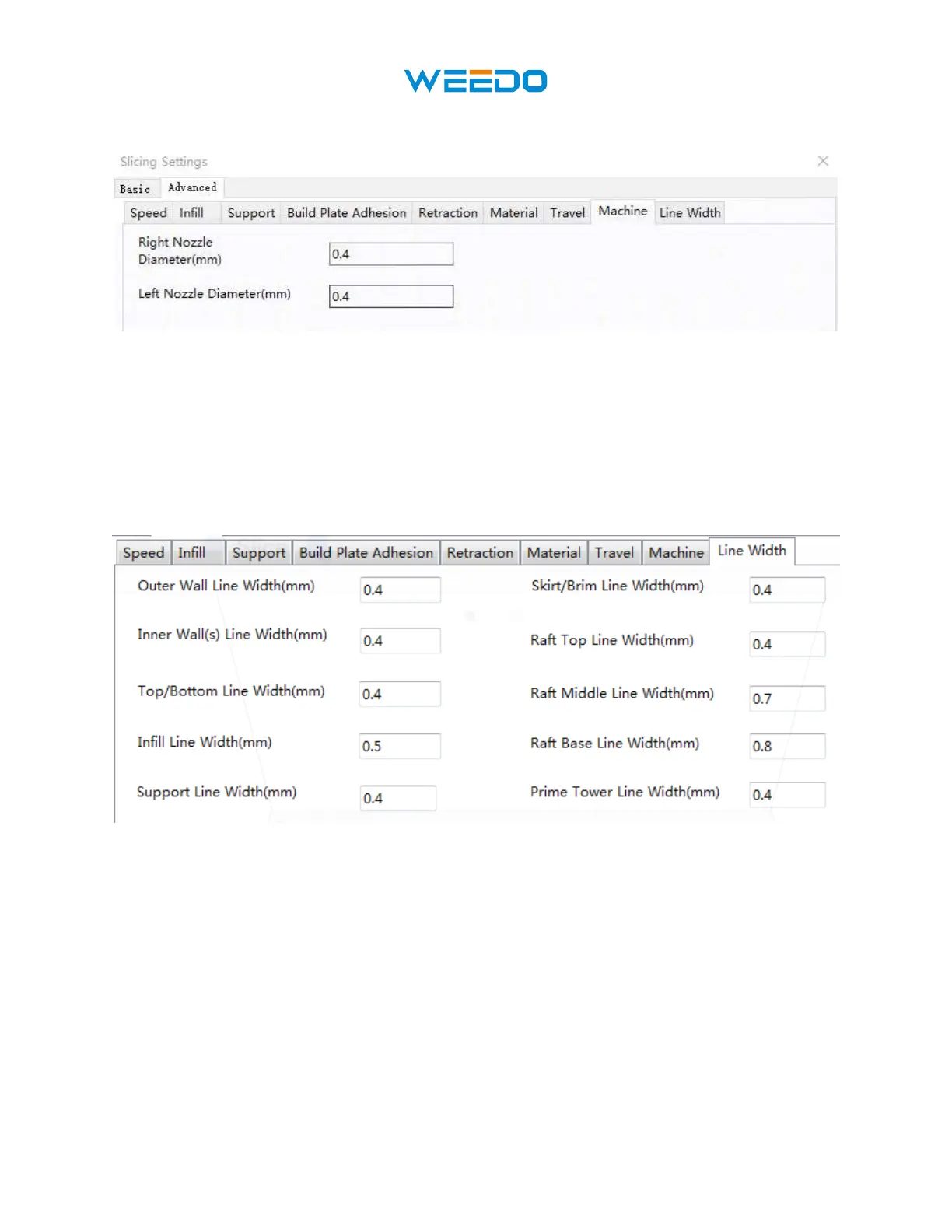

8.10 Machine Tab
Pic75
• Right Nozzle Diameter (mm): Sets the diameter of the nozzle on the right extruder. This
printer only has a single extruder, which is designated the right extruder. The nozzle
diameter of this printer is 0.4mm.
• Left Nozzle Diameter (mm): Sets the diameter of the nozzle on the left extruder. This
printer only has a single extruder, which is designated the right extruder.
8.11 Line Width Tab
Pic76
• Outer Wall Line Width (mm): This is the width of the outermost wall line. By lowering
this value, higher levels of detail can be printed.
• Inner Wall(s) Line Width (mm): This is the width of a single wall line for all walls
except the outermost wall.
• Top/Bottom Line Width (mm): This is the width of the top and bottom lines.
• Infill Line Width (mm): This is the width of a single infill line.
• Support Line Width (mm): This is the width of a single support structure line.
• Skirt/Brim Line Width (mm): This is the width of a single skirt or brim line.
