Maintenance
5
Maintenance Procedures
5. Turn engine off and remove ignition key.

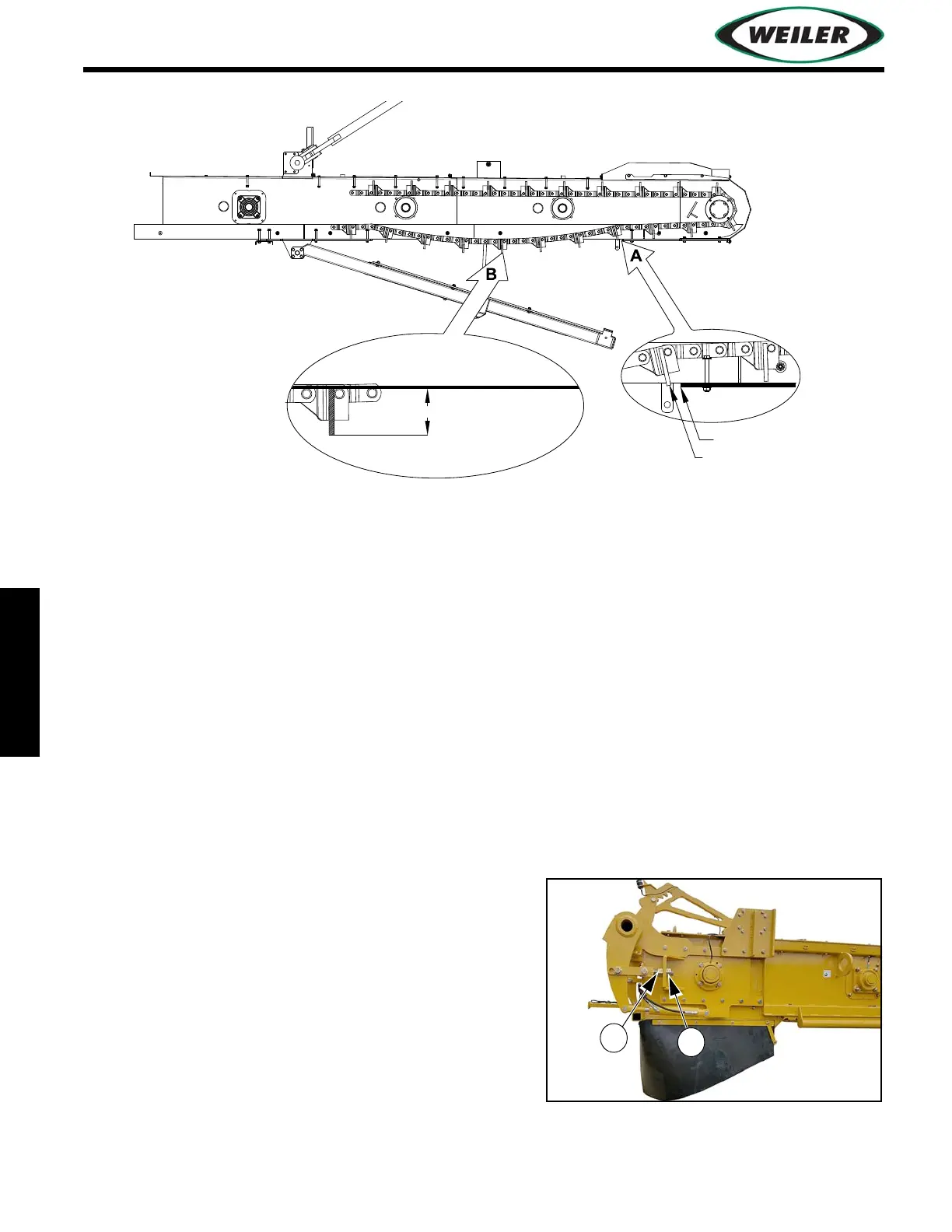

6. At midpoint of cleanout door, measure chain sag from bottom of frame flange to bottom of slat as
shown in detail view B. Measure both sides of chain to ensure chain sag is even from side to side,
+/- 1/4” (6 mm).
•If chain sag is out of range, manually run an auto-adjust tensioning cycle. Refer to
"Manually
Starting an Auto-Adjust Cycle", page 5-14.
•If chain sags unevenly from left to right, refer to
"Discharge Conveyor Chain - Adjust Uneven
Sag", page 5-16.
Contact a Weiler dealer if chain sag remains out of range or uneven after adjustment.
7. Check chain for wear. Refer to
"Chain Checklist", page 5-20. Contact a Weiler dealer if chain
show significant wear or stretch.
Discharge Conveyor Chain - Adjust Uneven Sag
1. With engine off and ignition key removed, adjust both
sides of chain until chain sag is even from side to side
+/- 1/4” (6 mm).
•To tighten chain, loosen nut (1), and tighten nut (2).
•To loosen chain, loosen nut (2), and tighten nut (1).
2. Clean material off of cleanout door and sealing edges
to allow door to close tightly.
3. Start engine. Close and latch cleanout door. Verify
door is fully closed. Turn engine off.
4 - 9"
(102 - 229 mm)
Chain slat just o
edge of oor pan
Edge of oor pan
Frame Flange
