WEILER E1650 REMIXING TRANSFER VEHICLE
5-17
Maintenance
5
Maintenance Procedures
Elevator Chain Tension - Check / Adjust
1. Start engine and run 2–3 minutes. Open elevator cleanout door. Refer to "Elevator Cleanout",
page
3-33.
2. Fully raise elevator. Run elevator chain for 2–3 minutes.

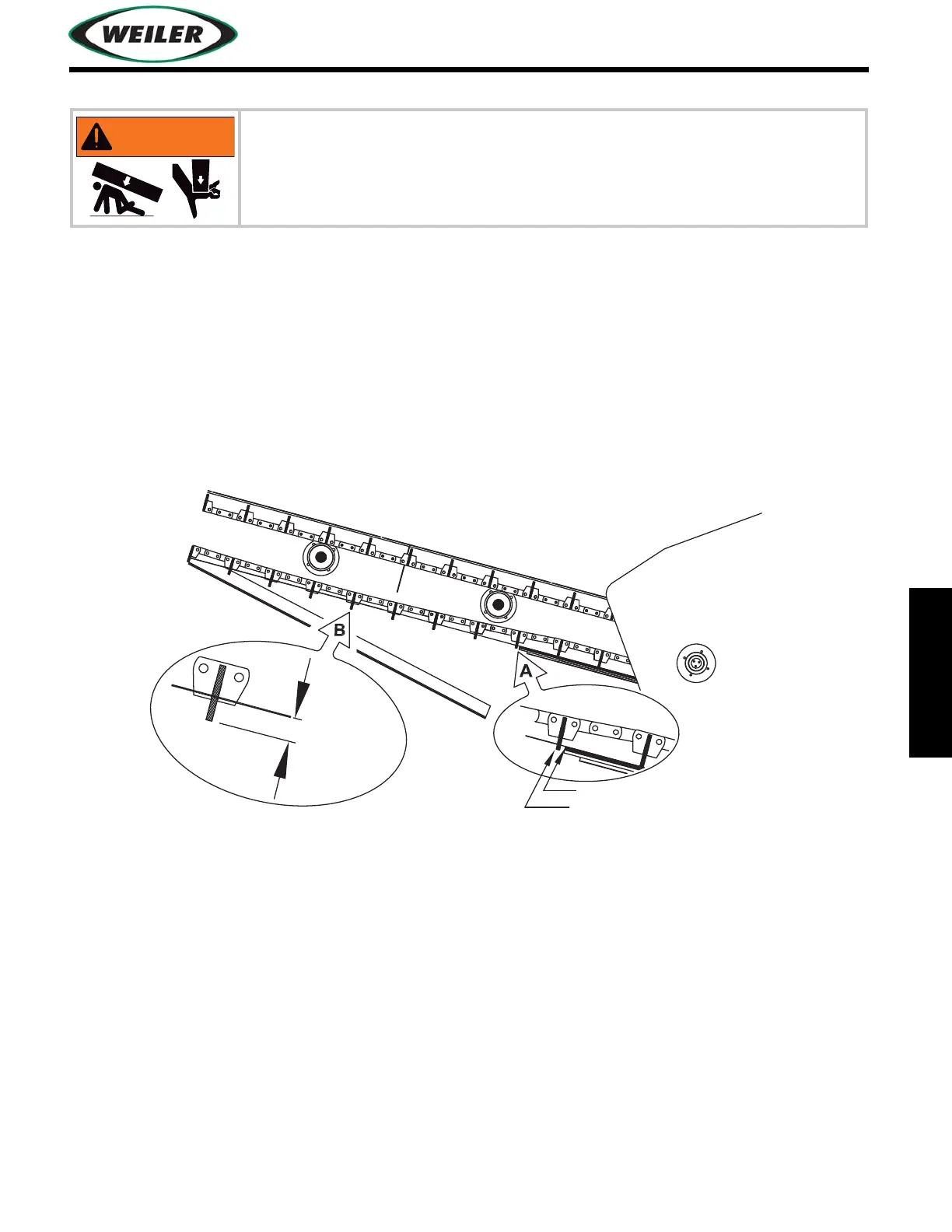

3. Run chain forward until a chain slat is just off edge of floor plate as shown in detail view A, 5-16.
4. Bump chain forward/reverse until chain sag is no longer increasing. The final chain bump must
be in reverse for maximum chain sag to occur. Do not allow a chain slat to ride up onto floor
plate.
5. Turn engine off and remove ignition key.
6. At midpoint of cleanout door, measure chain sag from bottom of frame flange to bottom of slat as
shown in detail view B. Measure both sides of chain to ensure chain sag is even from side to side,
+/- 1/4” (6 mm).
7. Adjust chain tension if chain sag is out of range, or if chain sags unevenly from side to side. Refer
to
"Elevator Chain - Adjust Tension / Uneven Sag", page 5-18. Contact a Weiler dealer if chain
sag remains out of range or uneven.
8. Check chain for wear. Refer to
"Chain Checklist", page 5-20. Contact a Weiler dealer if chain
shows significant wear or stretch.
WARNING
Falling door can crush. Door can open unexpectedly when stuck closed.
To open door, pin swings arms to frame before raising elevator. Keep clear
of raised door if latches are released.
2” - 3”
(51 - 76 mm)
Edge of oor pan
Chain slat just o edge of pan
