WEILER E1650 REMIXING TRANSFER VEHICLE
5-34
Maintenance
5
Maintenance Procedures

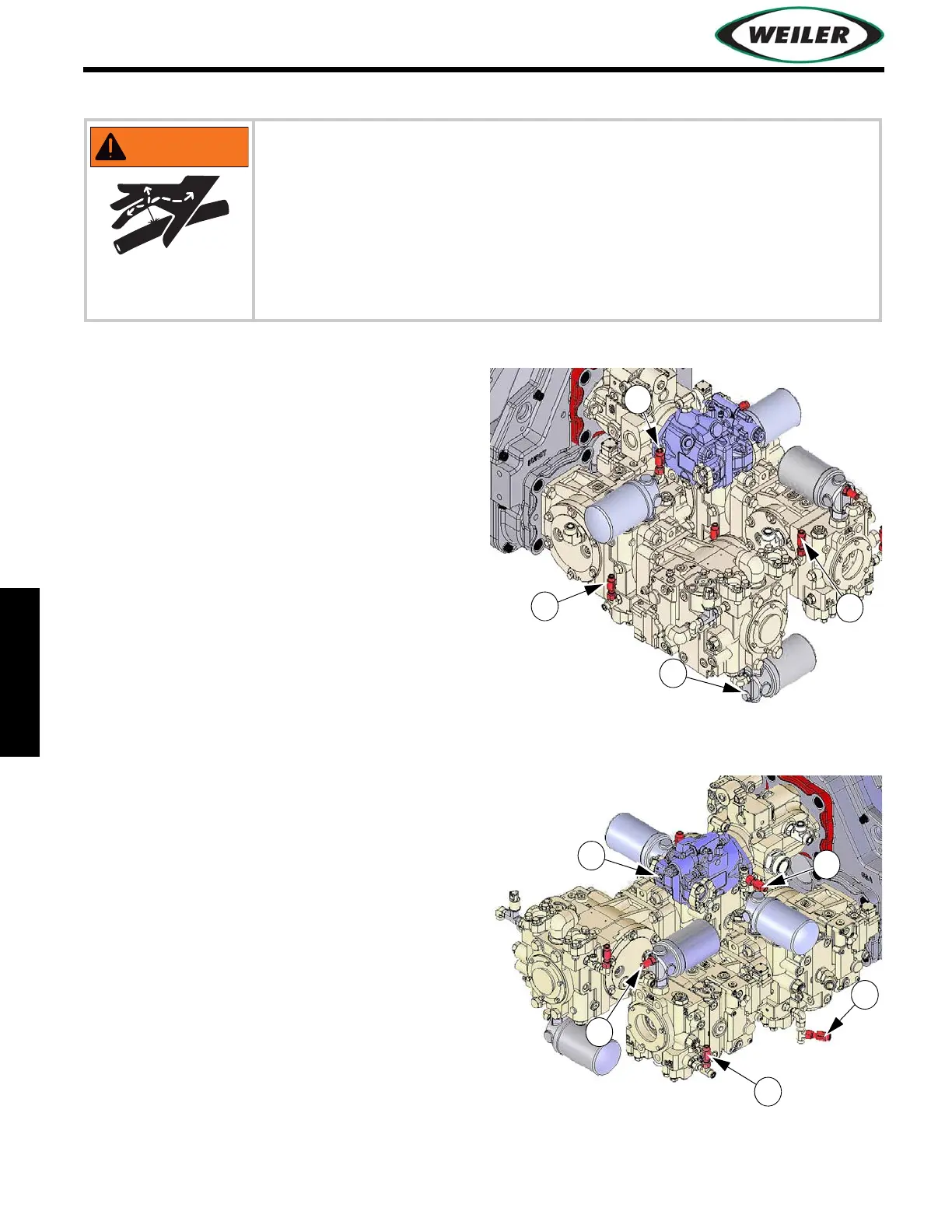

Hydraulic Pressure - Check
Storage Conveyor
(1) Charge pressure: 350 psi (2413 kPa)
(2) System pressure: 6,090 psi (42000 kPa)
Elevator Drive
(3) Charge pressure: 350 psi(2413 kPa)
(4) Elevator Drive system pressure: 6,090
psi (42000 kPa)
Ground Drive
(5) Charge pressure: 350 psi (2413 kPa)
(6) System pressure: 6,090 psi (42000 kPa)
Discharge Conveyor
(7) Charge pressure: 350 psi (2413 kPa)
(8) System pressure: 6,090 psi (42000 kPa)
Fan Pump
(9) Max fan speed: 925 rpm
3,000 psi (20684 kPa)
Auxiliary PC Pump
(10) System pressure: 2,850 psi (19650 kPa)
(not shown)
WARNING
Pressurized fluid can penetrate body tissue. Leaks can be invisible. Keep
away from any suspected leak. Relieve pressure in the hydraulic system
before searching for leaks, disconnecting hoses, or performing any other work
on the system. When searching for a pressurized leak, use an object such as a
piece of wood or cardboard. Keep hands away. When loosening a fitting
where residual pressure can exist, slowly loosen fitting until fluid begins to
leak. Wait for leaking to stop before disconnecting fitting. Tighten all
connections before re-pressurizing system. Seek immediate surgical
treatment if fluid is injected under skin.
