Weiler E1650 - Greasing Procedures

1
WEILER E1650 REMIXING TRANSFER VEHICLE
5-36
Maintenance
5
Maintenance Procedures
Machine - 10 Hour Grease
10
2
2 Fittings
11
2
2 Fittings
1
12
3
5
3
5
Located on left side of conveyor
6
5
4
12
6
5
Located on left side of dump hopper
Located on right side of conveyor
2
5
3
5
3
5
1
12
Located on right side of dump hopper
6
5
4
12
6
5
4
12
9
5
7
12
8
12
Located on left side of conveyor
9
5

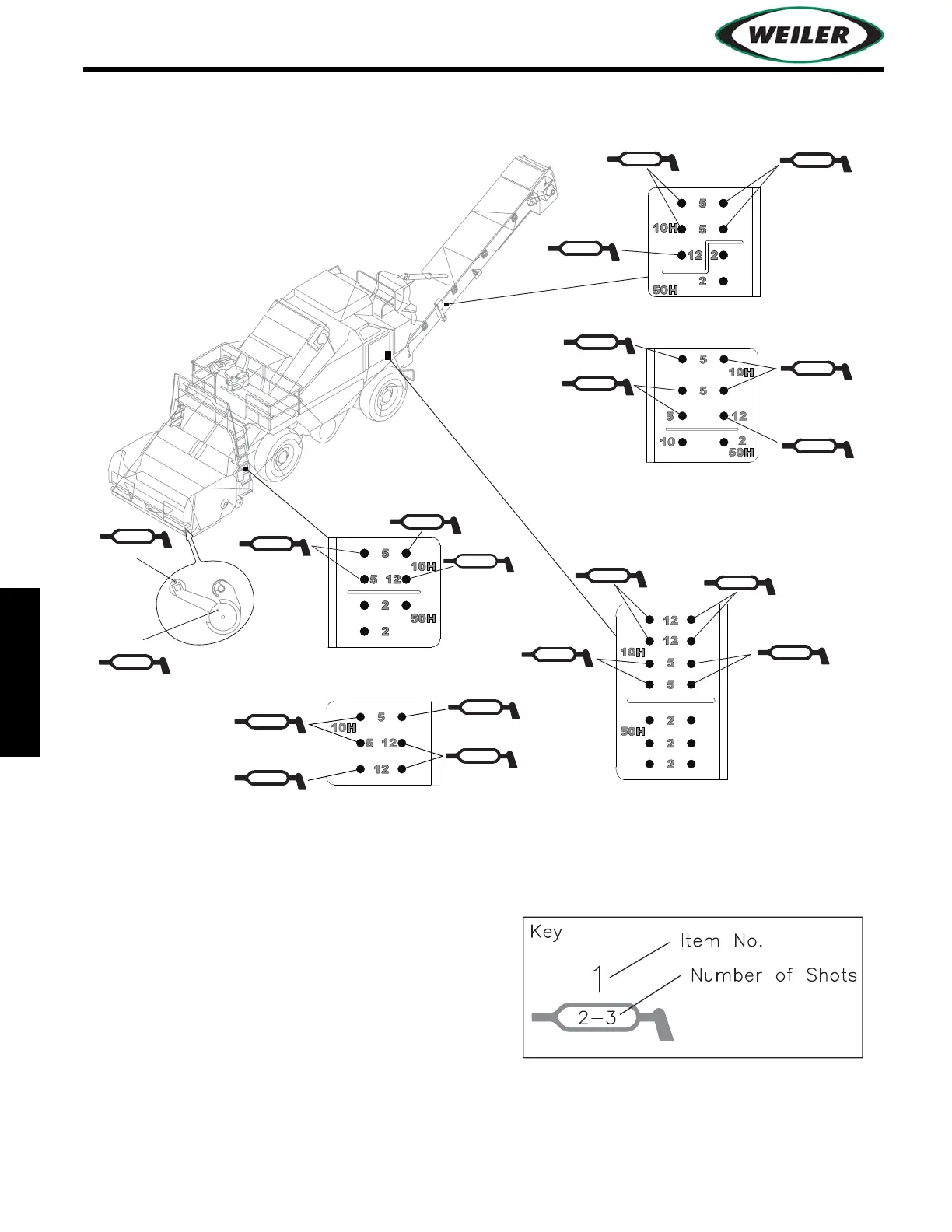

Item Description Item No.
Discharge Conveyor Footshaft Bearings . . . . 1
Discharge Conveyor Headshaft Bearings . . . . 2
Discharge Conveyor Idler Bearings . . . . . . . . 3
Elevator Footshaft Bearings - Left . . . . . . . . . 4
Elevator Footshaft Bearings - Right . . . . . . . . 5
Elevator Idler Bearings . . . . . . . . . . . . . . . . . . 6
Storage Conveyor Footshaft Bearings - Left . 7
Storage Conveyor Footshaft Bearings - Right 8
Storage Conveyor Idler Bearings . . . . . . . . . . 9
Truck Hitch Rollers . . . . . . . . . . . . . . . . . . . . . 10
Truck Hitch Extensions . . . . . . . . . . . . . . . . . . 11
