Wheel Lug Bolts - Check / Torque

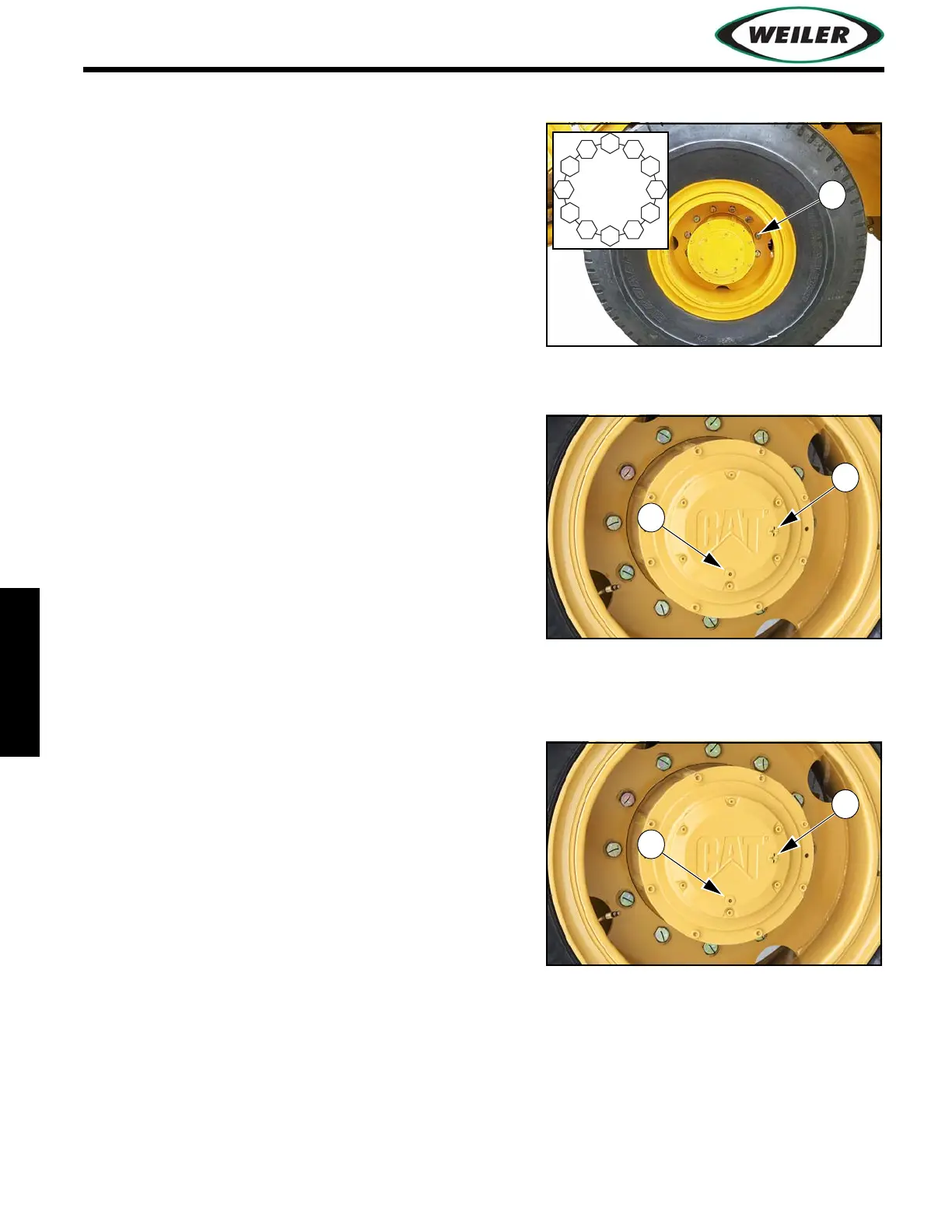

Wheel lug bolts (1) may loosen under normal operating
conditions. Torque bolts in a cross pattern to 330 ft-lb
(450 Nm).
Wheel Planetary Oil - Check
1. Position final drive with drain plug (1) at bottom
and check plug (2) positioned at 3 or 9 o’clock.
2. Remove check plug (2).
3. Check oil level of each wheel. Oil level should be at
bottom of check plug opening.
4. Add oil through check plug port.
5. Clean and install plug (2).
6. Check other three wheel planetaries.
Wheel Planetary Oil - Drain / Refill
1. Position final drive with drain plug (1) at bottom
and check plug (2) positioned at 3 or 9 o’clock.
2. To drain oil, remove drain plug (1) and allow oil to
drain into suitable container.
3. Clean and install drain plug (1).
4. Fill final drive planetary through plug (2) to bottom
of plug opening.
NOTICE: Machine must sit 45 minutes to fill rear
bearings of final drive planetary. Failure to wait 45
minutes may result in bearing failure from low oil level.
5. Check oil level of each wheel. Oil level should be at bottom of check plug opening.
6. Add oil through check plug port.
7. Clean and install plug (2).
8. Drain and refill other three wheel planetaries.
