WEILER E1650 REMIXING TRANSFER VEHICLE
2-4
Machine Controls
2
Machine Controls

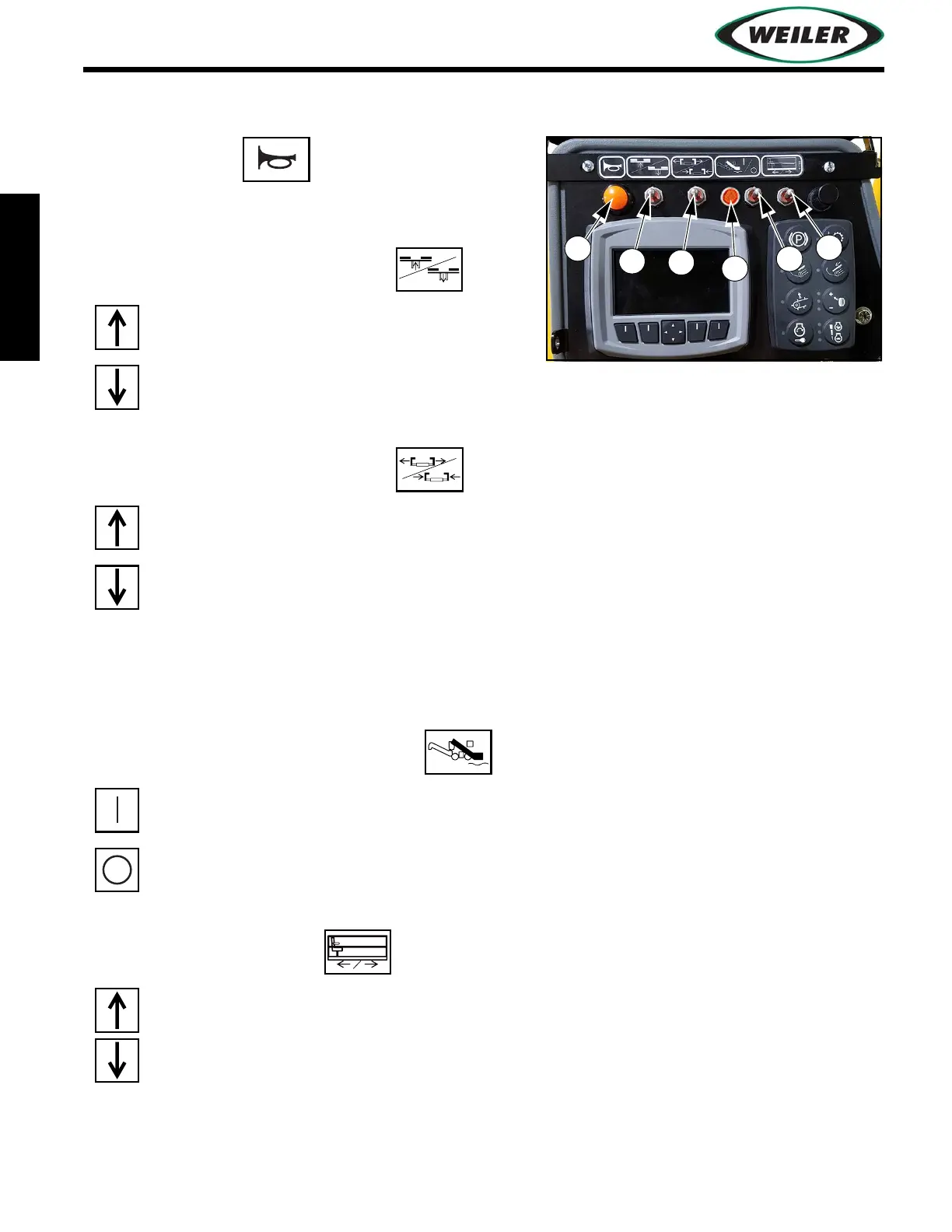

Center Control Panel
(1) Horn Button
Press and hold to sound horn.
(2) Push Roller Extension Switch
(3) Truck Hitch Switch (Optional)
(4) Float Indicator Lamp (Optional)
Illuminates when Windrow Float is on.
(5) Windrow Float Switch (Optional)
(6) Platform Shift Switch
Push up to extend push rollers.
Push down to retract push rollers.
Push up to release truck wheels.
Push down to capture truck wheels.
Push up to turn float on.
Push down to turn float off.
Push up to shift platform left.
Push down to shift platform right.
2
3
5
4
1
6
