Dump Hopper Control Stations

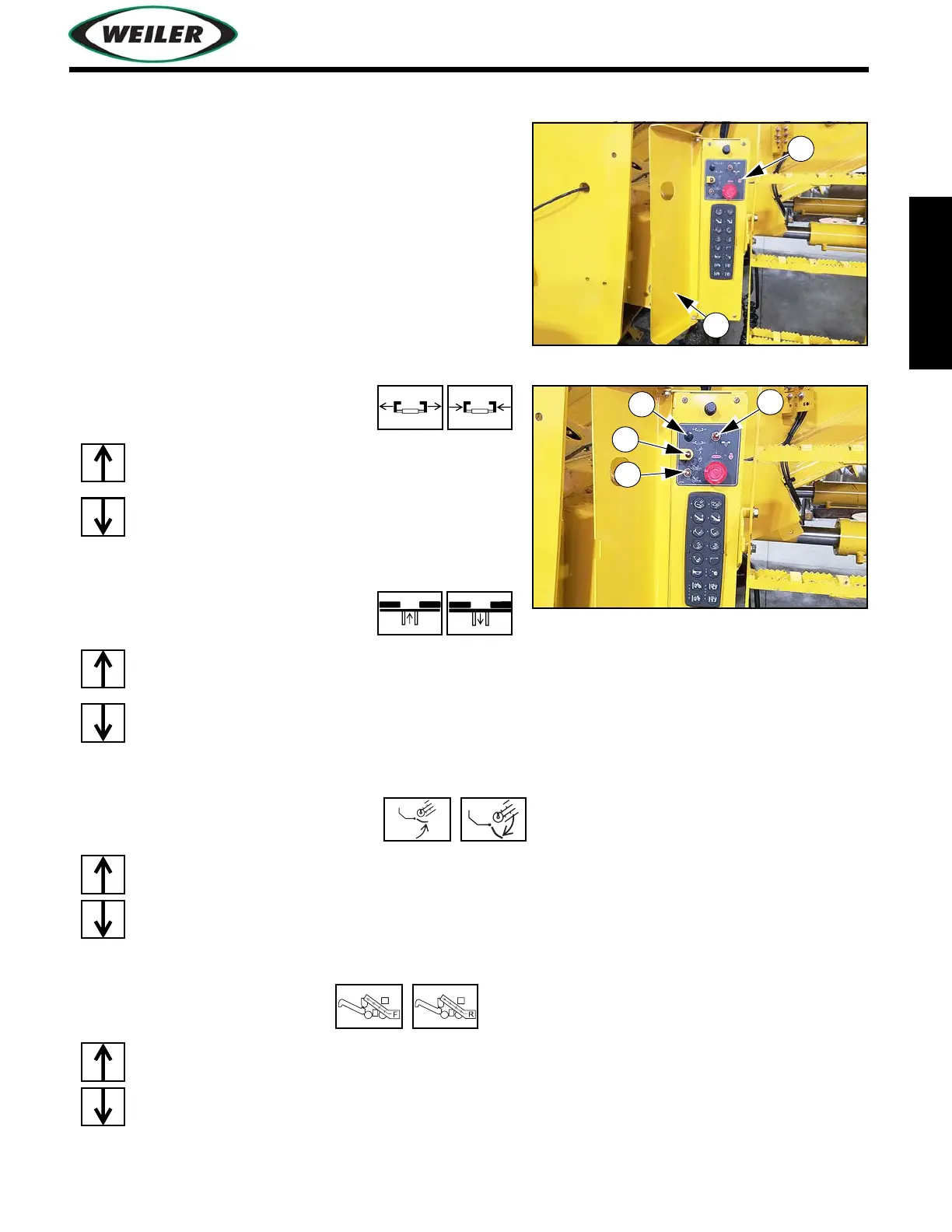

Dump hopper control stations (A) are provided at rear of
dump hopper, on left and right sides of machine.
Dump hopper control stations are equipped with a light
for low-light use and a lockable vandal cover (B) to deter
vandalism.
(1) Truck Hitch Switch (Optional)
(2) Push Roller Extension Switch
(3) Hopper Cleanout Door Switch
(4) Manual Elevator Switch
Push up to release truck wheels.
Push down to capture truck wheels.
Push up to extend push rollers.
Push down to retract push rollers.
Push up to close hopper cleanout door.
Push down to open hopper cleanout door.
Push up for forward.
Push down for reverse.
