WEILER E1650 REMIXING TRANSFER VEHICLE
2-14
Machine Controls
2
Machine Controls

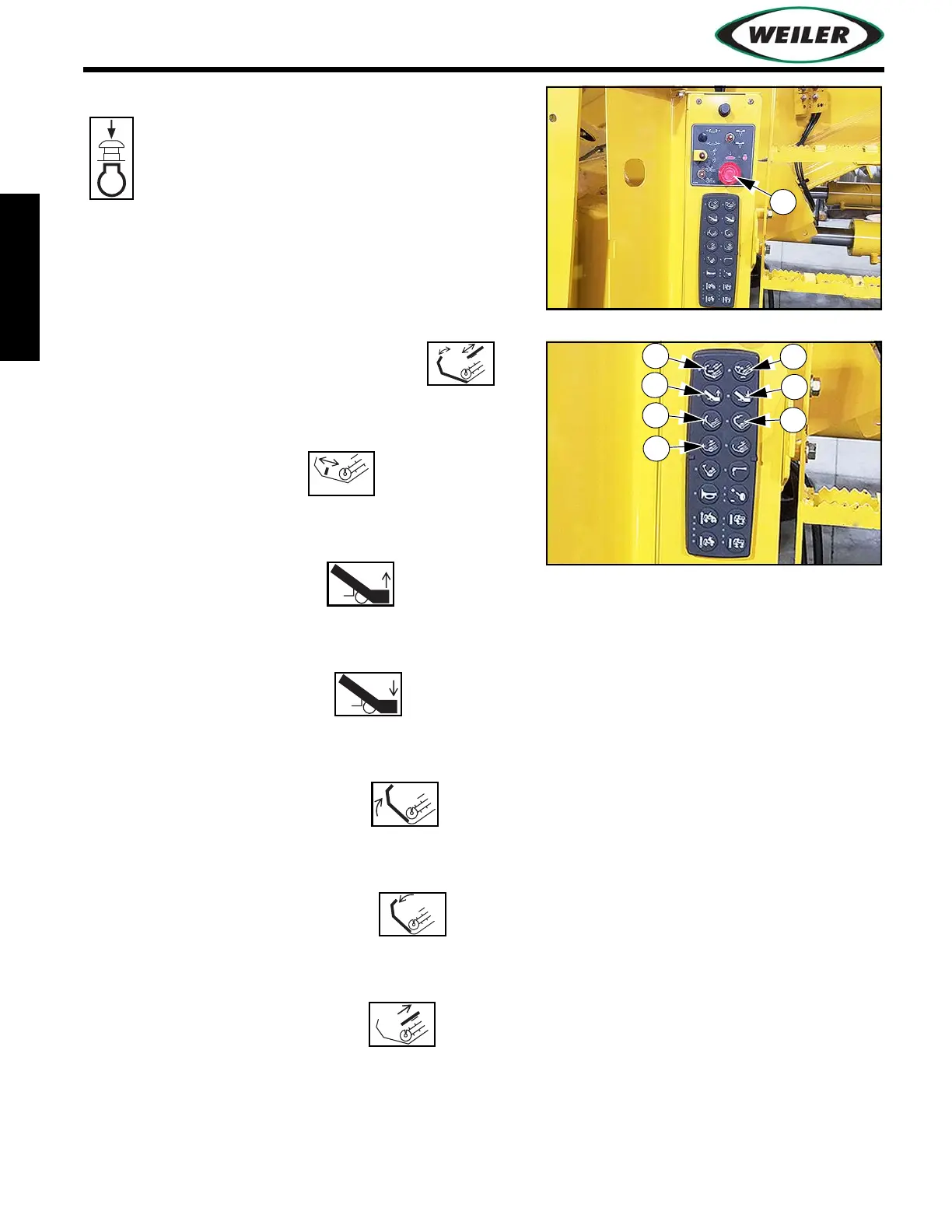

(5) Engine Stop Button
(6) Auto Hopper Dump/Baffle Button
Press and release to cycle auto hopper/baffle on/off.
(7) Dump Assist Button
Press and release to cycle hopper scraper on/off.
(8) Elevator Raise Button
Press and hold to raise elevator.
(9) Elevator Lower Button
Press and hold to lower elevator.
(10) Hopper Dump Raise Button
Press and hold to raise dump hopper.
(11) Hopper Dump Lower Button
Press and hold to lower dump hopper.
(12) Hopper Baffle Open Button
Press and hold to open hopper baffle.
Press to stop engine quickly.
Pull to enable engine startup.
5
STOP
11
6
8
7
9
10
12
AUTO
AUTO
