6. Remove the spacer plate from the device.
Result The device is removed from the portable unit.
7.5.5 Removing the device from LIFE-BASE 1 NG and
LIFE-BASE 4 NG (with protective hoops)
Applies to MEDUMAT Transport
Required auxiliary
equipment
Screwdriver with crosshead PH1
Requirement Disassembly is prepared (see "7.5.1 Preparing disassembly",
page 123).
1. Place the portable unit and device on a flat, firm surface.

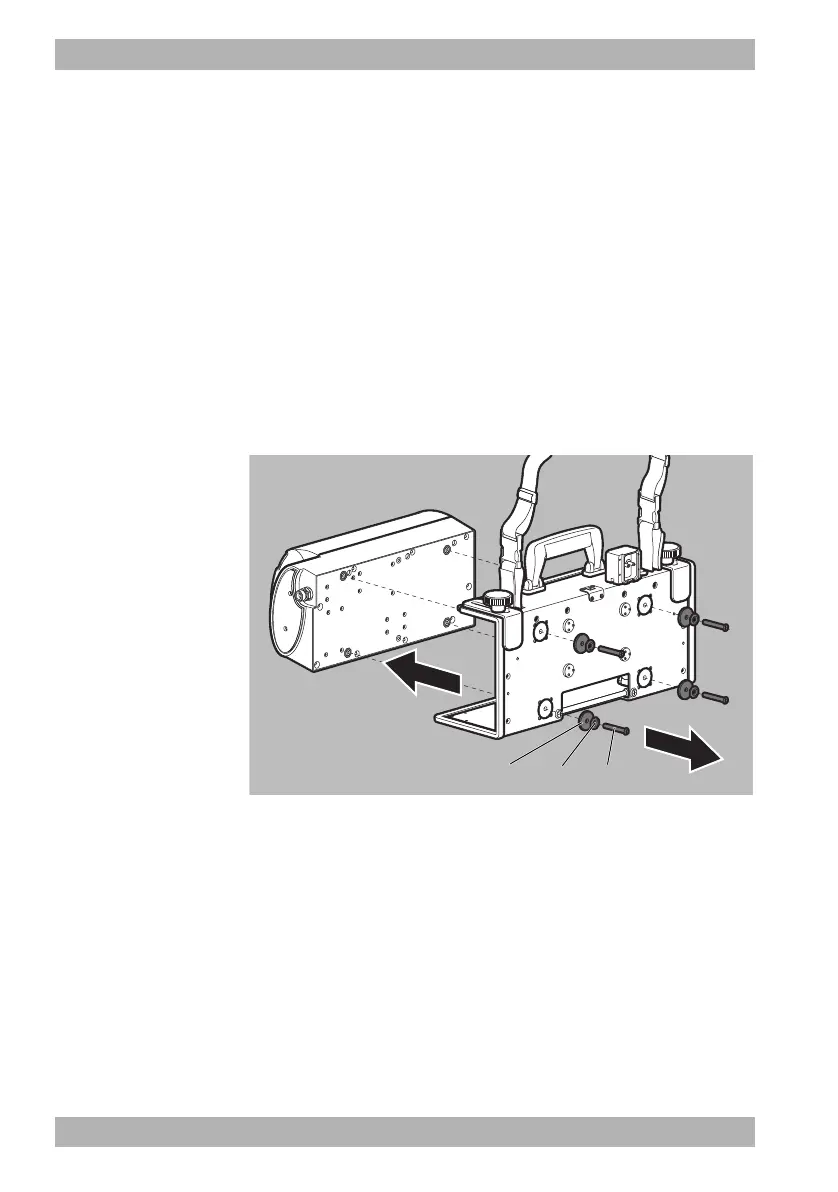

2. Undo 4 screws 103, 4 protective disks 104 and 4 plain
washers 106 from the portable unit.
3. Remove the device from the portable unit.
