WM 68331 04/2021
LIFE-BASE EN 53
4 Assembly
4.5.5 Attaching devices to LIFE-BASE 1 NG XL,
LIFE-BASE 3 NG and LIFE-BASE 4 NG
(without protective hoops)
Attaching the ventilator
Applies to • MEDUMAT Standard
2
• MEDUVENT Standard
• MEDUMAT Easy
CPR
Required auxiliary
equipment
Screwdriver with crosshead PH1
1. If available: Fasten the shoulder strap to the portable unit
(see "4.3 Attaching the belt to the portable unit", page 36).
2. With MEDUMAT Standard
2
and MEDUMAT Easy
CPR
:

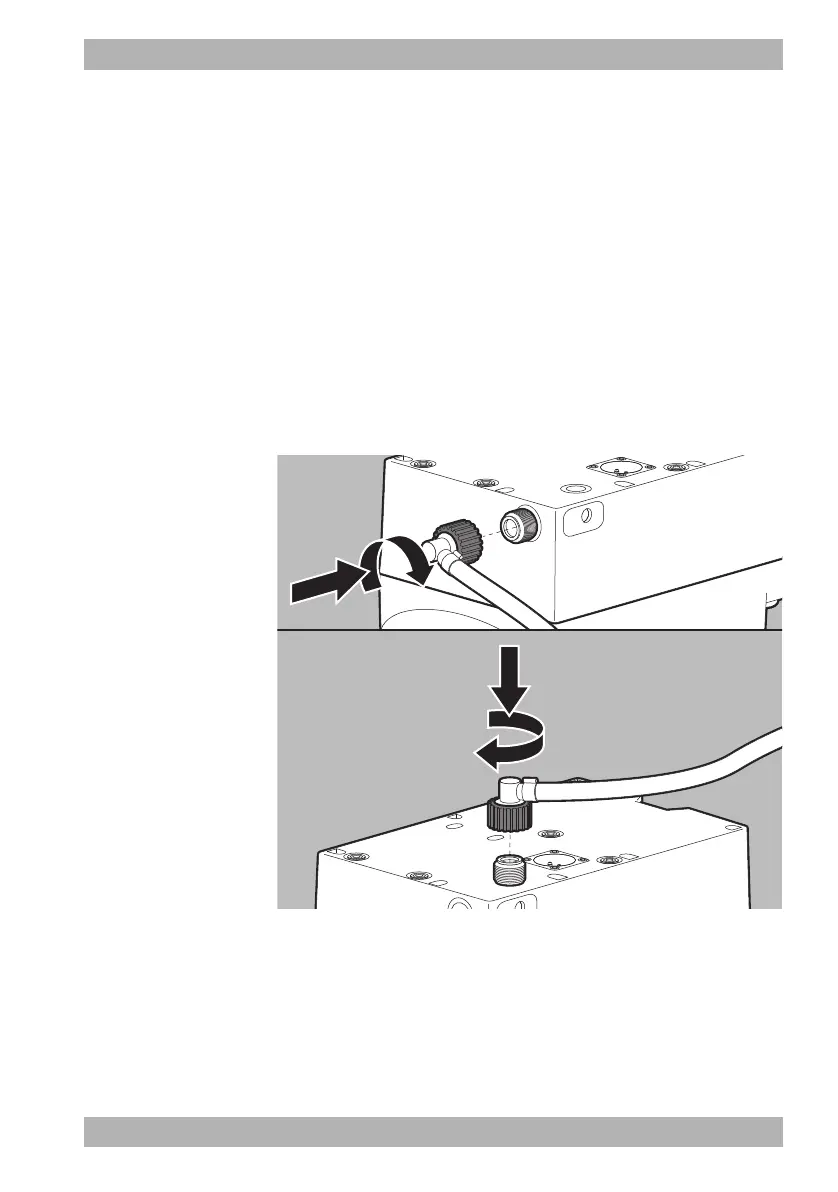

Connect the low-pressure hose to the compressed gas
connection on the side or on the rear of the ventilator.
3. With MEDUMAT Standard
2
: Position the device with
the control panel membrane facing downwards.
