9 Servicing / Cleaning
Training manual Convotherm 4 123

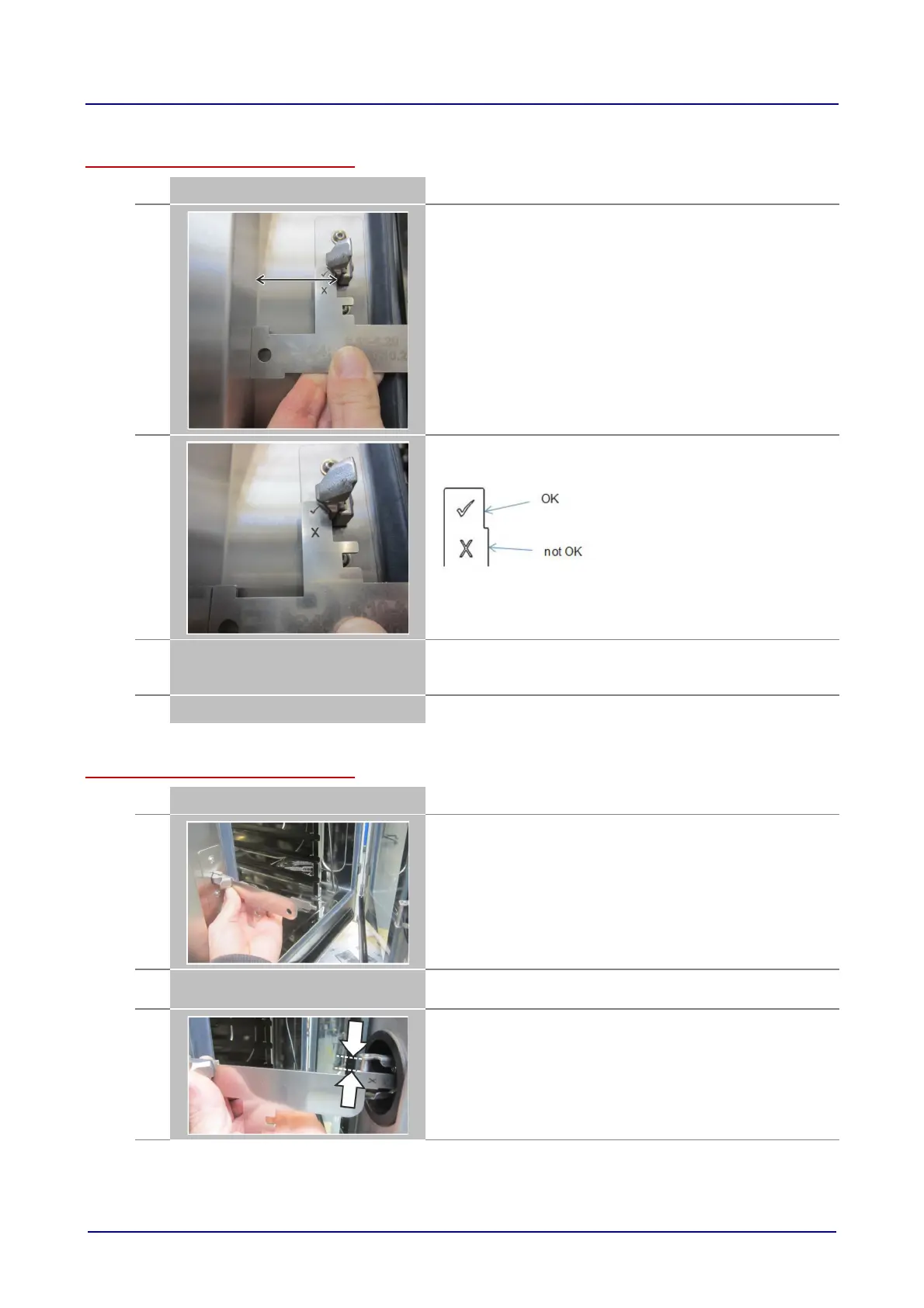

Adjusting the door catch on table-top units: vertical position
1.
Open the appliance door.
2. Place the adjustment gauge for table-top units in the position
shown in the illustration.
3.
Check that the catch fastener lies in the OK range of the ad-
justment gauge for table-top units.
4.
If this is not the case, undo the two fixing screws on the door
catch unit and move the unit until the adjustment gauge lies in
the OK range.
5.
Re-tighten the fixing screws.
Adjusting the door catch on table-top units: horizontal position
1.
Open the appliance door.
2.
Place the adjustment gauge for table-top units in the position
shown in the illustration.
Make sure that the adjustment gauge sits flush with the top of
the door catch and lies flat against the catch.
3.
Slowly close the appliance door until the catch roller rests
against the tip of the adjustment gauge.
4.
Check the gap between the top edge of the catch roller and the
adjustment gauge.
The gap should equal at least 5 mm here.
