eikon e1s
Service and repair guide

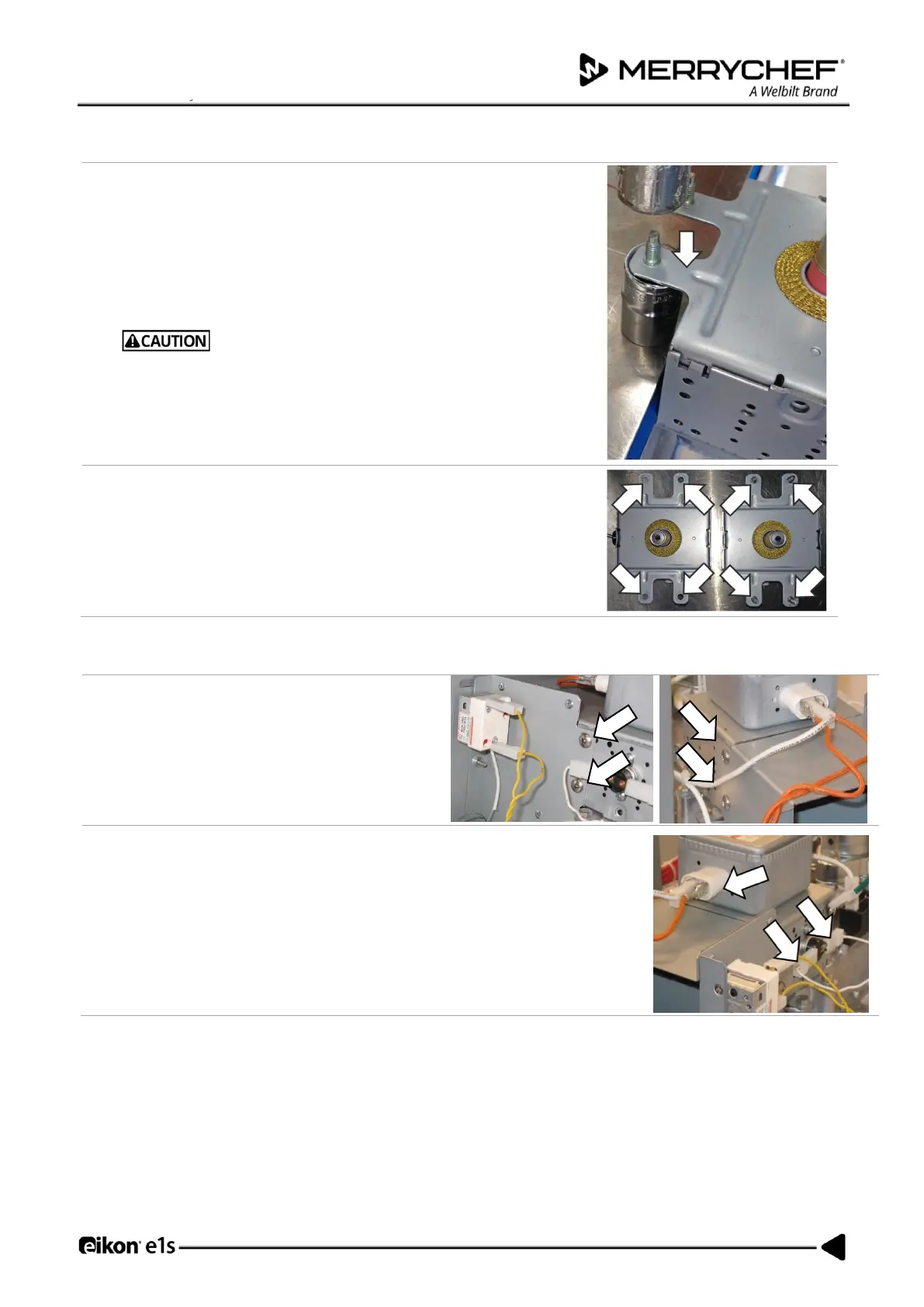

Preparing a spare magnetron
1.
The spare magnetron comes with four pressed bolts. Remove the bolts
before fitting the magnetron to the oven.
Note:
• The bolts can be removed by knocking them out of the tabs with a
hammer.
• Ensure the tabs do not get bent. Secure them by laying them upon a
piece of tube while pushing out the screws.
Wear personal protective equipment to protect your fingers when using
the hammer.
Comparison of spare magnetrons with (right) and without (left) pressed bolts.
Removing the magnetron
1.
Unfasten the pozidriv screws on the right side of
the cooling duct.
Unfasten the pozidriv screws on the left side of
the cooling duct.
2.
Disconnect the orange and white cables from
the magnetron body.
