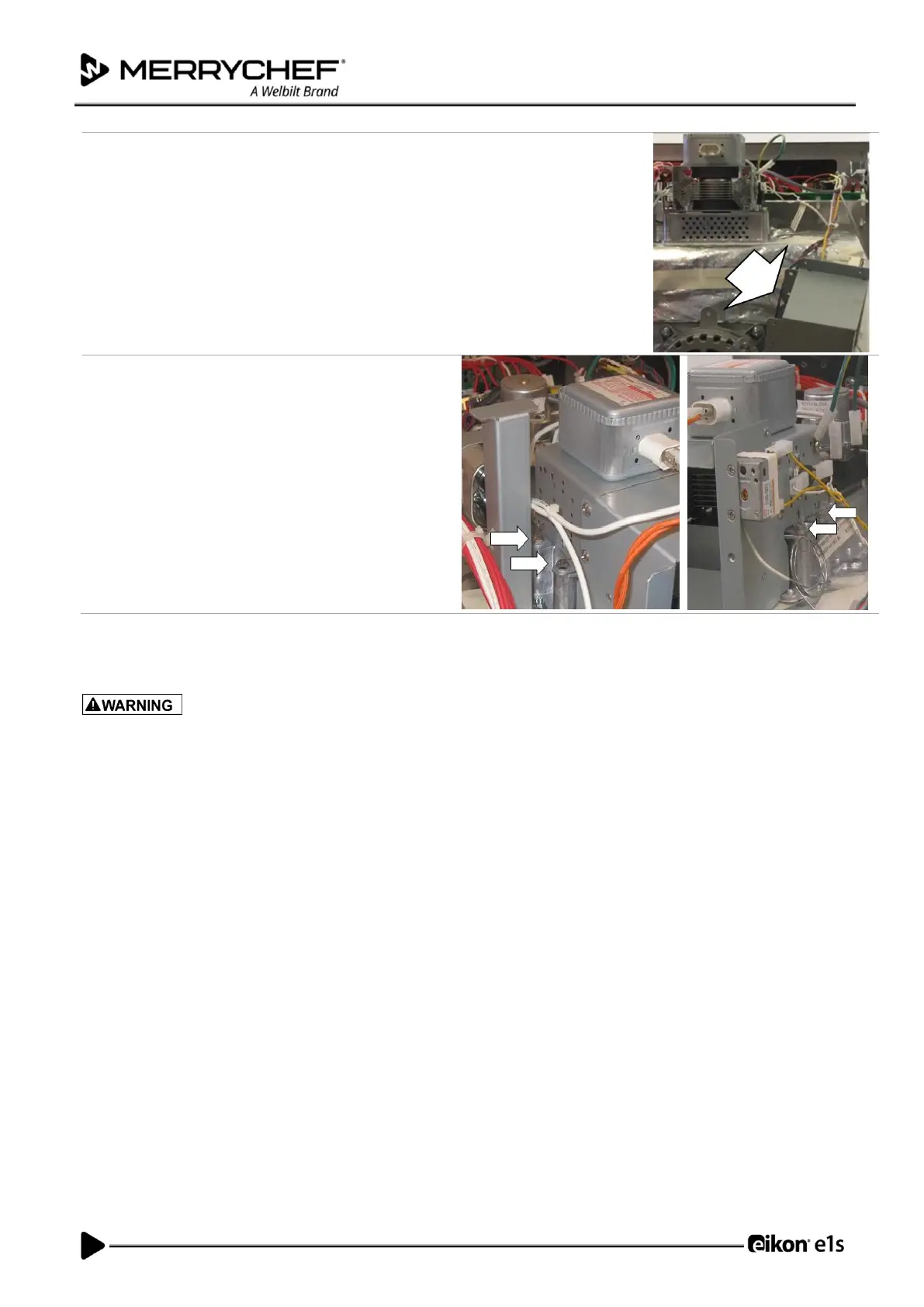

eikon e1s
Service and repair guide
3.
Carefully remove the cooling duct so as not to
pull on the cables.
4.
Remove the four M8 nuts from the magnetron
base.
The magnetron can then be removed by lifting
the magnetron body.
Fitting a magnetron
Follow the steps in the reverse order to fit a spare magnetron.
• Ensure nothing becomes trapped under the magnetron mounting points (e. g. insulation material) while fitting the
magnetron. This can lead to microwave leakage.
• If the electric connections have not been restored properly this may lead to malfunction/damage of the oven.
