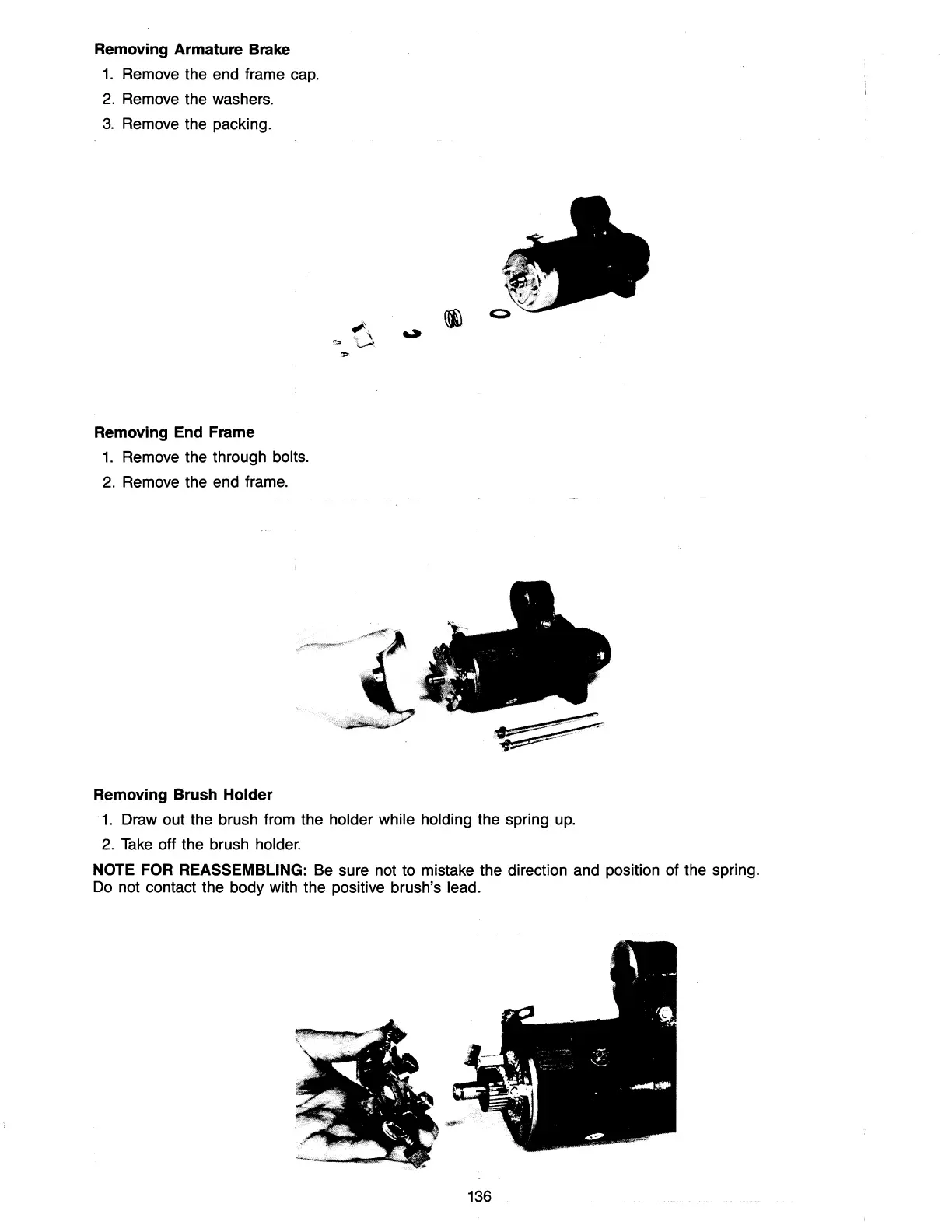

Removing Armature Brake
1. Remove the end frame cap.
2. Remove the washers.
3. Remove the packing.
Removing End Frame
1. Remove the through bolts.
2. Remove the end frame.
Removing Brush Holder
1. Draw out the brush from the holder while holding the spring up.
2.
Take off the brush holder.
NOTE FOR REASSEMBLING: Be sure not to mistake the direction and position of the spring.
Do not contact the body with the positive brush's
lead.
